DS18's SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2000.4D at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks. The SXE-2000.4D offers you the ability to shape your systems audio to match your personal preferences. Its selectable crossover, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2000.4D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style. Thanks to its Class D circuit design the SXE-2000.4D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2000.4D's staggering performance, delivering 320W x 2 CH bridged at 4-ohms, 160W x 4 CH at 2-ohms, and 100W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build. The SXE-2000.4D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80? thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.

Features :

• Full Range Amplifier
• 4 Channel
• Class D
• 2 ~ 4 Ohm Stable
• 4 X 100 Watts @ 4 Ohm
• Compact Design

Specifications :

• Total Watts (Peak) : 2000W
• RMS Power @ 4 Ohm : 4 x 100W
• RMS Power @ 2 Ohm : 4 x 160W
• RMS Power @ 1 Ohm : N/A
• RMS Power @ 4 Ohm Bridge : 2 x 320W
• Audio
• Frequency Response : 10Hz-20KHz
• Signal to Noise Ratio : 90dB
• Efficiency @ 4ohm : 0.9
• Damping Factor : 200
• Input Impedance : 20kohm
• Channel Separation : 60dB
• Total Harmonic Distortion (THD) : 0.001
• Low Level Input Range : 200mV-5V
• High Level Input : No
• Selectable X-Over : HPF/FULL/LPF
• X-Over Filter Range : 40HZ-2KHZ
• Bass Boost Range : No
• Bass Boost Frequency : No
• Infrasonic Filter : No
• Phase Selector : No
• Features
• Amplifier Class : Digital (D)
• Amplifier Type : Stereo Full Range
• Number of Channels : 4
• Minimum Impedance : 2 Ohm Stereo / 4 Ohm Bridge
• Led Indicator : Power/Protect/Clip
• Power Input Terminal Size : 4Ga
• Fuse Size : 1 x 40A (40A)
• Remote Level Control : No
• Cooling Fan : No
• Voltmeter : No
• Thermal Protection : Yes
• Over-Load Protection : Yes
• DC Output Protection : Yes
• Short Circuit Output Protection : Yes
• Voltage Input Protection : Yes (16.5v)
• Clipping Protection : Yes
• Body Color / Finish : Red / Black Brushed Aluminum
• Measurement
• Overall Length : 6.4" / 164.3mm
• Overall Wide : 5.5" / 140mm
• Overall Height : 1.8" / 48mm
• Heatsink Length : 5" / 127mm
• Extra Features
• Compact Size to easy Installation for Any Applications : Yes

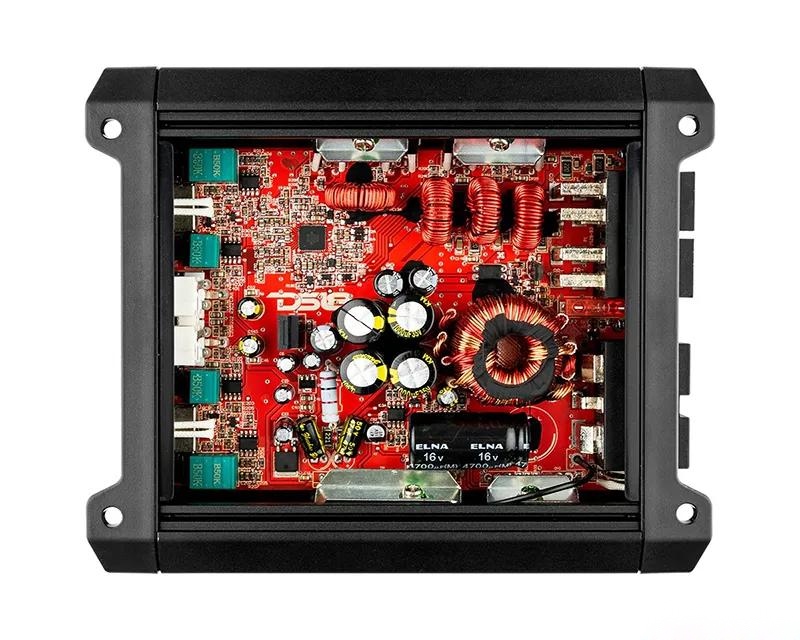

• Stable/Reliable Two or Four Layers Traces PCB Design : Yes
• Surface Mount Component Technology : Yes
• Quality Control Verification using Audio Precision Instruments : Yes
• Remote Level Control with Clip Indicator : No

Install Instructions :

• For Instructions CLICK HERE
