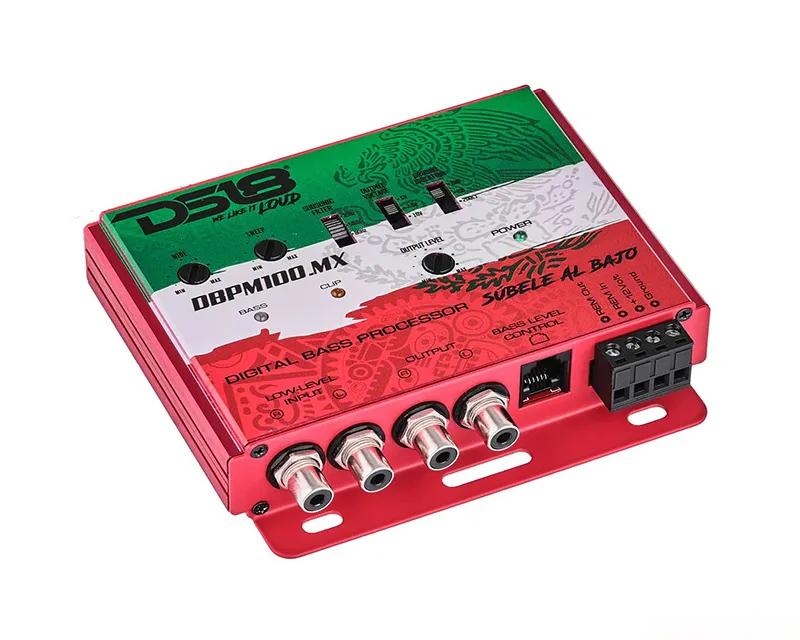

Upgrade your car audio system with DS18's DBPM100.MX to get LOUD for la cultura! Although sleek and compact, DS18's DBPM100.MX is equipped with a range of impressive features. The fully adjustable bass processor enhances low frequencies from the original source, allowing you to fine tune your bass with authority. Controlling your bass has never been easier with the dual knob dash mount remote control included with the DBPM100.MX. Adjusting the settings to suit your preferences is effortless, giving you complete control over your sound. The subsonic filter helps eliminate unwanted frequencies (adjustable at 35Hz, 50Hz, and 80Hz), ensuring clean and distortion-free output. Designed for convenience and durability, DS18's DBPM100.MX is equipped with a PCB featuring an anti-corrosion coating. This ensures long-lasting performance even in harsh conditions. The LED indicators provide visual feedback on power, bass enhancement, and clipping, making it easy to monitor and optimize your sound. With an operating voltage of 8-17V and low power consumption of 0.24A, this digital bass processor is efficient and reliable. Its compact size allows for easy installation in any application, making it adaptable to any existing system. Experience the power of enhanced bass with DS18's DBPM100.MX and vive la vida en voz alta!

Features :

• Digital Bass Restoration Processor W/ Mexico Design
• 2 Channel Preamp Input / Output
• Subsonic Filter / Output Voltage / Ground Iso
• Bass / Power / Clip LED

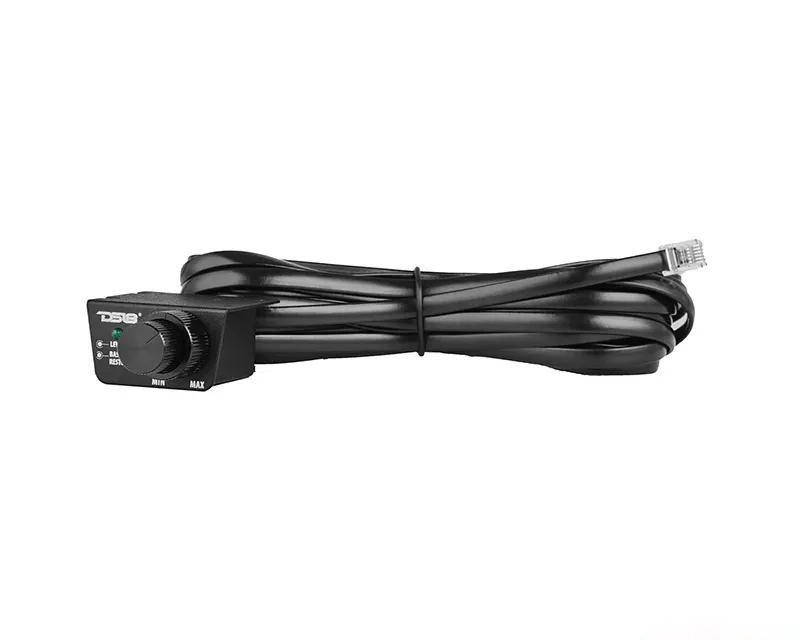

• Remote Level Control w/ Clip LED
• Compact Design

Specifications :

• Operating Voltage : 8-17V
• Power Consumption : 0.24A
• Recommended Fuse Rating : 1A
• Power Input Terminal Size : 16ga
• LED Indicator : Power / Bass Enhancer / Clip
• Ground Isolation Switch : Yes (GND/ISO/200?)
• Hi-Level Speaker Input : No
• Auto Turn-on Function : No
• Remote Turn-on (Input / Output) : Yes
• Remote Level Control : Yes (Bass Enhancer)
• RCA Connector Type : Tiffany (Silver)
• Housing Material : Aluminum
• Body Color / Finish : Red/Green/White (Mexico Theme)
• Audio Specifications
• Frequency Response : 10Hz-20kHz
• S/N Ratio : 120dB
• THD : 0.000022
• Input Sensitivity (Low-Level) : <10V
• Input Sensitivity (Hi-Level) : N/A
• Input Impedance : 20Kohms
• Output Voltage : Selectable (5V/7.5V/10V)
• Output Impedance : 100ohms
• Balanced Input Noise Rejection : >60dB
• Stereo Separation : >80dB
• Crossover Section & Bass Processor
• Subwoofer LPF Frequency Cut-off : No (Full Range Signal)
• Subwoofer Infrasonic Frequency Cut-off : Selectable (35/50/80Hz)
• Gain : 0~8.8V
• Center Frequency (Sweep) : 75Hz~120Hz
• Q Factor (Wide) : 1~3
• Extra Features
• Compact Size to easy Installation for Any Applications : Yes
• Surface Mount Component Technology : Yes
• Quality Control Verification using Audio Precision Instruments : Yes
• Remote Level Control with Clip Indicator : Yes
• Measurements
• Overall Length : 4.72" / 120mm
• Overall Width : 4.4" / 113mm
• Overall Height : 1" / 26mm

Install Instructions :

• For Instructions CLICK HERE
