DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection.

Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers.

Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.

Specifications

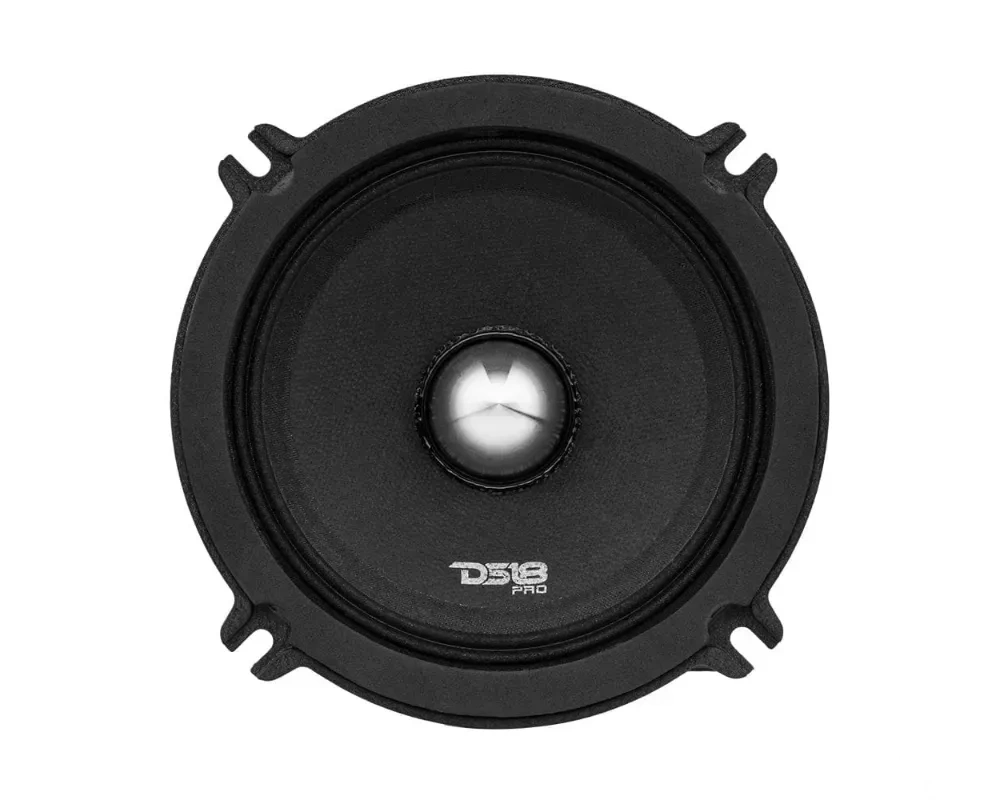

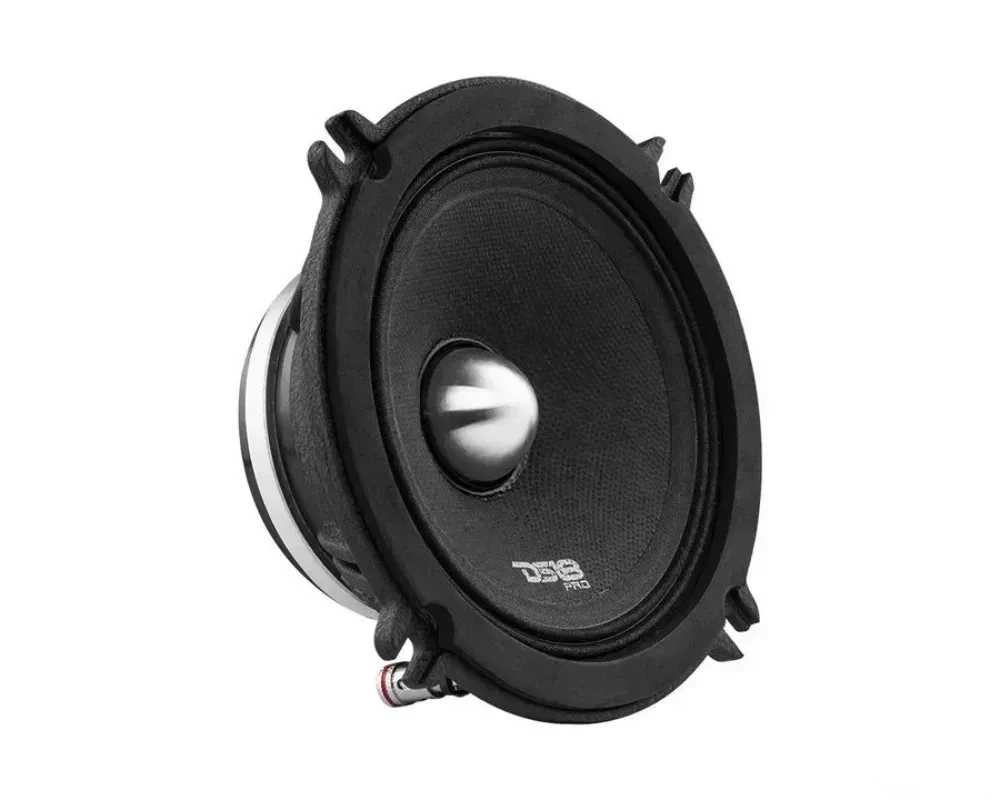

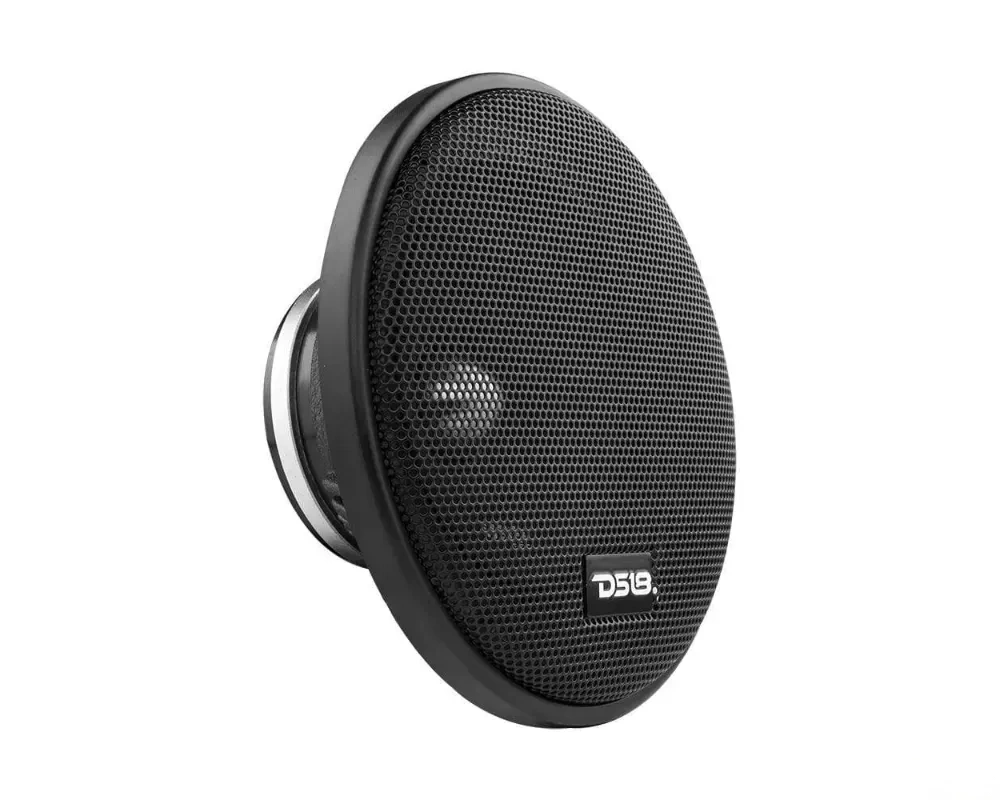

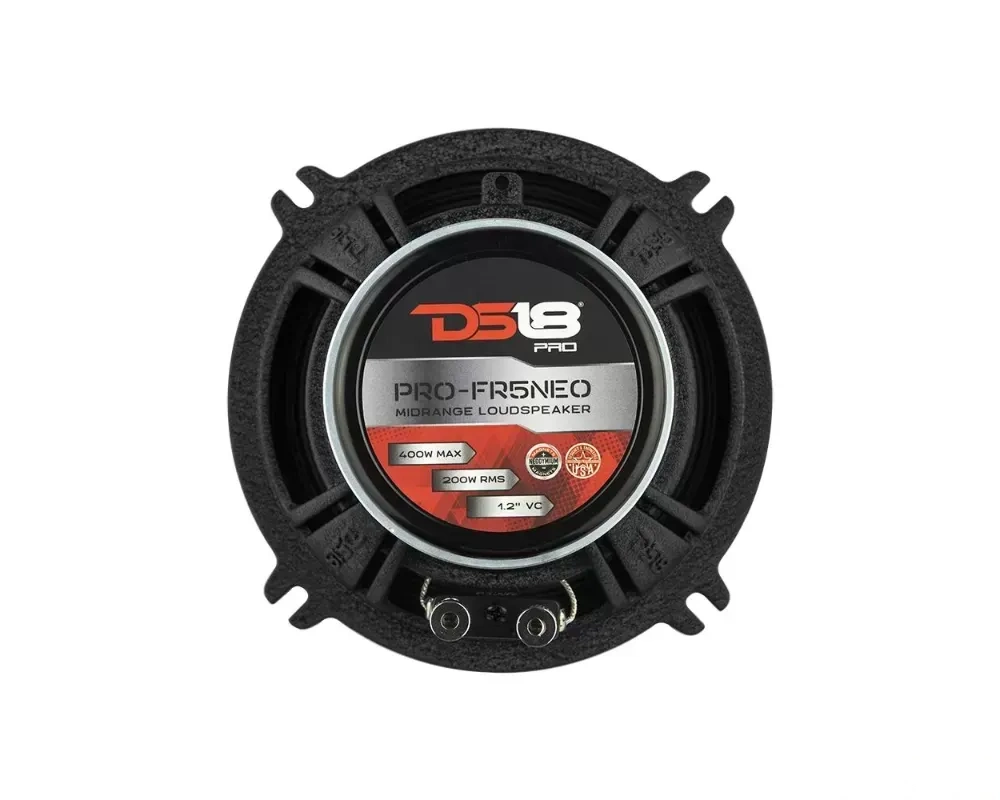

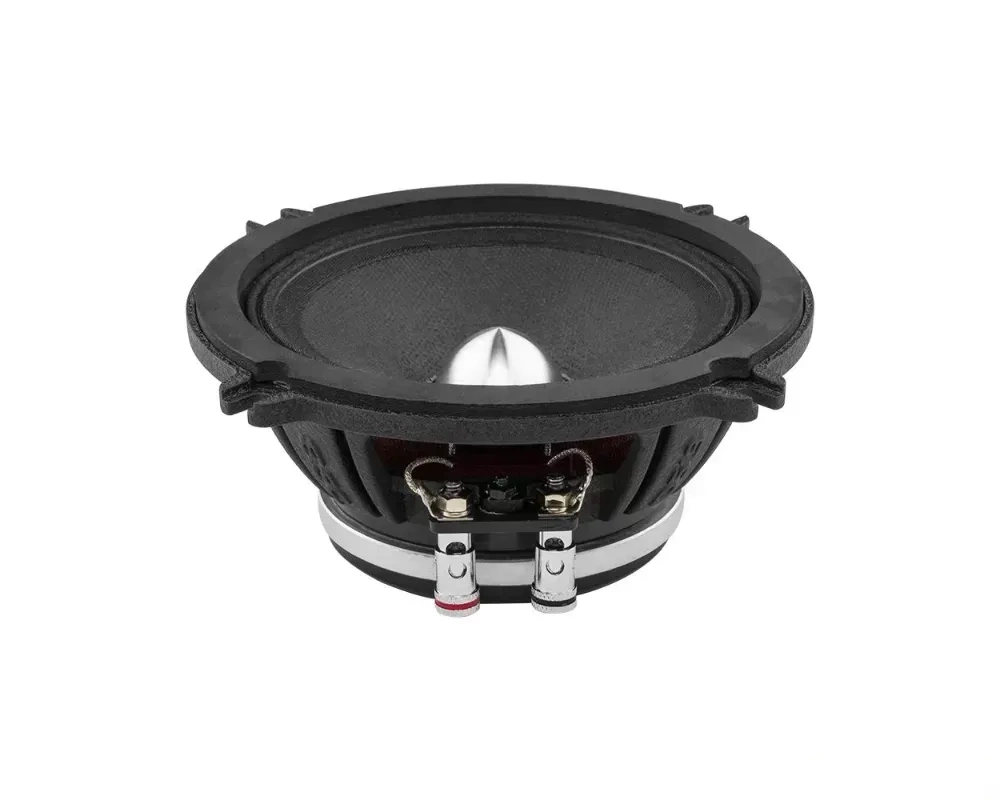

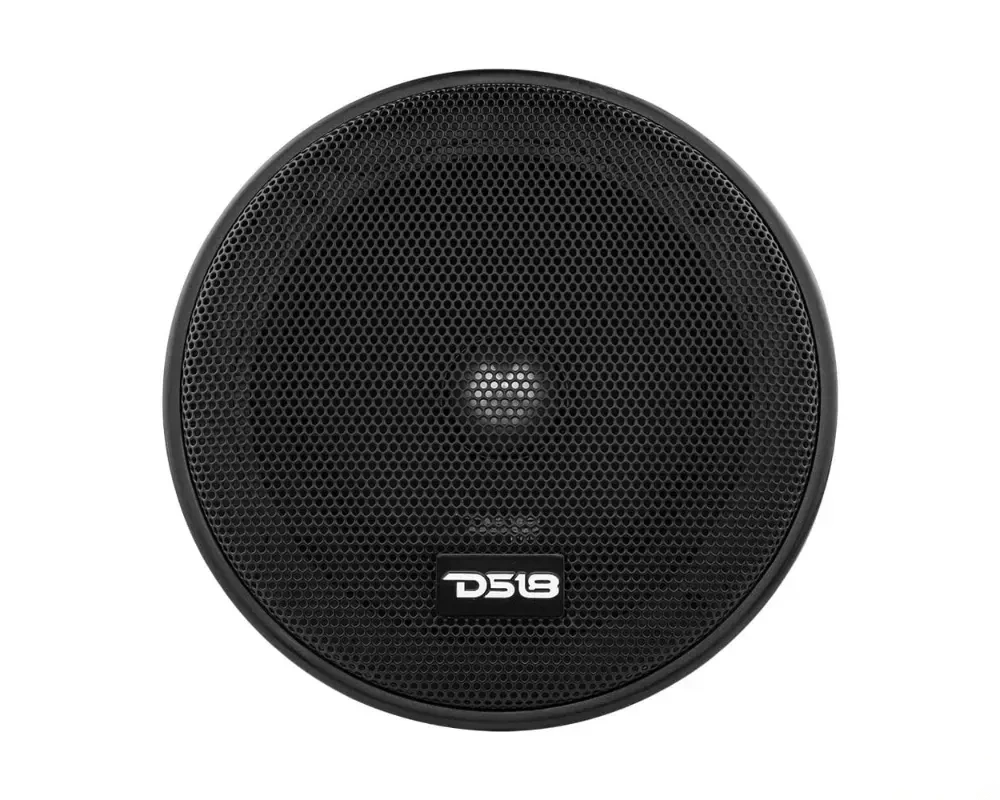

• Model: PRO-FR5NEO
• Type: Full Range Loudspeaker with Bullet
• Size: 5.25 inch
• RMS Power: 200W
• MAX Power: 400W
• Frequency Response: 242Hz - 13.6KHz
• Impedance: 4 Ohm
• Sensitivity: 94.6dB

Materials

• Surround: Cloth Edge
• Frame: Aluminum
• Cone: Non-Pressed Paper Cone
• Magnet: Neodymium
• Voice Coil Wire: KCCAW 2 Layer

Diameters

• Voice Coil Size: 1.2 inch
• Magnet Size: NEO
• Mounting Depth: 1.74 inch (44mm)
• Cut-Out Dimension: 4.65 inch (118mm)

Install Instructions:

• For Instructions CLICK HERE!
