During the focused R & D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/voceteo audiophiles.

Therefore, DS18 created that PRO audio line, which features a wide variety of midranges the produce concert-like sounds that will knock the wind out of you!

Specifications

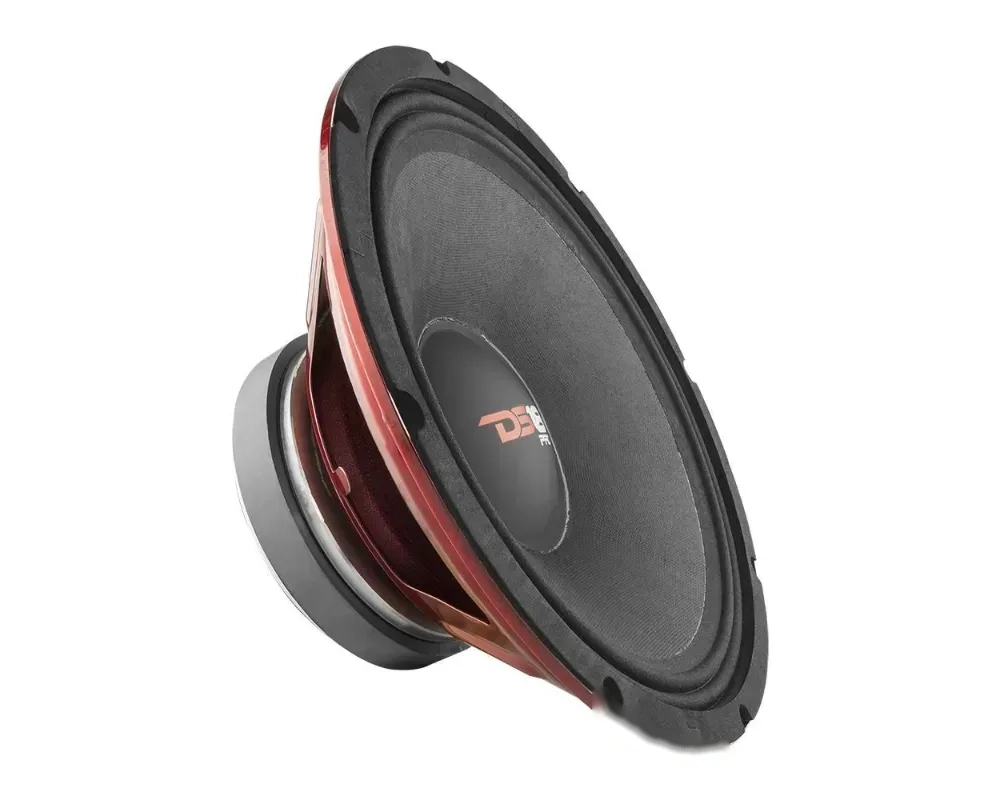

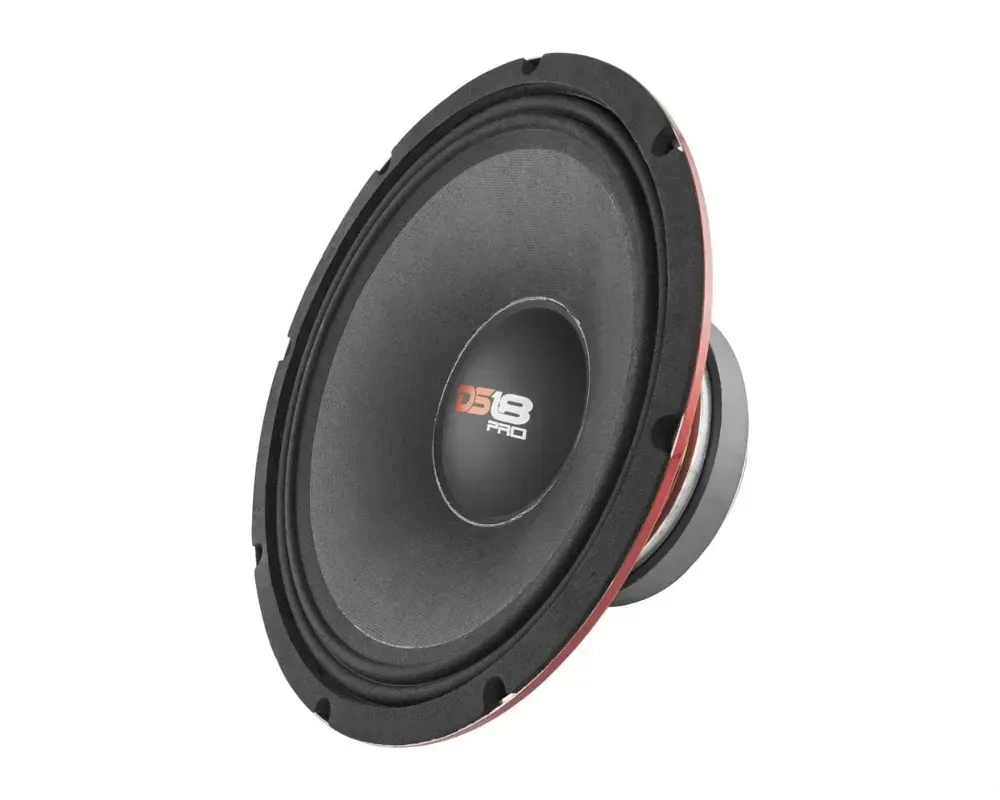

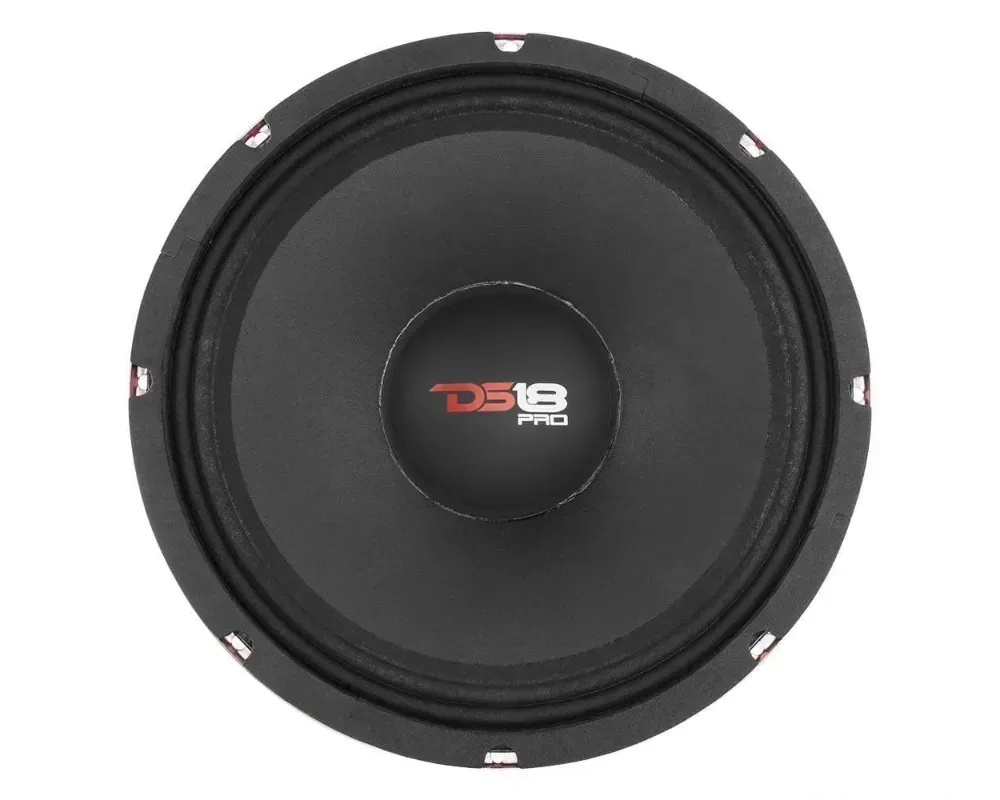

• Model: PRO-X12M
• Type: Midrange Loudspeaker
• Size: 12 inch
• RMS Power: 450W
• MAX Power: 900W
• Frequency Response: 63.5Hz-11.3KHz
• Impedance: 8 Ohm
• Sensitivity: 97.5dB

Materials

• Surround: Cloth Edge
• Frame: Red Steel Basket
• Cone: Non-Pressed Paper Cone
• Magnet: Ferrite
• Voice Coil Wire: CCAR

Diameters

• Voice Coil Size: 2.5 inch
• Magnet Size: 60 oz
• Mounting Depth: 5.35 inch (126mm)
• Cut-Out Dimension: 11.22 inch (285mm)

Parameters

• Vas 23.78 LTR
• Xmax 10.5
• Fs 64.6 Hz
• Qms 2.2
• Qes 0.485
• Qts 0.392
• Re 3.2 Ohms

Install Instructions:

• For Instructions CLICK HERE!
