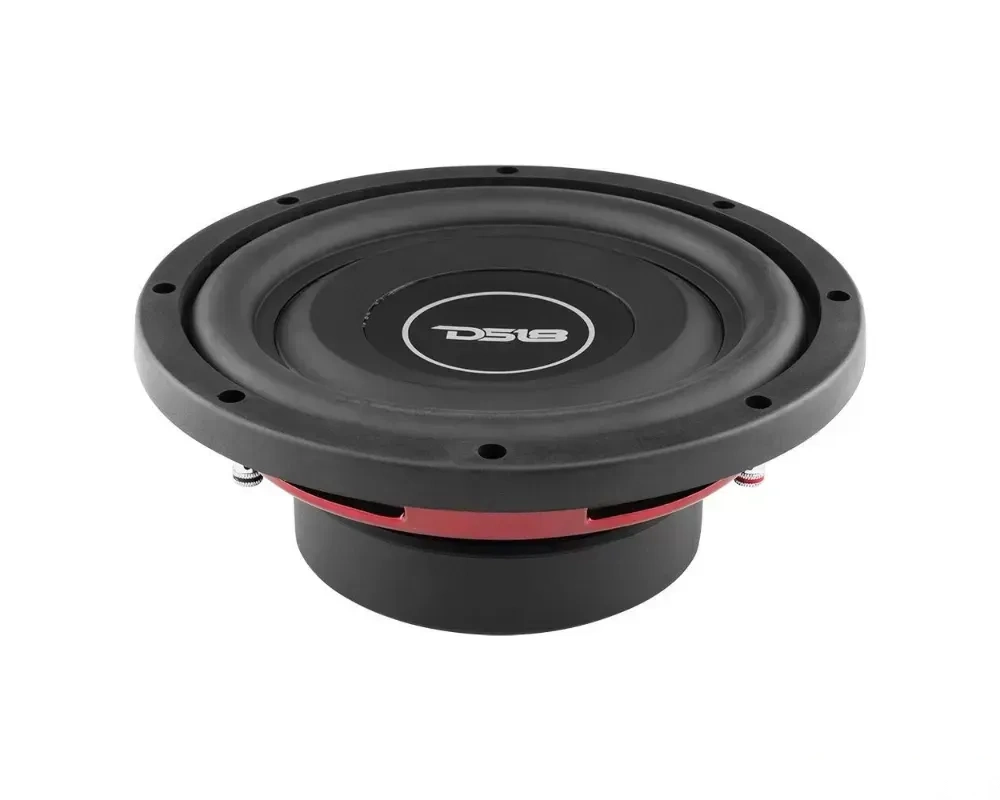

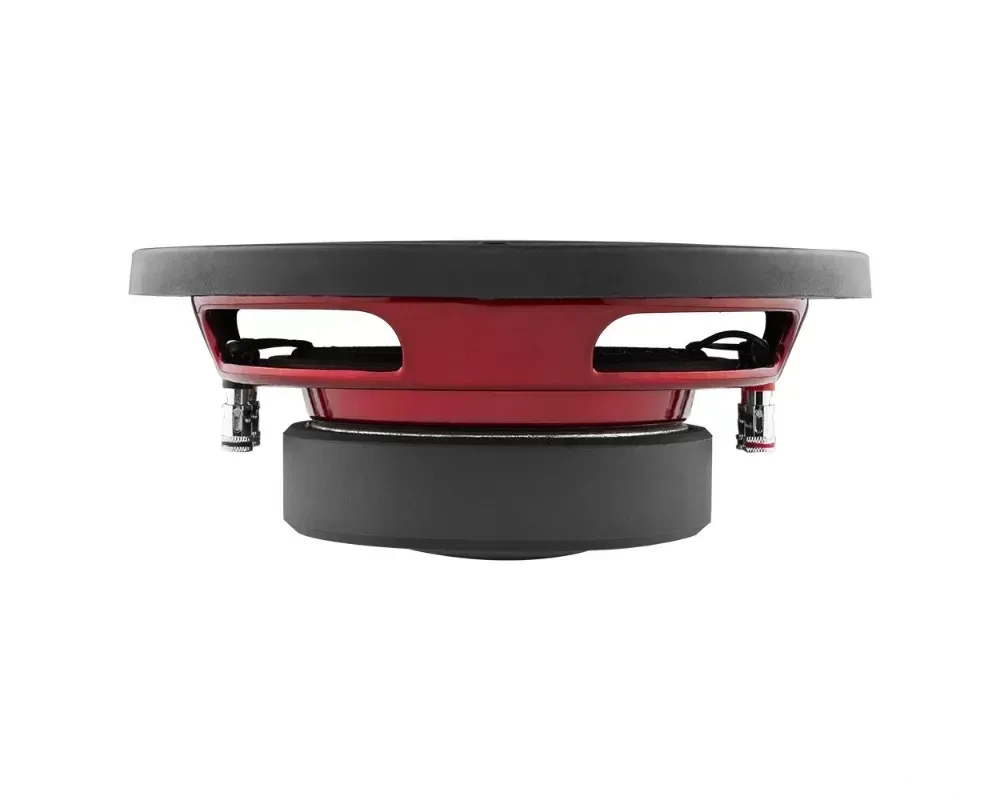

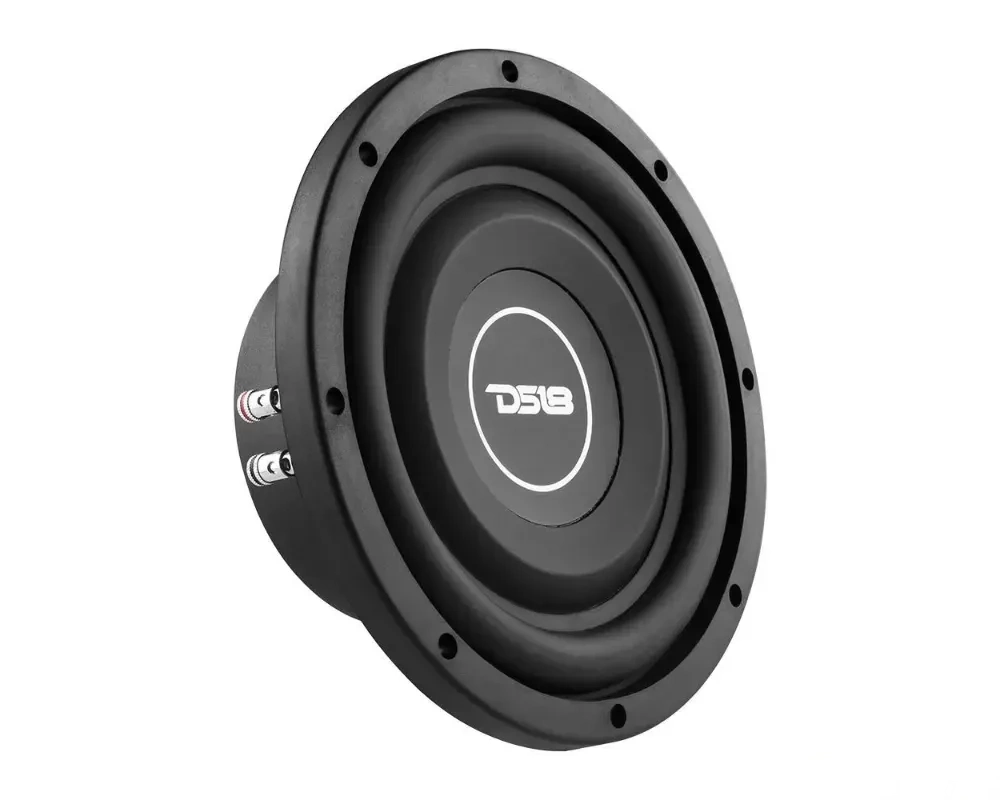

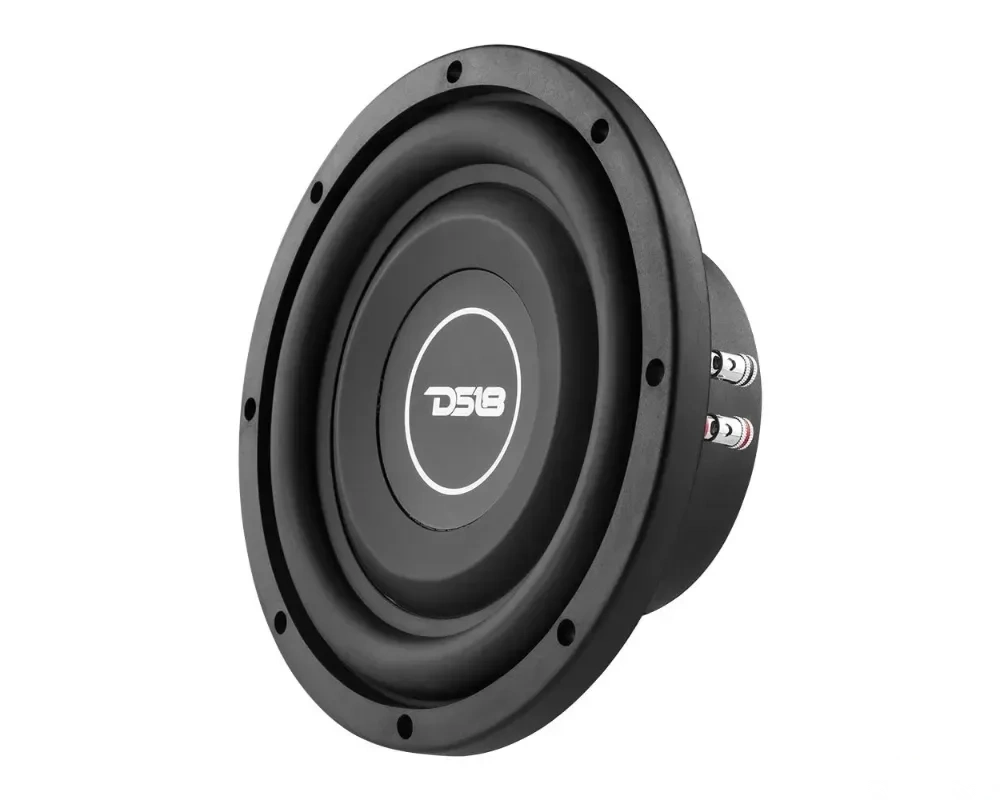

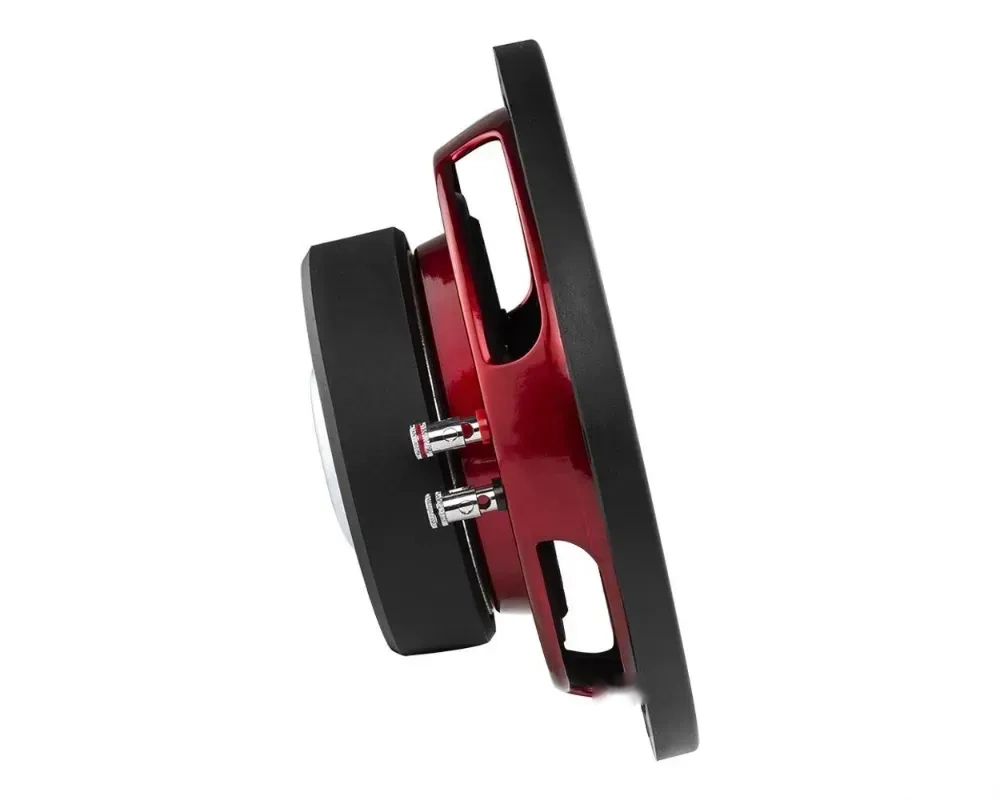

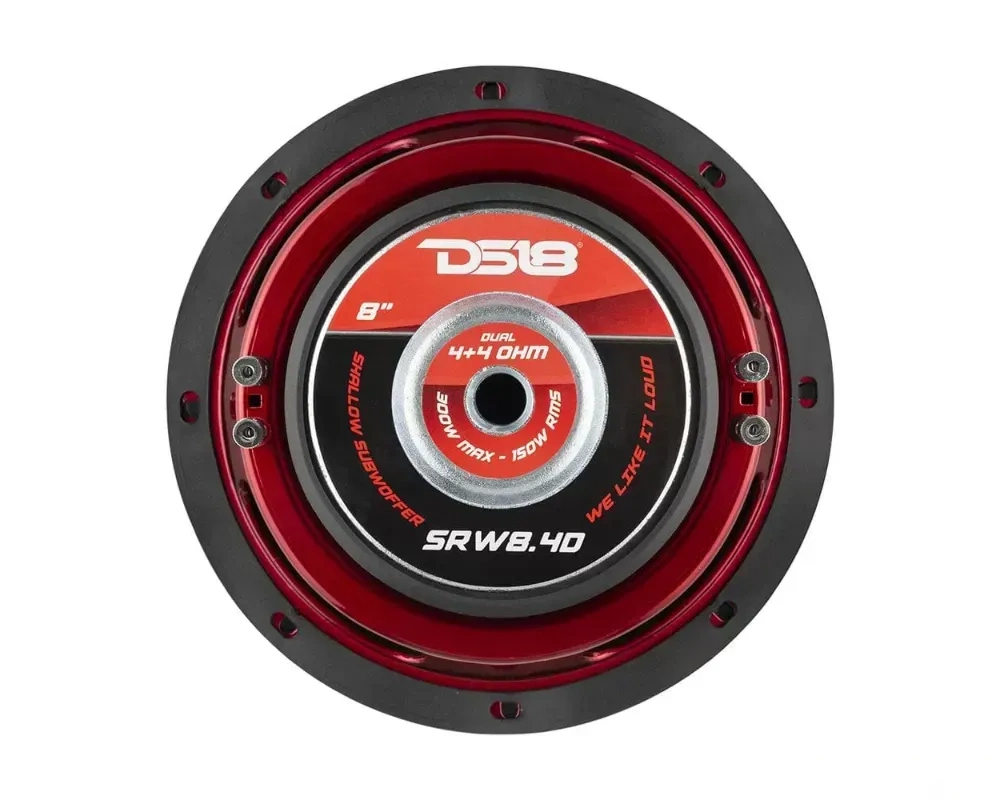

It's easy to get great bass when there's very little room with our new line of slim mount subwoofers. The SRW 8.4D (DVC) and SRW 8.4 (SVC) mounts in little as 2.83 inches mounting depth and can be utilized in both ported and sealed boxes for great bass in a tight area.

This sub handles 150 watts RMS and 300 watts peak power with a 88 db sensitivity which is very high for a slim mount sub raising this model high above the bar.

This sub comes in both dual voice coil 4 Ohm (SRW 8.4D) and single voice coil 4 Ohm (SRW 8.4) so you can wire appropriately to your amp for maximum power to bring all your music to life!

Key Features:

• Rubber surround and plastic cone for long lasting life and durability.
• High strength aluminum 1.5 inch voice coil to maximize cooling efficiency and great power handling.
• Mounts in a very shallow depth of 2.83 inches so you can fit this sub almost anywhere.
• Works great in ported and sealed boxes for tight thumping bass.

Specifications

• Nominal Diameter 8 inch
• Nominal Impedance 4+4 Ohms
• RMS Power Handling 150 Watts
• Maximum Power Handling 300 Watts
• Sensitivity (1w/1m) 88dB
• Frequency Response 50-3.5Khz
• Recommended Lo Pass Crossover 80Hz
• Voice Coil Diameter 38.6mm / 1.5 inch
• Voice Coil Former Material Aluminum
• Winding Material SV
• Basket Material Steel Basket
• Frame Material Steel Basket
• Magnet Weight Ferrite 32oz

Measurements

• Overall Diameter 214mm / 8.42 inch
• Front Mount Baffle Cutout 181mm / 7.12 inch
• Over Depth 85mm / 3.34 inch
• Mounting Depth 72mm / 2.83 inch

Install Instructions:

• For Instructions CLICK HERE!
