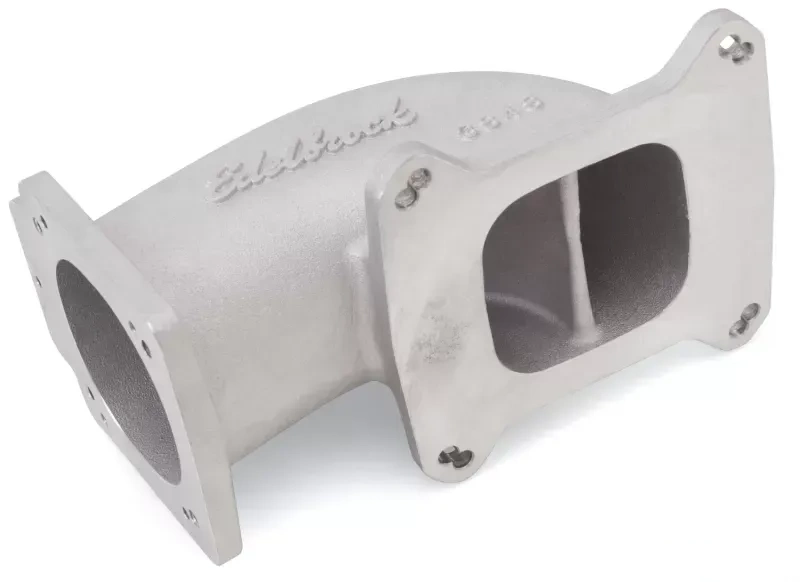

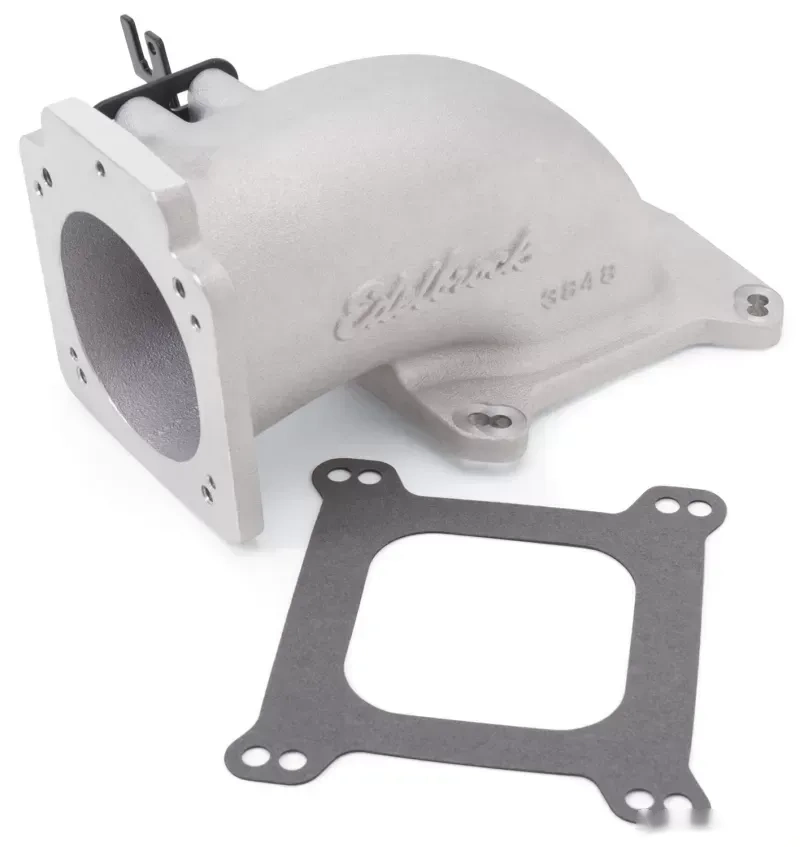

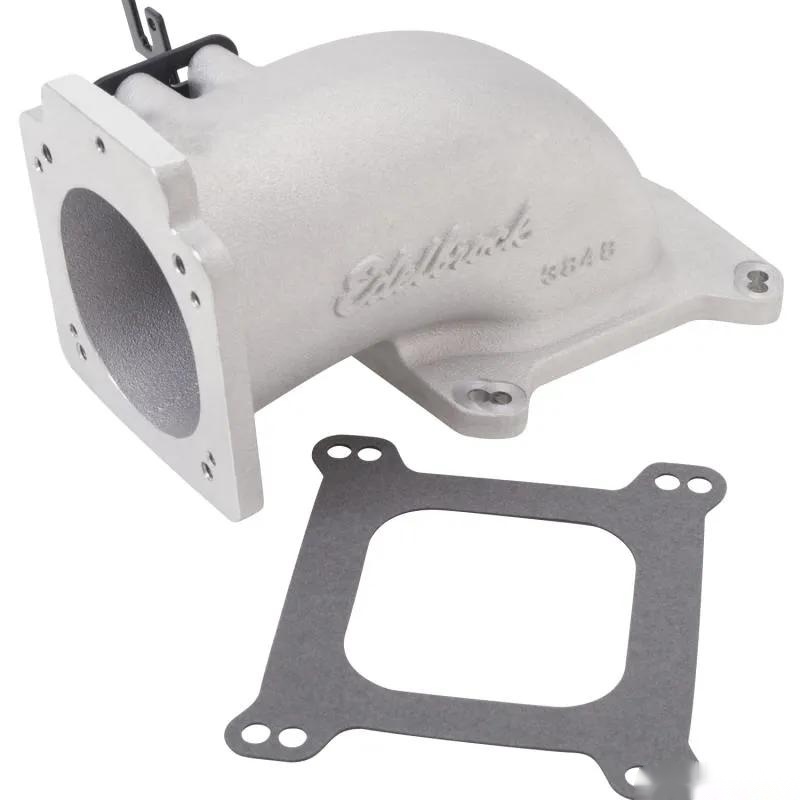

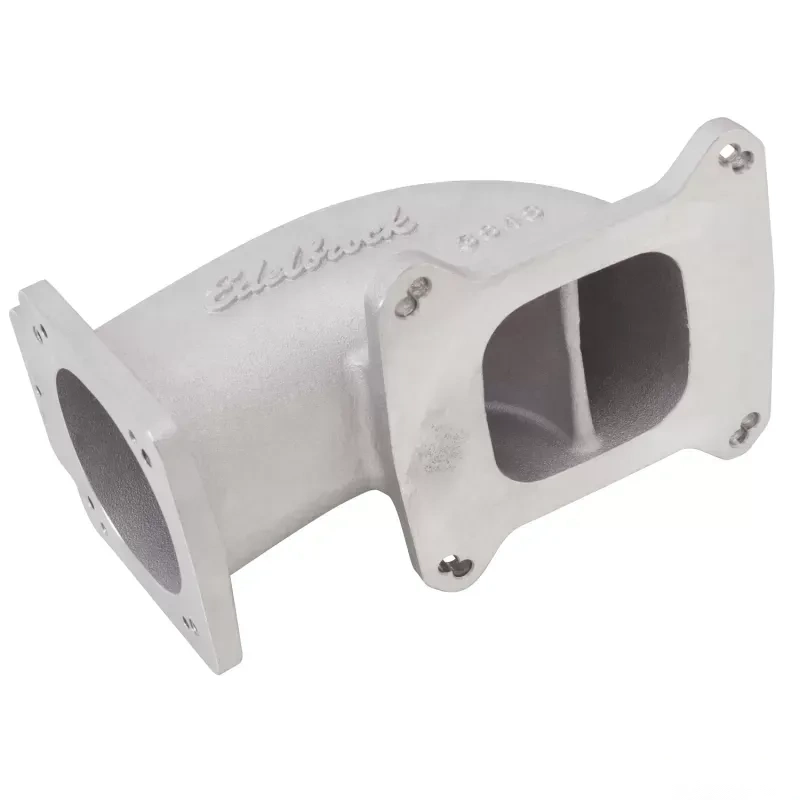

Edelbrock Low Profile Elbow: The Perfect Fit for Tight Spaces

If you're facing challenges with limited hood clearance, the Edelbrock Low Profile Elbow is here to help! This handy adaptor is specifically crafted for those tricky applications where space is at a premium.

Compatibility and Versatility

You can pair this elbow with our 29085 Victor Jr LS1, although keep in mind that some cowl trimming and an SS hood will be necessary. The 3848 Elbow is also compatible with various square bore (4150 style) manifold setups, giving you the flexibility to mount it forward, backward, or sideways on any of our Victor EFI Square bore (4150) style manifolds.

Important Details to Note

Thanks to its low profile design, a one-inch spacer is required for both small and Big Block Chevy forward mount configurations to ensure clearance for the water neck. You can use it with an LS1 80 mm throttle body (just don’t forget to grab the PN 2737 adaptor) or the Edelbrock PN 3869 90mm Universal throttle body, as well as Ford style 75mm options.

Key Features of the 3848 Adaptor

• Bolt pattern fits LS1, LS2, and Ford 5.0L based throttle bodies
• Adapts to standard (4150 style) square bore manifolds
• Mounts in a forward, backward, or sideways configuration
• Throttle bore center is positioned 7.00" forward and only 2.00" up from the manifold 4150 flange
• Throttle body points downward at a 5-degree angle

For Ultra-Low Applications

If you're looking for something even lower, check out our PN 3847 elbow, which sits 9.00" forward and just .56" above the flange, featuring a 12-degree downward throttle body angle.

Upgrade Your Setup with Confidence

The Edelbrock PN 3848 EFI Elbow is designed to accommodate 75/85/90mm throttle bodies to a 4150 flange, making it an essential component for your performance build. Get ready to enhance your ride with this reliable and versatile product!
