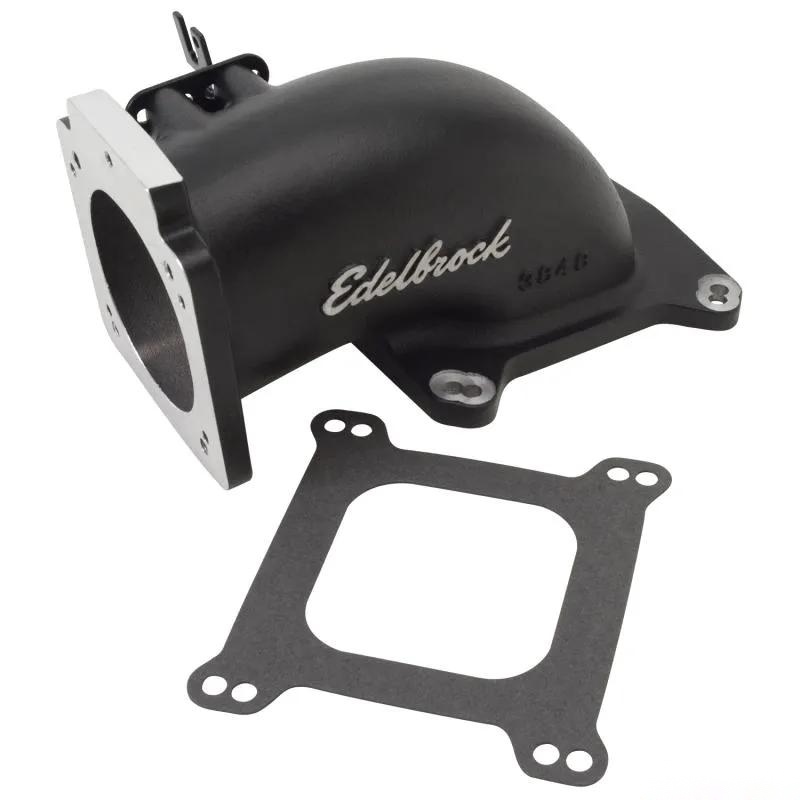

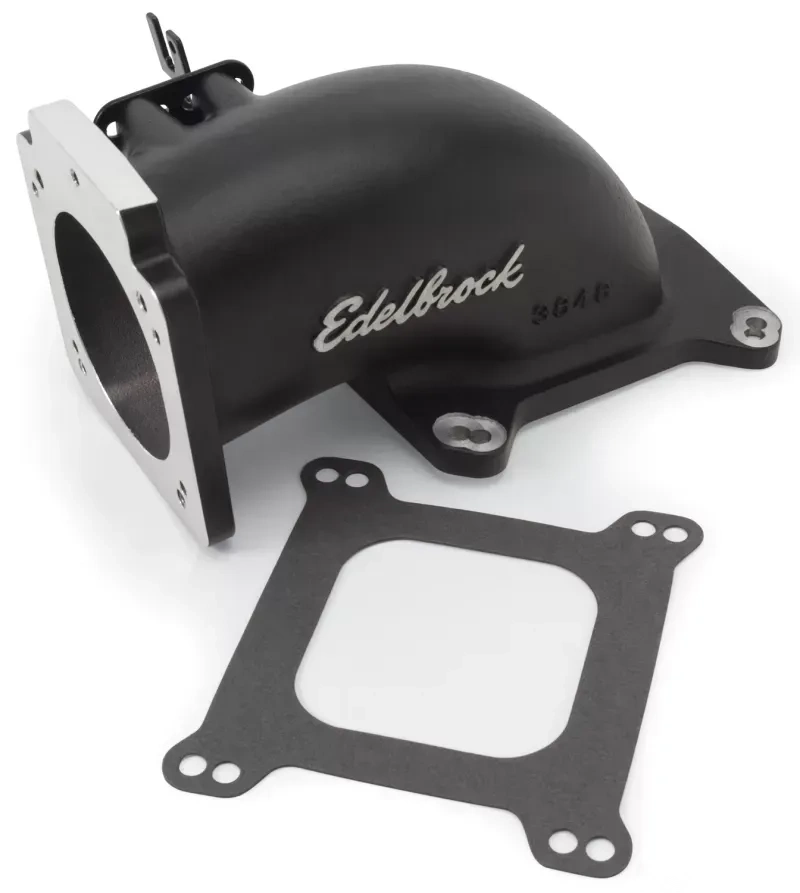

Introducing the Edelbrock Low Profile Elbow

If you're facing challenges with limited hood clearance, we've got just the solution for you! The Edelbrock Low Profile Elbow is specifically designed to fit snugly into those tight spaces. This versatile adapter works seamlessly with our 29085 Victor Jr LS1—just keep in mind that some cowl trimming and an SS hood will be necessary.

Compatibility and Versatility

The 38483 Elbow isn’t just limited to the LS1; it can also be used with various square bore (4150 style) manifold applications. Plus, you have options! This elbow can be mounted in a forward, backward, or sideways position on any of our Victor EFI Square Bore (4150) style manifolds.

Important Installation Notes

Due to its low profile, a one-inch spacer is required for both small and Big Block Chevy forward mount configurations to ensure clearance for the water neck. It’s compatible with LS1 80 mm throttle bodies (just grab the PN 2737 adapter) or our Edelbrock PN 3869 90mm Universal, as well as Ford-style 75mm throttle bodies.

Key Features

• Bolt pattern fits LS1, LS2, and Ford 5.0L based throttle bodies.
• Adapts to standard (4150 style) square bore manifolds.
• Mounts in forward, backward, or sideways configurations.
• The throttle bore center is positioned 7.00" forward and just 2.00" up from the manifold 4150 flange.
• The throttle body points downward at a 5-degree angle.

Ultra-Low Applications

For those ultra-low setups, check out our PN 3847 elbow, which sits 9.00" forward and only .56" above the flange, featuring a 12-degree downward throttle body angle.

Your Go-To Solution

The Edelbrock PN 38483 EFI Elbow Low Profile is your best bet for a seamless connection between 75/85/90mm throttle bodies and the 4150 flange. Get ready to transform your ride!
