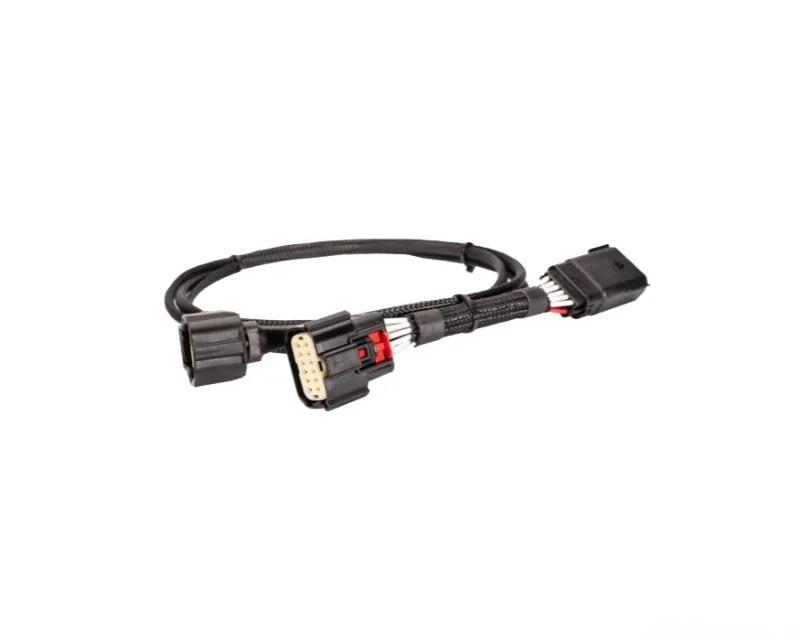

The Fleece Performance Charging Circuit Harness for the 2017-2018 Ford 6.7L Power Stroke is a drop-in replacement with no cutting or splicing to fix the common problem of an intermittent or continuously illuminated battery lamp on the dash! Designed and produced in-house, our manufacturing process includes fully automated wire cutting and terminal crimping to ensure you get the highest quality replacement parts you need to get your truck back on the road quickly. Fits 2017-2018Ford F250/350/450/550 with 6.7L Powerstroke.

Problem Overview

Complaint: Charging circuit MIL illuminated intermittingly or continuously on the truck dash.

Cause: Damaged, stressed, chaffed, or broken charging circuit sense wires in the OEM harness that are routed from the Powertrain Control Module (PCM) to the alternator resulting in an intermittent voltage reading to the PCM.

Description: Due to the routing, exposure, and general lack of protection on the small charging circuit sense wires that are routed from Powertrain Control Module (PCM) to the alternator it is common for wire damage to be experienced. The routing of the OE harness is cumbersome and extremely difficult to replace and diagnose.

Fix/Solution: The Fleece Performance Charging Circuit Harness is a drop-in replacement to replace a failed factory harness causing an intermittent or illuminated charging circuit MIL on the dash. The harness installs directly in-line with factory connections with no cutting or splicing and allows you to reroute the alternator connection along the top side of the engine.


Install Instructions:

• For Instructions CLICK HERE

Fitment:

• Ford Super Duty 250 6.7L Powerstroke 2017-2018
• Ford Super Duty 350 6.7L Powerstroke 2017-2018
• Ford Super Duty 450 6.7L Powerstroke 2017-2018

Note:

• 6 Month Limited Parts Warranty
• Fits 2017-2018 Ford F250/350/450/550 with 6.7L Powerstroke. This kit is for the charging circuit on the Primary Alternator and can be used on vehicles equipped with a secondary alternator.
