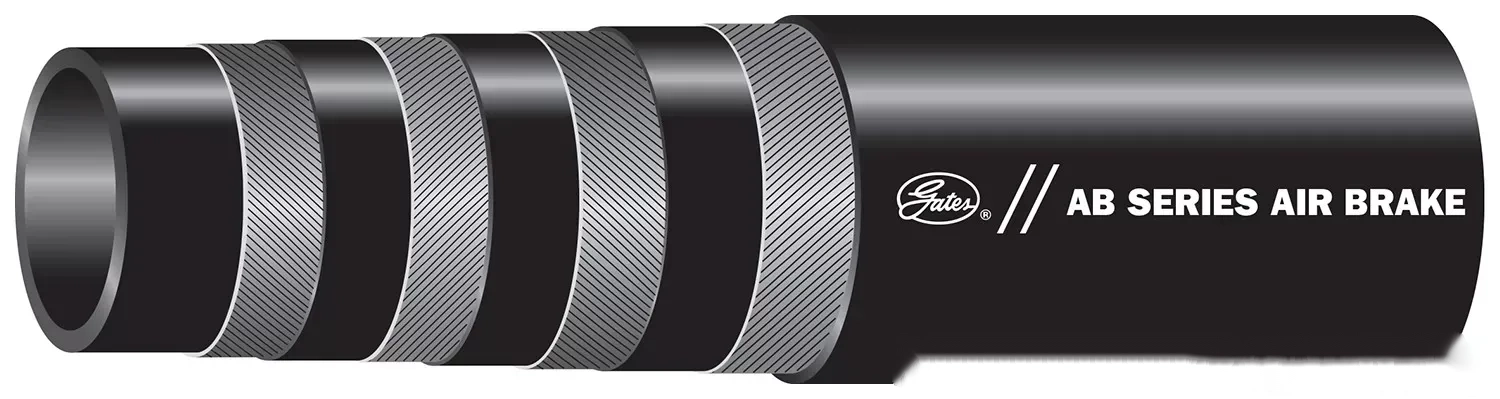

Gates AB Series Air Brake Hose - 3/8" x 250FT

The Gates AB Series Air Brake Hose is crafted using a state-of-the-art computer-controlled manufacturing process, ensuring consistent quality and performance. This hose is designed to withstand the rigors of air brake systems, making it a reliable choice for fleet applications and maintenance.

Key Features

• Durable Material: Made from superior EPDM rubber, this hose resists damage from ozone, heat, grease, and oil—common threats in air brake systems.
• Kink-Resistant: Flexible design that prevents kinking, ensuring smooth operation and longevity.
• Universal Compatibility: Accepts all styles of air brake couplings, including conventional brass and plastic options.
• Robust Construction: Features a four-spiral polyester construction that meets SAE J1402 specifications and complies with DOT FMVSS 106 requirements.
• Temperature Versatility: Operates effectively in a wide temperature range from -40°F to +212°F (-40°C to +100°C).

Specifications

• Product Type: AB Series Air Brake Hose
• Industrial Description: 3/8" x 250FT Reel Rubber Air Brake
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Low Pressure
• Maximum Working Pressure: 225 psi
• Minimum Burst Pressure: 1000 psi
• Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Length: 250 ft
• Dash Size: 6
• Hose Inside Diameter: 0.375 in
• Hose Outside Diameter: 0.75 in
• Tube Material: EPDM Rubber
• Reinforcement: Four-Spiral Fiber
• Cover Material: EPDM Rubber
• Cover Color: Black
• Coupling Recommendation: Gates G33 Air Brake Couplings
• SAE Specification: J1402

Important Compliance Information

According to federal law, registration with the Department of Transportation is required for anyone producing air brake hose assemblies with swaged or crimped fittings. For compliance details, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.
