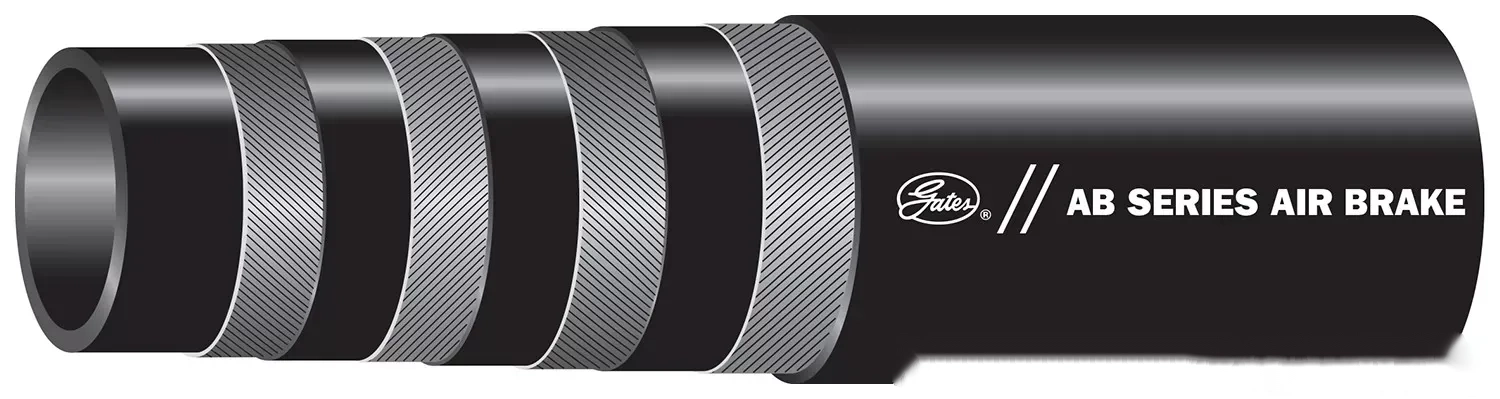

Gates AB Series Air Brake Hose - 1/2" x 250FT Reel

Experience reliability and durability with the Gates AB Series Air Brake Hose, designed for optimal performance in demanding environments. This air brake hose is engineered using a computer-controlled manufacturing process that ensures consistent quality and uniformity, making it a trusted choice for fleet applications and maintenance.

Key Features

• Material Excellence: Crafted from superior EPDM rubber, this hose effectively resists the damaging effects of ozone, heat, and the harmful grease and oil typically found in air brake systems.
• Flexible & Kink-Resistant: The design promotes flexibility while preventing kinks, ensuring smooth operation.
• Versatile Coupling Compatibility: Compatible with all styles of air brake couplings, including conventional brass and plastic options.
• Robust Construction: Built with a four-spiral polyester construction that meets SAE J1402 specifications and complies with DOT FMVSS 106 requirements.
• Temperature Tolerance: Operates effectively in a temperature range of -40°F to +212°F (-40°C to +100°C).

Specifications

• Product Type: AB Series Air Brake Hose
• Industrial Description: 1/2" x 250FT Reel Rubber Air Brake
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Low Pressure
• Maximum Working Pressure: 225 psi
• Minimum Burst Pressure: 1000 psi
• Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Length: 250 ft
• Dash Size: 8
• Hose Inside Diameter: 0.5 in
• Hose Outside Diameter: 0.875 in
• Tube Description: EPDM Rubber
• Reinforcement: Four-Spiral Fiber
• Cover Material: EPDM Rubber
• Cover Color: Black
• Coupling Recommendation: Gates G33 Air Brake Couplings
• SAE Specification: J1402

Compliance Information

Federal law mandates that any producer of air brake hose assemblies with swaged or crimped fittings must register with the Department of Transportation. For detailed compliance information, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.
