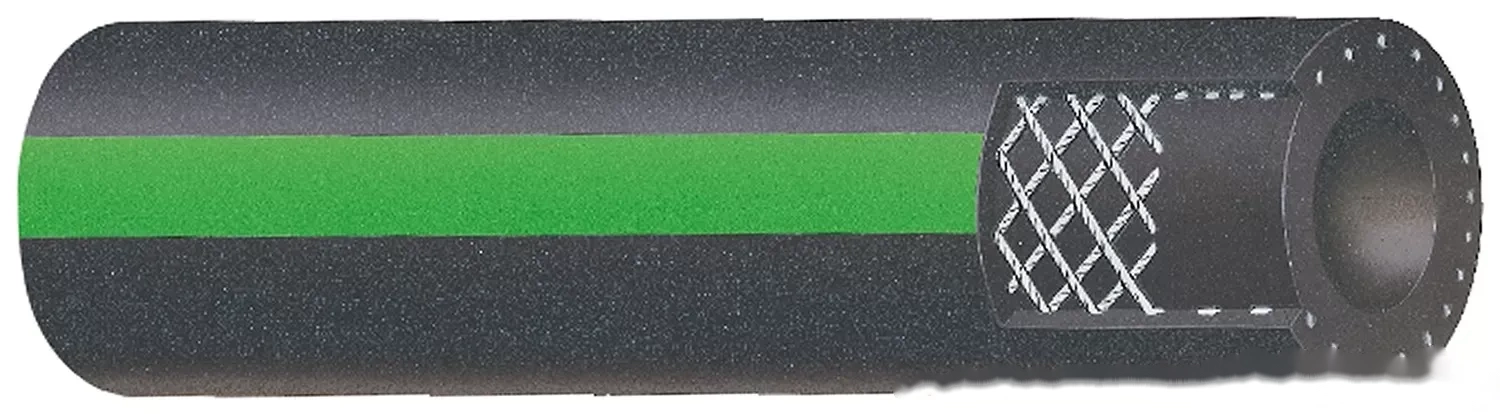

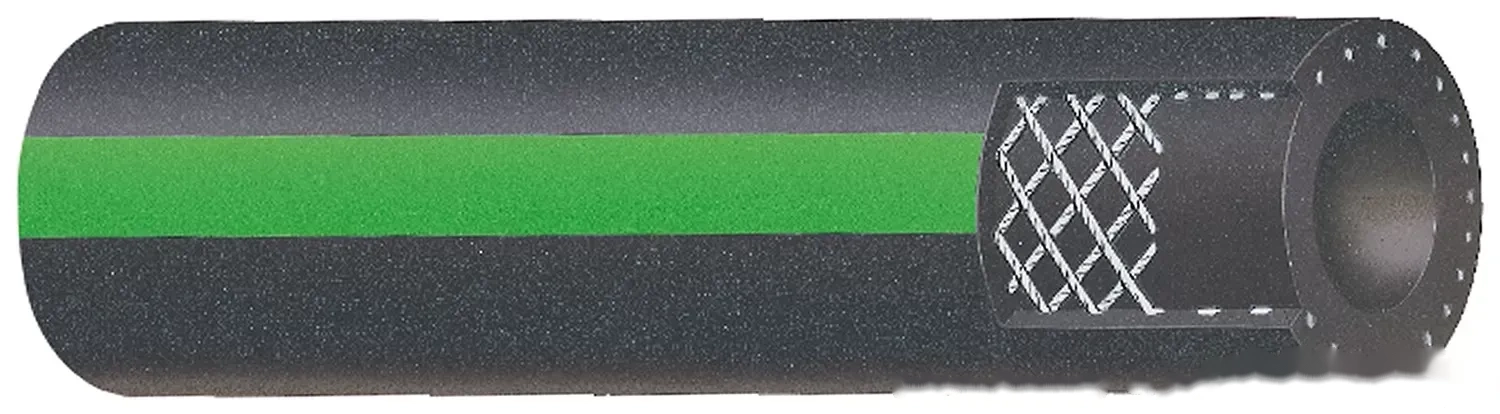

Gates Green Stripe Heavy-Duty Heater Hose

Experience reliable performance with the Gates Green Stripe Heavy-Duty Heater Hose, designed specifically for trucks, buses, and off-road equipment heater systems. Crafted with heavy-duty materials, this hose ensures durability and efficiency, making it a smart investment for your vehicle's heating needs.

Key Features

• Cost-Effective Design: The Green Stripe construction offers exceptional cost-per-mile economics, making it an ideal choice for long-term use.
• Abrasion-Resistant Cover: Built to withstand the rigors of tough environments, this hose features an abrasion-resistant exterior.
• Electrochemical Degradation Resistance: Engineered with advanced materials to prevent electrochemical degradation, ensuring longevity.
• Water Loss Reduction: Minimizes water loss due to permeation through the hose wall and cover.
• SAE Compliance: Exceeds SAE 20R1 Type EC (Class D-1 tube and cover Standard Wall) standards, guaranteeing reliability.
• Temperature Range: Operates efficiently in extreme temperatures, from -40°F to +275°F (-40°C to +135°C).

Specifications

• Centerline Length: 50 ft
• Centerline Length: 15.24 m
• Centerline Length: 600 in
• Centerline Length: 15240 mm
• End 1 Inside Diameter: 9.5 mm
• Working Pressure: 105 psi
• Material: EPDM
• Molded: No

Installation Notes

For a secure and maintenance-free connection, consider using PowerGrip SB clamps. Please note that this hose is not suitable for fuel or oil transfer applications.
