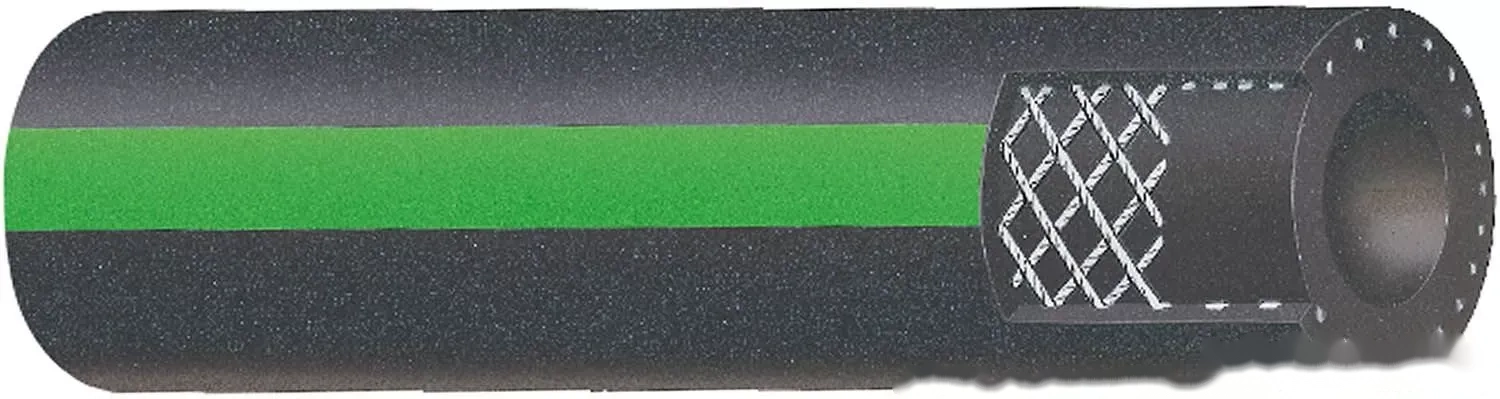

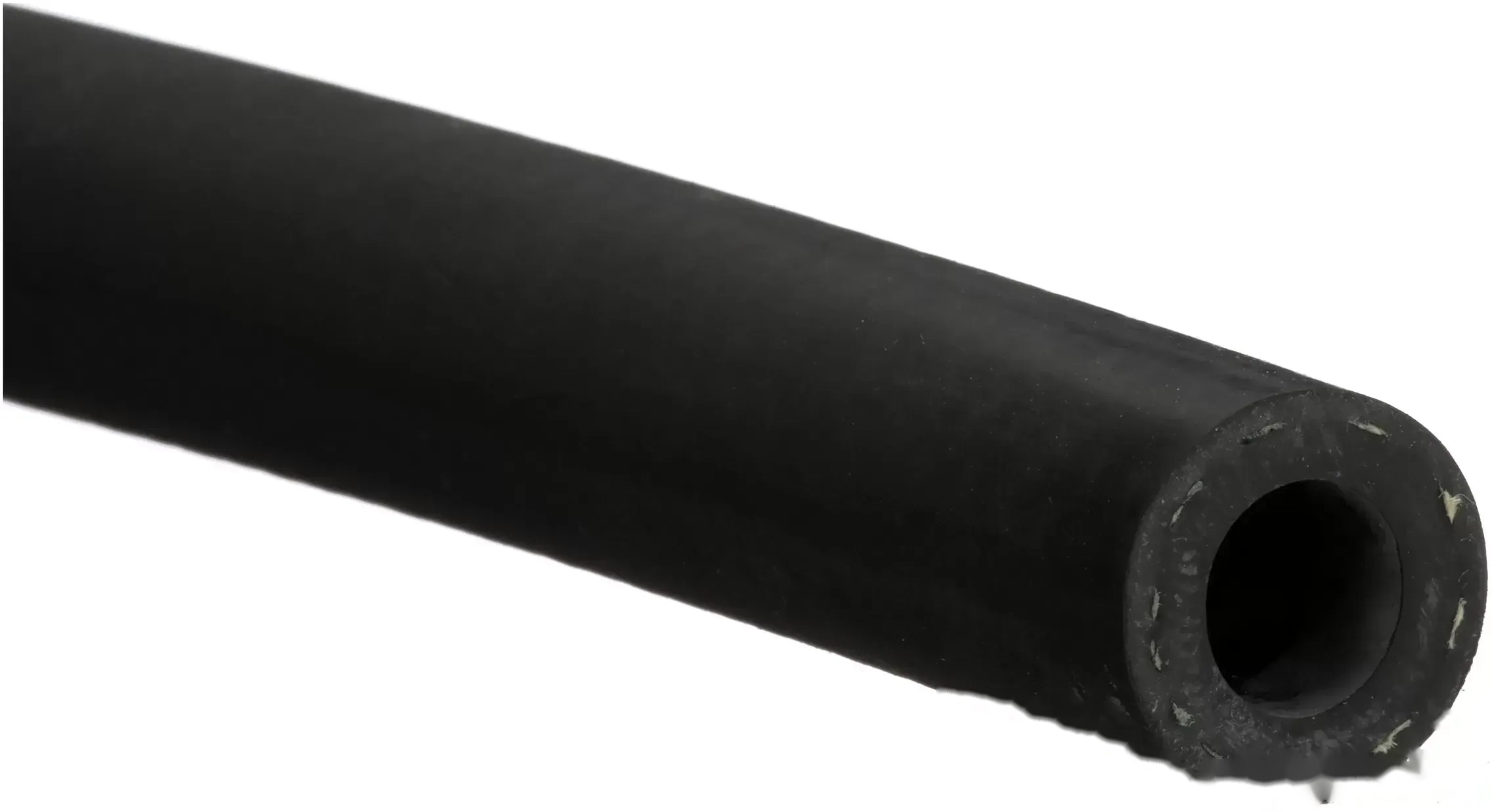

Gates Green Stripe Heavy-Duty Heater Hose

The Gates Green Stripe Heavy-Duty Heater Hose is engineered for tough performance, making it an ideal choice for trucks, buses, and off-road equipment. With its robust construction and advanced materials, this heater hose stands up to high temperatures and rigorous conditions, ensuring reliable operation for your heating systems.

Key Features

• Cost-Effective Performance: The Green Stripe design offers excellent cost-per-mile economics, making it a smart investment for your vehicle.
• Abrasion-Resistant Cover: Built to withstand wear and tear, this hose is ideal for demanding environments.
• Electrochemical Degradation Resistance: Engineered with advanced materials to prevent degradation, ensuring longevity.
• Water Loss Prevention: Reduces water loss caused by permeation through the hose wall and cover.
• SAE Compliance: Exceeds SAE 20R1 Type EC (Class D-1 tube and cover Standard Wall) standards for quality assurance.
• Temperature Range: Operates effectively within a temperature range of -40°F to +275°F (-40°C to +135°C).

Specifications

• Centerline Length: 300 ft
• Centerline Length: 91.44 m
• Centerline Length: 3600 in
• Centerline Length: 91440 mm
• End 1 Inside Diameter: 16 mm
• Working Pressure: 95 psi
• Material: EPDM
• Molded: No

Installation Tips

For a maintenance-free connection, consider using PowerGrip SB clamps, which are designed to ensure a secure fit. Please note that this hose should not be used for fuel or oil transfer applications.
