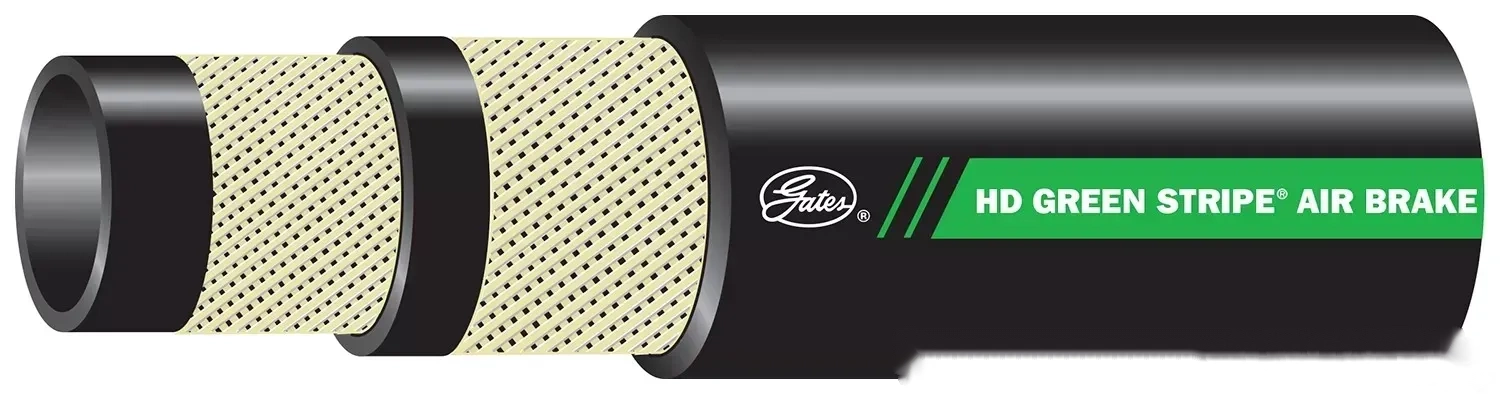

Gates Heavy-Duty Green Stripe Air Brake Hose 28304

The Gates 28304 Heavy-Duty Green Stripe Air Brake Hose is designed specifically for truck, bus, and mobile air brake systems. This versatile hose serves as a flexible connector between the frame and axle, ensuring reliable performance in demanding environments.

Compliance and Safety

Rest assured, this product meets the stringent requirements of the D.O.T. FMVSS 106 standards, making it a reliable choice for air brake hose assemblies. Please note that federal law mandates registration with the D.O.T. for anyone producing air brake hose assemblies with swaged or crimped fittings.

Specifications

• Product Type: Heavy-Duty Green Stripe Air Brake Hose
• Industrial Description: 3/8 X250 REEL GS RBR AB
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Low Pressure
• Maximum Working Pressure: 225 psi
• Minimum Burst Pressure: 1000 psi
• Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Length: 250 ft
• Dash Size: 6
• Hose Inside Diameter: 0.375 in
• Hose Outside Diameter: 0.75 in
• Tube Material: Neoprene

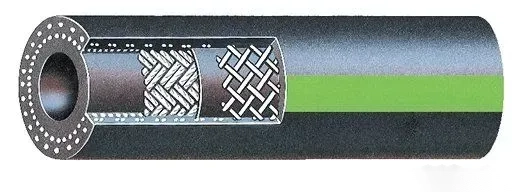

• Reinforcement: Reinforced - Two Braids
• Cover Material: Smooth Nitrile & Neoprene
• Cover Type: Oil Resistant
• Cover Color: Black
• Coupling Recommendation: Gates G33 Air Brake Couplings
• SAE Specification: J1402

Key Features

This hose is built to withstand extreme temperatures, ranging from -40°F to +212°F, making it suitable for various operating conditions. With a maximum working pressure of 225 psi and a minimum burst pressure of 1000 psi, it provides the durability and reliability needed for heavy-duty applications.

Fitment

The Gates 28304 is ideal for fleet applications and maintenance, ensuring that your air brake systems operate smoothly and efficiently. Its compatibility with Gates G33 Air Brake Couplings makes installation straightforward and secure.

Why Choose Gates?

Gates is a trusted name in the industry, known for providing high-quality products that meet rigorous safety and performance standards. When you choose the Gates Heavy-Duty Green Stripe Air Brake Hose, you're investing in a product that delivers reliability and peace of mind on the road.
