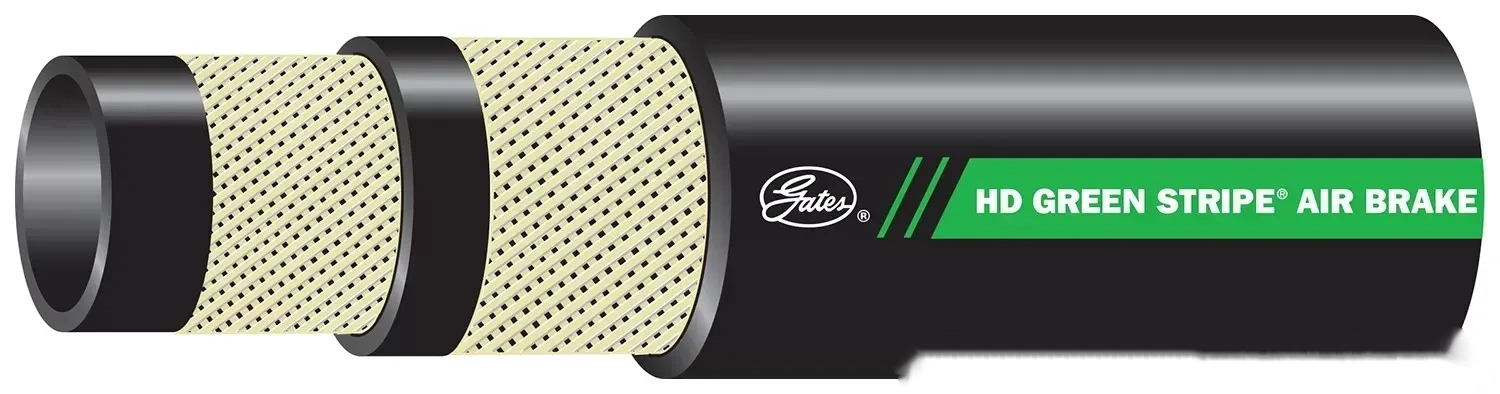

Gates 27221 Heavy-Duty Green Stripe Air Brake Hose

If you're in the market for a reliable air brake hose for trucks, buses, or mobile air brake systems, the Gates 27221 Heavy-Duty Green Stripe Air Brake Hose is an excellent choice. This hose is designed to serve as a flexible connector between the frame and axle, ensuring optimal performance in demanding conditions.

Key Features

• Product Type: Heavy-Duty Green Stripe Air Brake Hose
• Industrial Description: 8ABGS X50FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Low Pressure
• Maximum Working Pressure: 225 psi
• Minimum Burst Pressure: 1000 psi
• Temperature Range: -40°F to +212°F (-40°C to +100°C)
• Length: 50 ft
• Dash Size: 8
• Hose Inside Diameter: 0.5 in
• Hose Outside Diameter: 0.875 in
• Tube Material: Neoprene

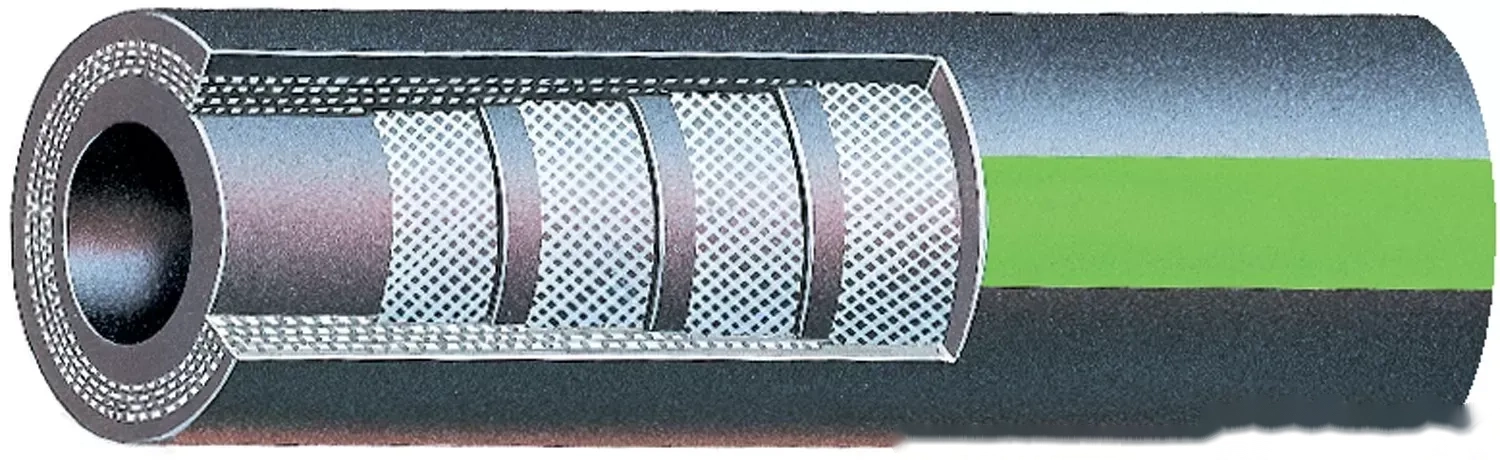

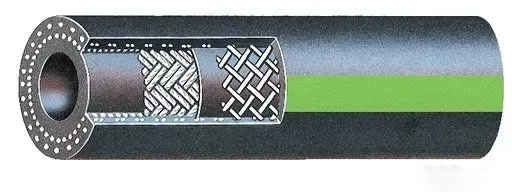

• Reinforcement: Reinforced - Two Braids
• Cover Material: Smooth Nitrile & Neoprene
• Cover Type: Oil Resistant
• Cover Color: Black
• Coupling Recommendation: Gates G33 Air Brake Couplings
• SAE Specification: J1402

Compliance and Safety

This air brake hose complies with D.O.T. FMVSS 106 requirements, ensuring that it meets the necessary safety standards for air brake systems. If you’re producing air brake hose assemblies with swaged or crimped fittings, remember that federal law mandates registration with the D.O.T.

Why Choose Gates 27221?

The Gates 27221 hose not only exceeds SAE J1402 and Bendix specifications but also offers a temperature range that can handle extreme conditions. Whether you’re maintaining a fleet or working with heavy-duty vehicles, this hose is built to last and perform reliably.
