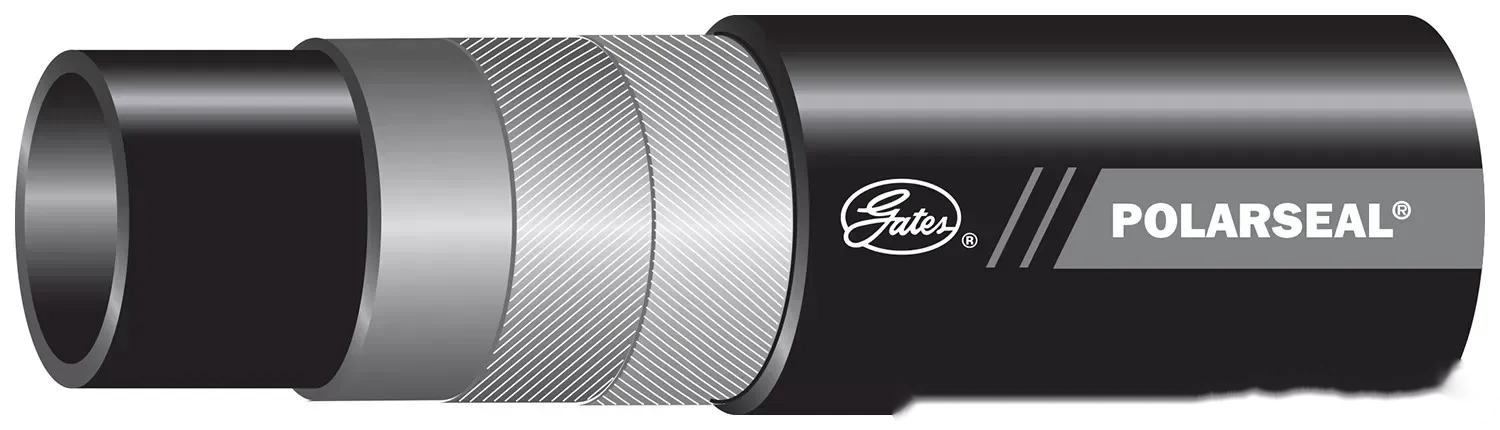

Gates PolarSeal Hose 12AC134AX25FT

The Gates PolarSeal Hose is your go-to solution for automotive air conditioning and industrial refrigeration systems. Perfectly suited for both liquid and gaseous R134a and R12 refrigerants, this hose is designed for a variety of applications, including tractors, construction trucks, and mobile or stationary refrigeration units. With its advanced design, the PolarSeal Hose minimizes the permeation of R134a refrigerant, ensuring optimal performance.

Key Specifications

• Product Type: PolarSeal Hose
• Industrial Description: 12AC134AX25FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Medium Pressure
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Temperature Range: -22°F to +257°F (-30°C to +125°C)
• Length: 25 ft
• Dash Size: 12
• Hose Inside Diameter: 0.625 in
• Hose Outside Diameter: 1.13 in
• Minimum Bend Radius: 5 in
• Vacuum: 24 inHg
• Tube Description: Black, Synthetic Rubber
• Tube Material: Neoprene - Type A
• Reinforcement: Two Layers of Spiral Polyester
• Cover Material: Synthetic Rubber (EPDM)
• Cover Color: Black
• Barrier: Nylon Liner
• Coupling Recommendation: PolarSeal Couplings
• SAE Specification: J51, J3062

Benefits of the Gates PolarSeal Hose

This hose is engineered to withstand extreme temperatures and pressures, making it a reliable choice for demanding environments. The two layers of spiral polyester reinforcement provide exceptional durability, while the black synthetic rubber cover ensures resistance to wear and tear. Whether you're working on a fleet of vehicles or industrial refrigeration units, the Gates PolarSeal Hose delivers the performance you need.

Fitment

Compatible with a range of applications, the Gates PolarSeal Hose is ideal for those in need of a robust solution for their air conditioning and refrigeration systems. Its specifications make it suitable for both mobile and stationary setups, ensuring you have the right hose for your needs.

Conclusion

Choose the Gates PolarSeal Hose 12AC134AX25FT for a dependable, high-performance solution that meets the demands of your automotive and industrial applications.
