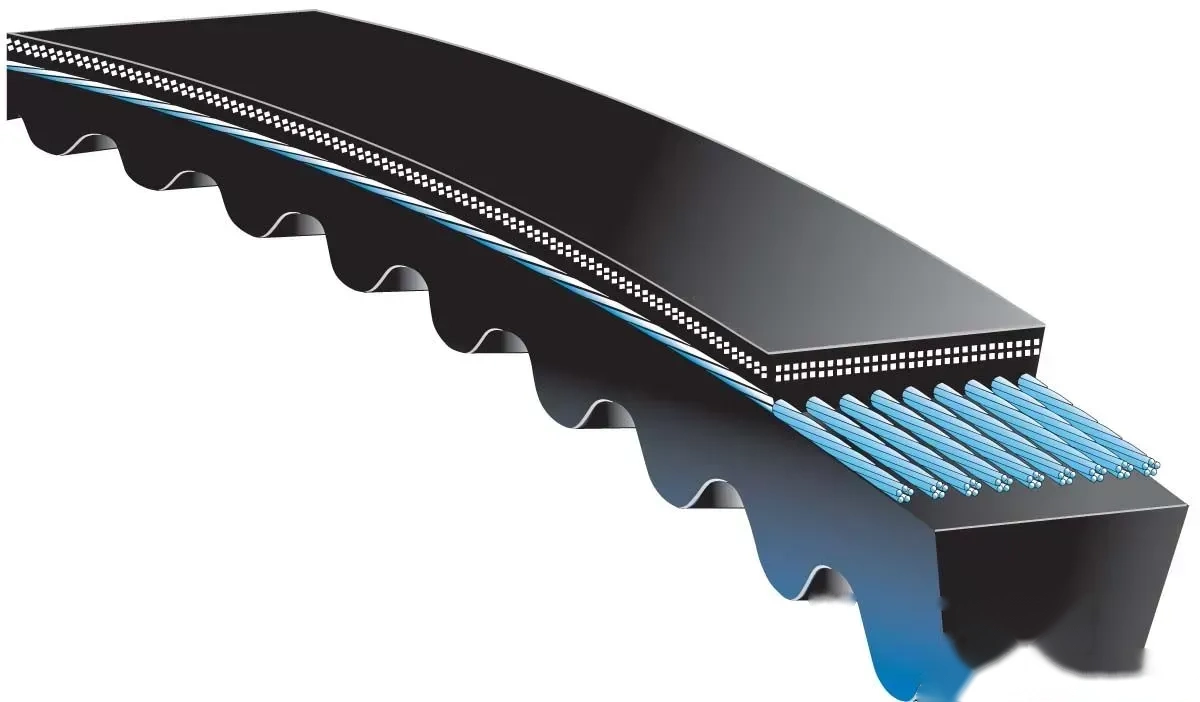

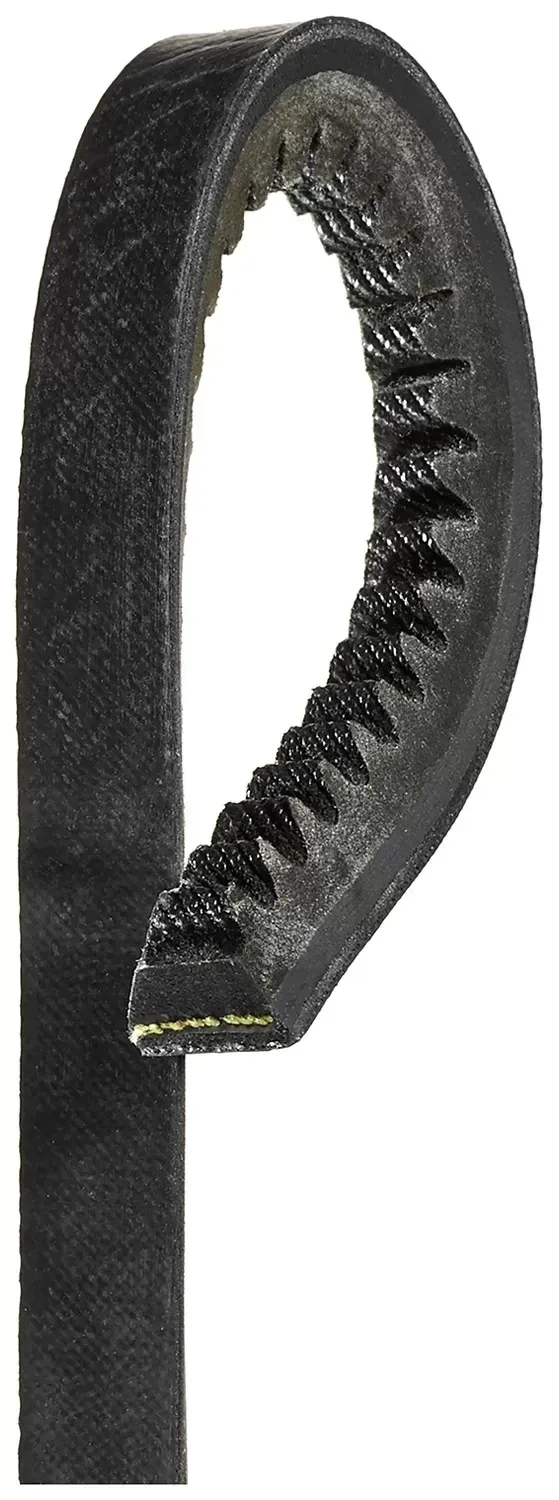

5VX1320 Super HC Molded Notch V-Belt by Gates

If you're looking for a reliable solution to handle high horsepower in tight spaces, the 5VX1320 Super HC Molded Notch V-Belt is just what you need. This belt is engineered with a unique construction process that delivers an exceptional blend of flexibility and load-carrying capacity, allowing it to transmit up to three times the horsepower of similarly sized belts. Its design promotes increased efficiency, making it an economical choice for compact drive systems.

Key Benefits

• Smoother and quieter operation with reduced slippage and wear, extending belt life and minimizing costly maintenance.
• Compact design tailored for high horsepower applications, ideal for small pulley diameter drives.
• Proprietary Flex-Weave cover offers superior protection against oil, contaminants, and heat, enhancing durability.
• Flex-bonded cords are securely integrated into the belt body, providing equal load distribution and resistance to fatigue and shock loads.
• Precision-ground straight sidewalls ensure a perfect fit in pulley grooves, promoting even wear and longevity.
• Molded notches help to evenly distribute thermal and bending stresses while reducing noise levels.
• Patented Ethylene Elastomeric compound shields the belt from heat, ozone, and sunlight damage.
• Complies with ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements.
• Temperature range: -70°F to +250°F (-57°C to +121°C).

Specifications

• Type: Narrow Section Molded Notch V-Belt
• Section: 5VX
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 3353 mm
• Construction: Notched
• Belt Material: Ethylene Elastomer (EE)
• Cord Material: Polyester

Available Options

The 5VX1320 is available in various cross-sections including 3VX, 5VX, and 8VX, along with Super HC Molded Notch PowerBand joined V-belts, ensuring you find the perfect fit for your application.
