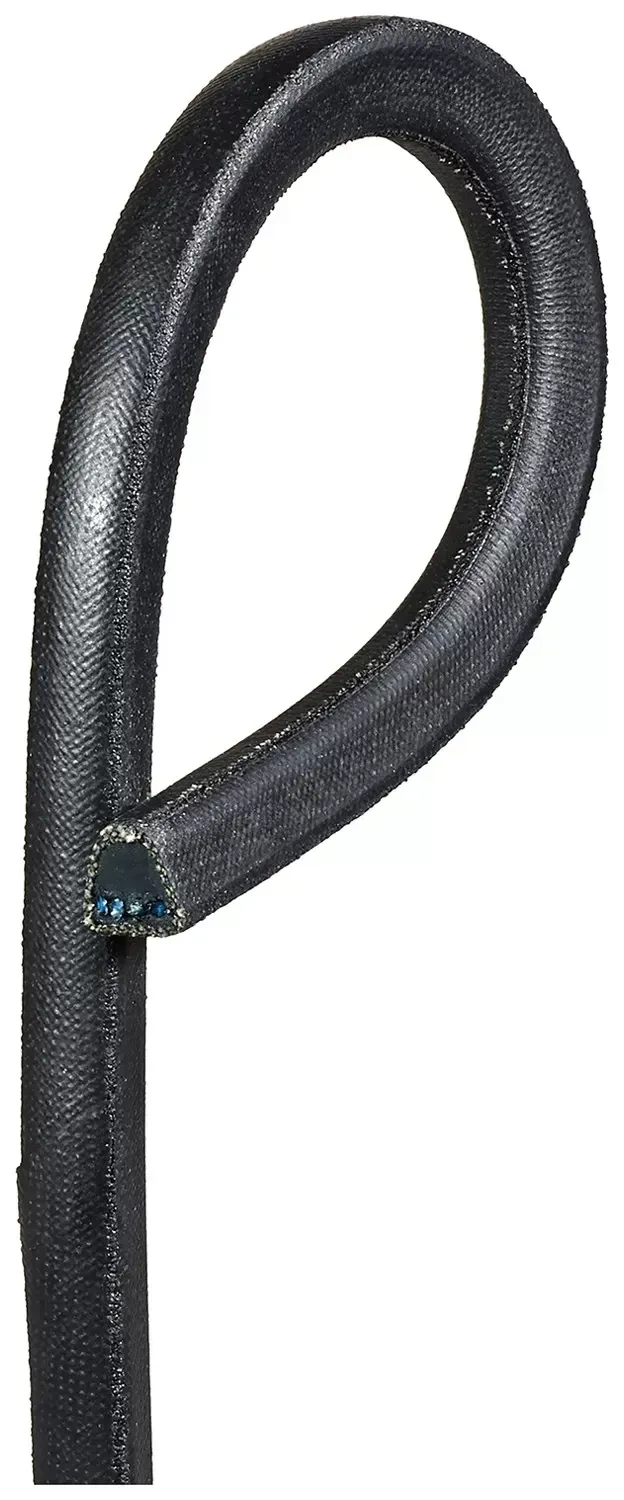

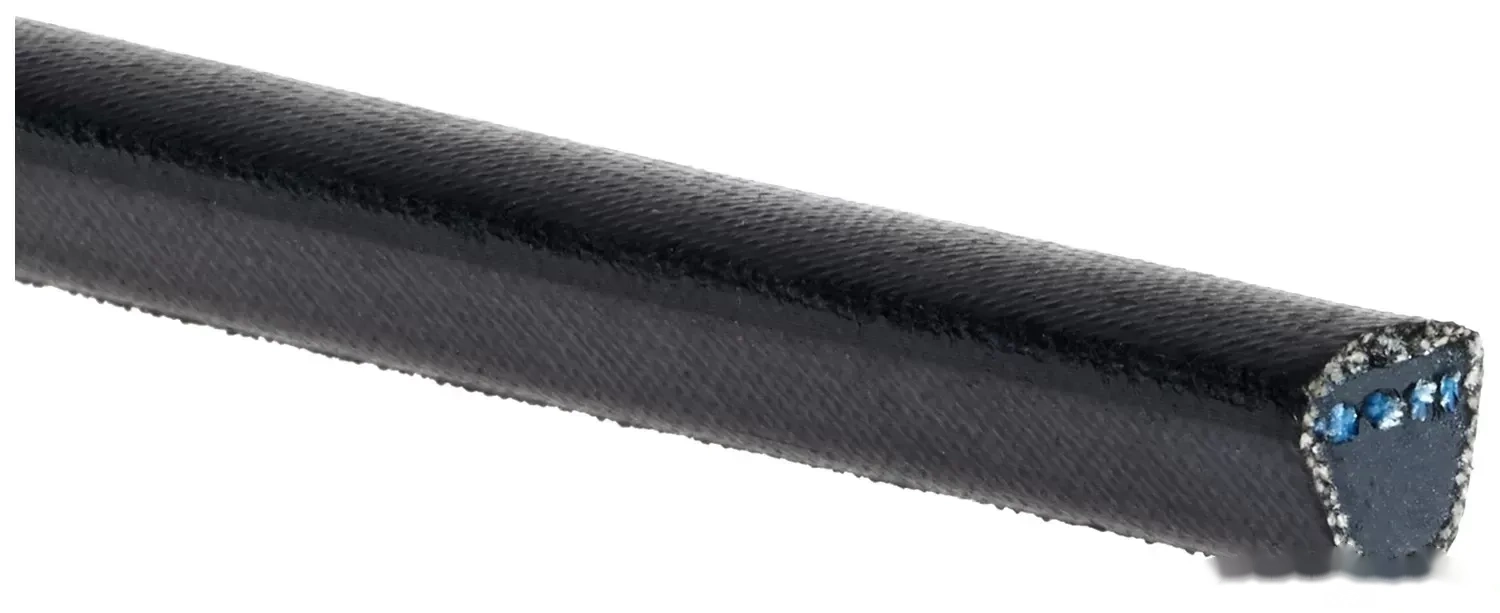

Gates Super HC V-Belt - 8V2500

Upgrade your drive system with the Gates Super HC V-Belt, designed to deliver superior power transmission while saving space. This narrow section V-belt combines the strength of a wrapped belt construction with innovative features, making it a smart choice for both performance and efficiency.

Why Choose Gates Super HC V-Belt?

The Super HC V-Belt offers remarkable advantages over traditional belts. With a capacity increase of up to 300%, this belt allows for more compact drive designs without sacrificing performance. It’s an ideal solution for those looking to optimize their systems while keeping costs down.

Key Features

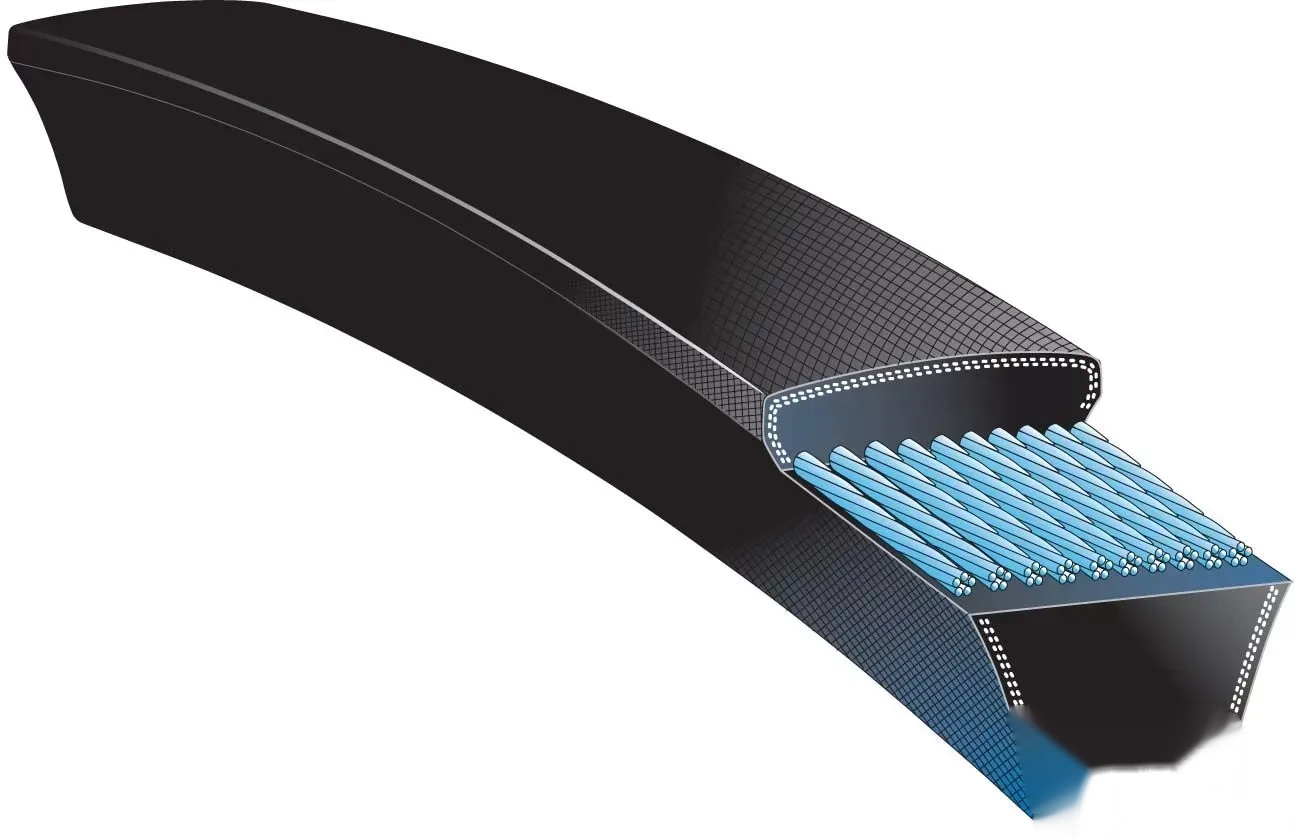

• Proprietary Flex-Weave Cover: This patented fabric construction safeguards the belt core from oil, contaminants, and heat, extending the belt's lifespan.
• Flex-Bonded Cords: These cords are securely bonded to the belt body, ensuring equal load distribution and enhancing resistance to fatigue and shock loads.
• Precision Machined Edge: The belt edge is expertly machined for consistent pulley groove contact, resulting in smoother operation and reduced wear.
• Durability Standards: Meets RMA oil and heat resistance standards alongside static conductivity requirements.
• Temperature Range: Operates efficiently in temperatures from -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 8V
• Number of Strands: 1
• Top Width: 25 mm
• Outside Circumference: 6350 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Available Options

The Gates Super HC V-Belt is available in various cross-sections, including 3V, 5V, and 8V, as well as Super HC PowerBand joined V-belts, ensuring you find the perfect fit for your application.

Conclusion

With its innovative design and robust construction, the Gates Super HC V-Belt is the perfect choice for those seeking reliability and efficiency in their drive systems. Experience the difference today!
