Key Features

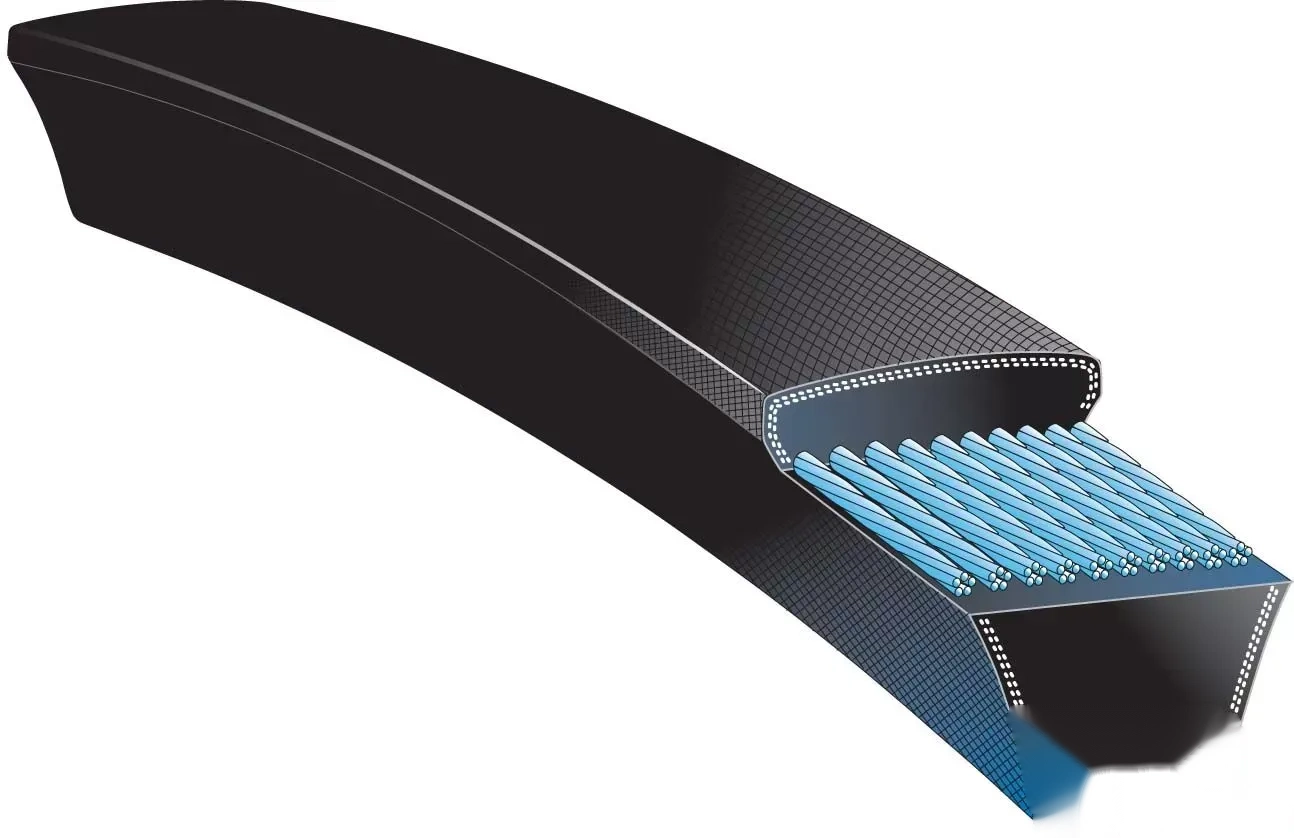

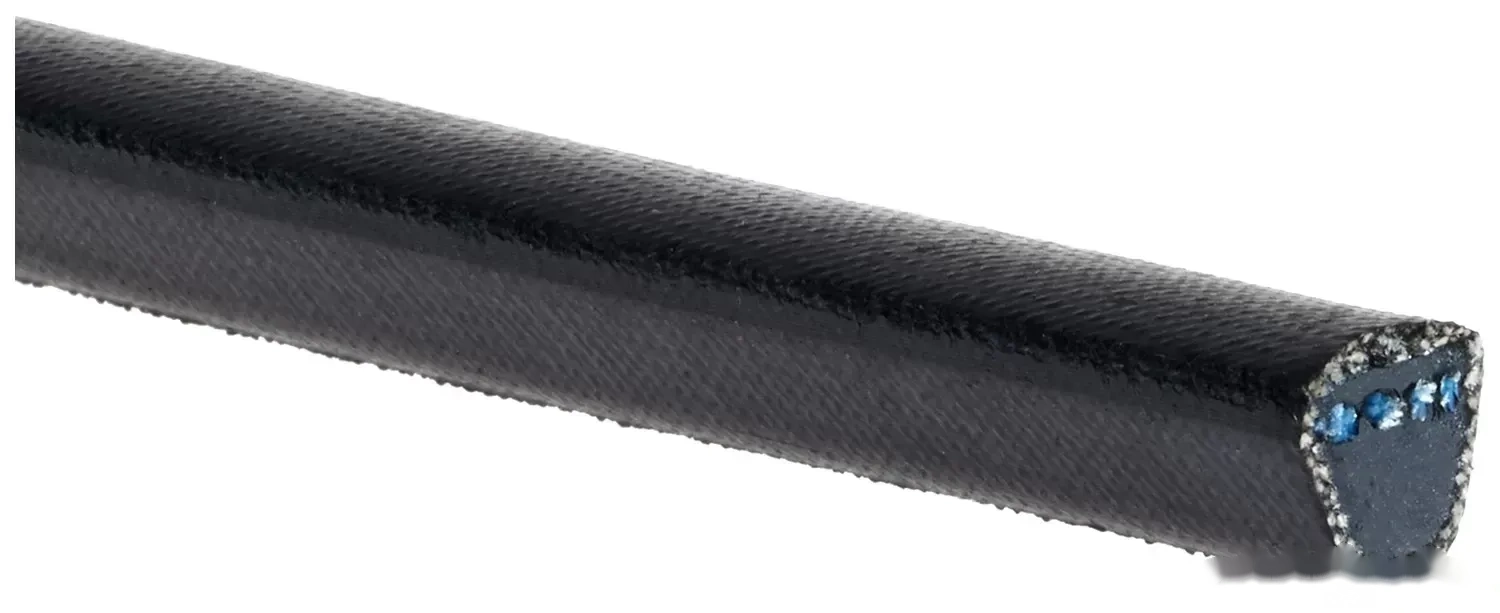

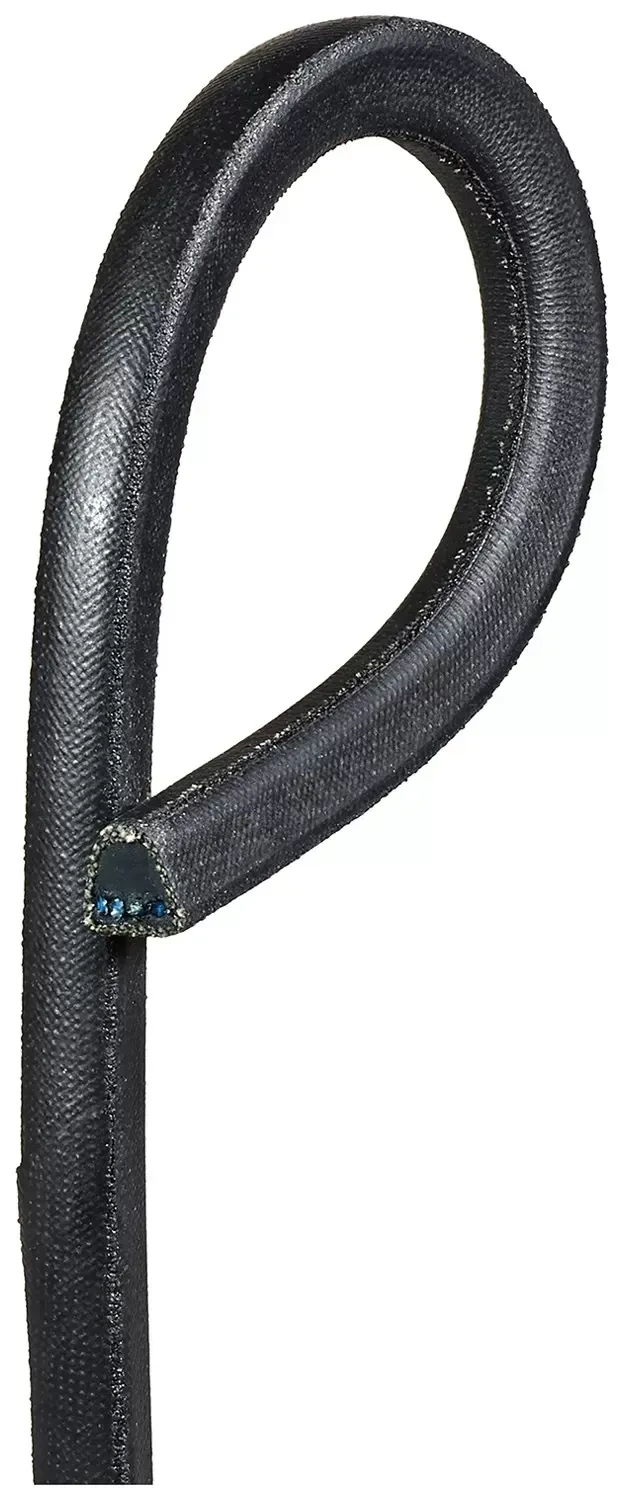

The Gates Super HC V-Belt is engineered to deliver exceptional performance while optimizing space. With a unique wrapped belt construction, this narrow section V-belt transmits more power in less area, making it ideal for compact drive designs. Here’s why the 8V5600 stands out:

• Increased Capacity: Experience up to a 300% increase in capacity compared to classical belts.
• Durable Construction: The proprietary Flex-Weave cover is designed to protect the belt core from oil, contaminants, and heat, ensuring a longer lifespan.
• Superior Load Distribution: Flex-bonded cords provide excellent resistance to fatigue and shock loads, absorbing bending stress without deterioration.
• Optimized Edge Design: The machined belt edge ensures even contact with pulley grooves, resulting in smoother operation and reduced wear.
• Heat and Oil Resistance: Meets RMA standards for oil and heat resistance, plus static conductivity requirements.
• Temperature Range: Operates effectively in temperatures from -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 8V
• Number of Strands: 1
• Top Width: 25 mm
• Outside Circumference: 14224 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment

The Gates Super HC 8V5600 V-Belt is available in various cross-sections, including 3V, 5V, and 8V, as well as in Super HC PowerBand joined configurations, ensuring compatibility with a wide range of applications.
