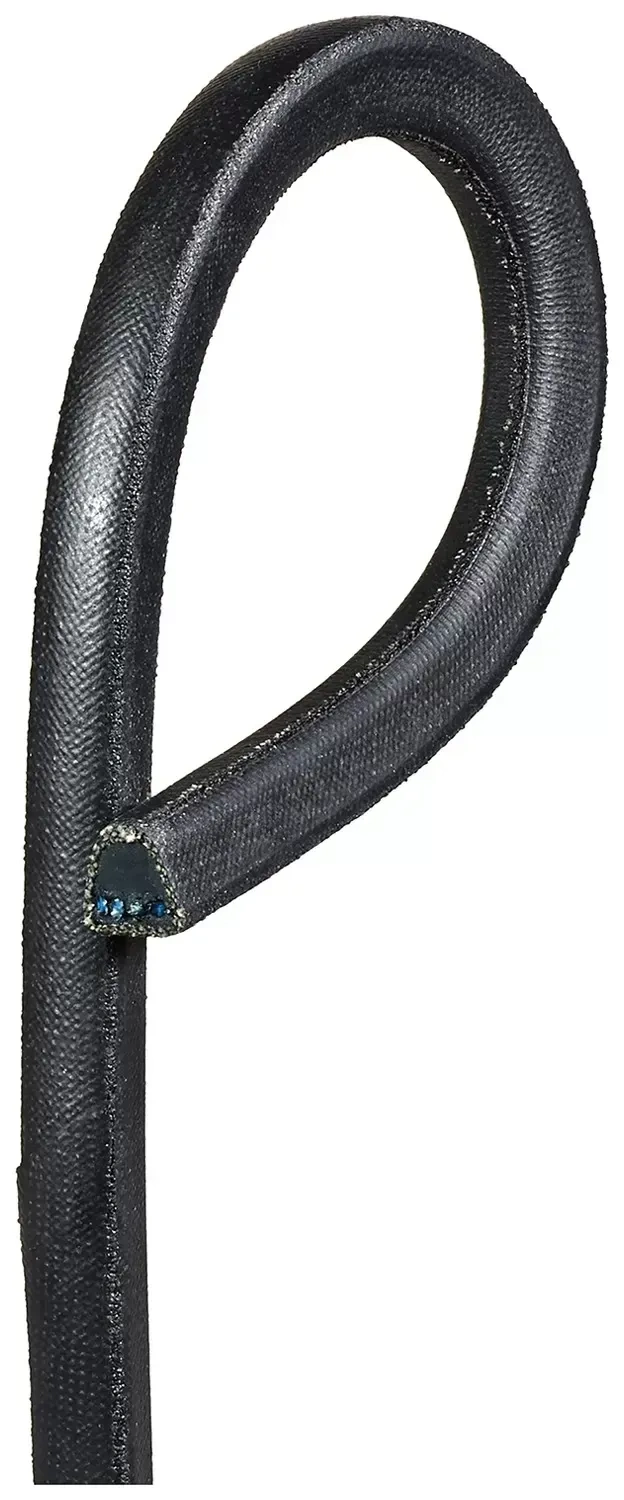

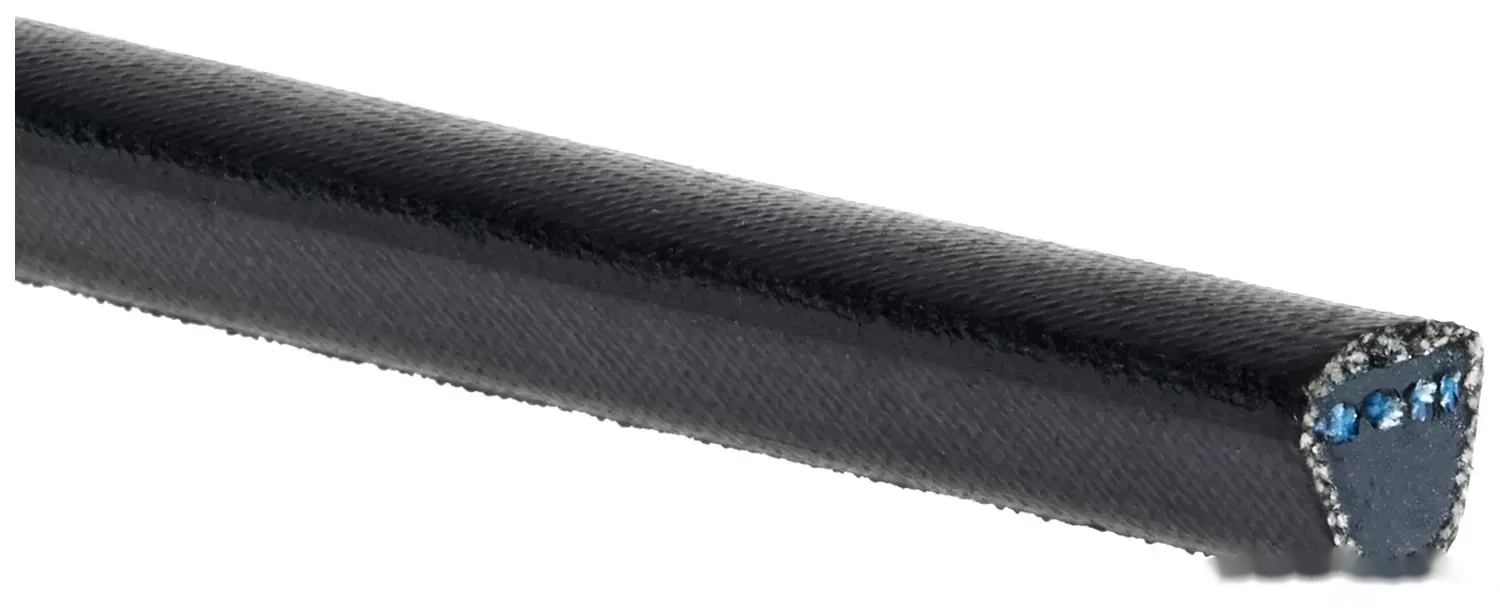

Gates Super HC V-Belt 5V1600

The Gates Super HC V-Belt 5V1600 is engineered to deliver exceptional power transmission in a compact design. With its unique wrapped construction, this narrow section V-belt not only maximizes efficiency but also minimizes the space required for installation. Say goodbye to bulky belts and hello to a streamlined solution that saves you both space and money.

Key Features

• Up to 300% capacity increase compared to traditional belts.
• Proprietary Flex-Weave cover offers superior protection against oil, contaminants, and heat, extending the lifespan of the belt.

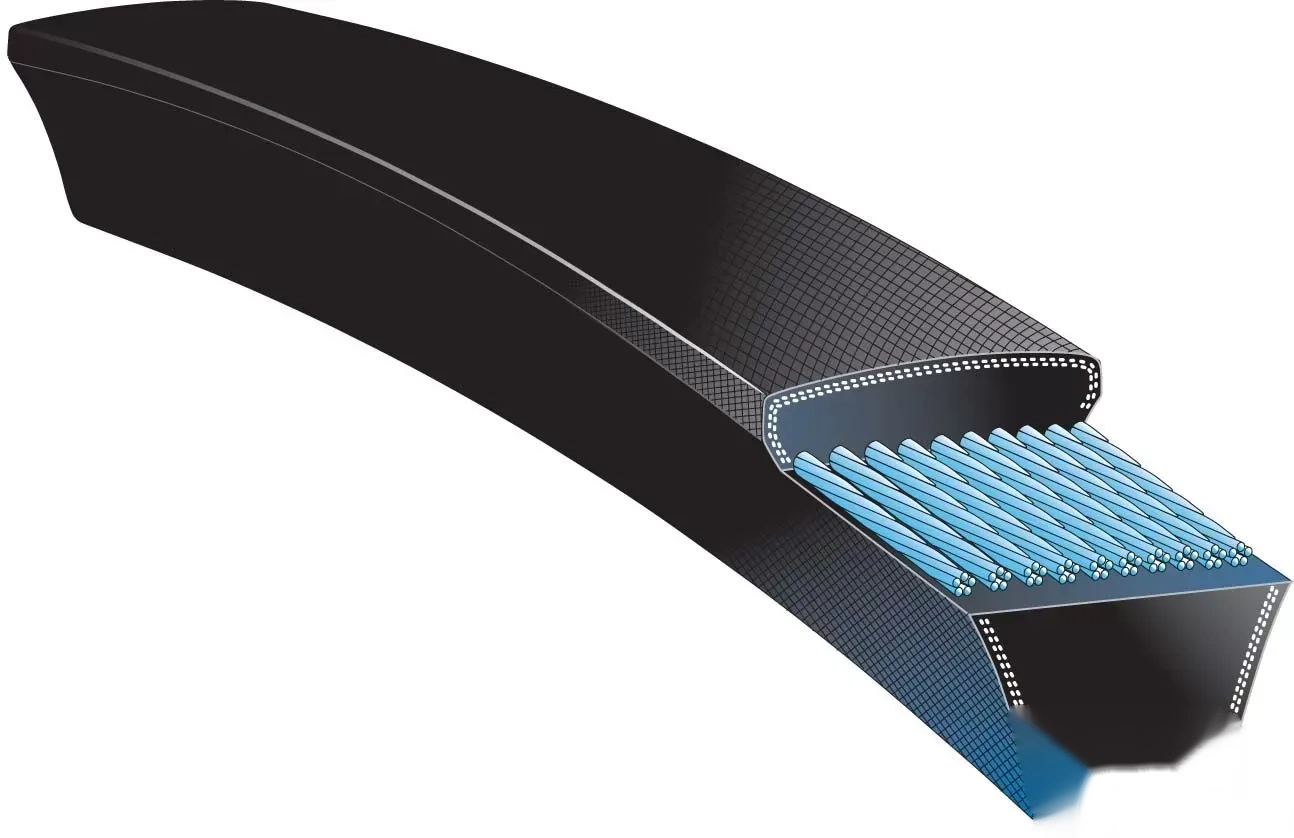

• Flex-bonded cords ensure strong attachment to the belt body, allowing for even load distribution and resistance to fatigue and shock loads.
• Precision-machined belt edge for optimal pulley groove contact, resulting in smoother operation, reduced slip, and decreased wear.
• Complies with RMA oil and heat resistance standards and meets static conductivity requirements.
• Temperature Range: -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 5V
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 4064 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment

This versatile V-belt is available in various cross-sections including 3V, 5V, and 8V, as well as Super HC PowerBand joined V-belts, making it suitable for a wide range of applications.

Upgrade your drive system with the Gates Super HC V-Belt 5V1600 and experience the difference in performance and durability!
