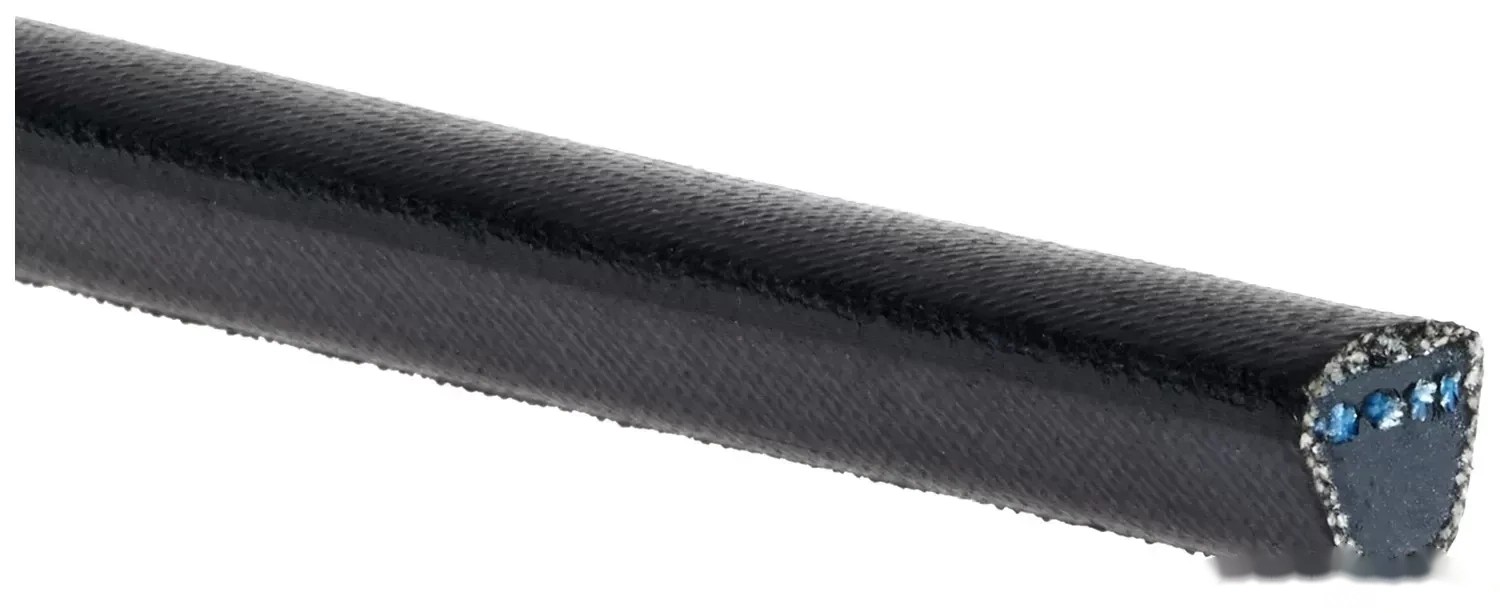

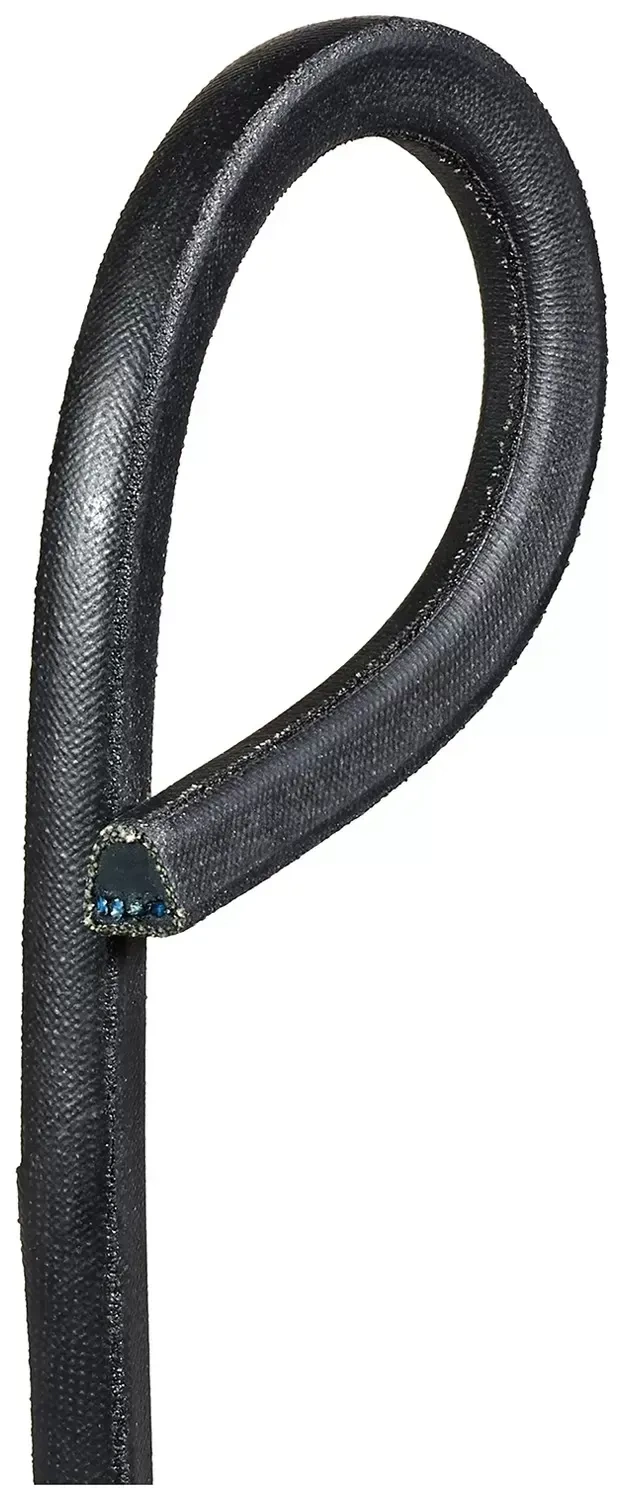

Gates Super HC 5V1900 V-Belt

Experience a new level of efficiency with the Gates Super HC 5V1900 V-Belt. This innovative belt merges the robust construction of a wrapped belt with the compact design of a narrow section V-belt, allowing for superior power transmission in limited spaces. It’s engineered to deliver up to a 300% increase in capacity compared to traditional belts, making it an ideal choice for those looking to optimize their drive systems while reducing overall costs.

Key Features

• Exceptional Capacity: Up to 300% more power capacity than classical belts.
• Durable Flex-Weave Cover: This patented fabric construction shields the belt core from oil, contaminants, and heat, resulting in longer belt life.

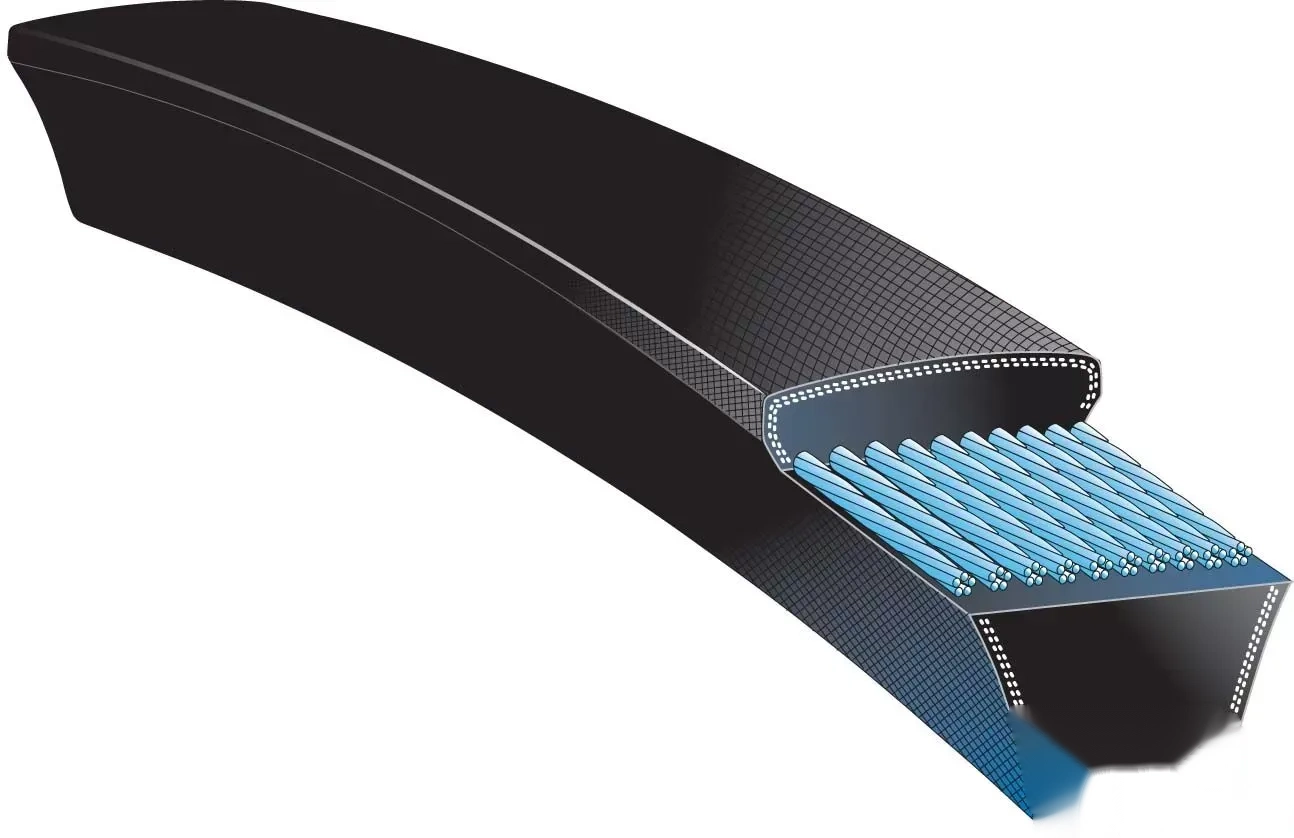

• Flex-Bonded Cords: Strongly forged to the belt body, these cords ensure equal load distribution, enhanced resistance to fatigue and shock loads, and effective absorption of bending stress without deterioration.
• Precision Machined Edges: The belt edges are machined for optimal pulley groove contact, promoting smoother operation and reducing slip and wear.
• Heat and Oil Resistance: Meets RMA standards for oil and heat resistance, as well as static conductivity requirements.
• Wide Temperature Range: Operates effectively in temperatures from -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 5V
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 4826 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment Options

The Gates Super HC V-Belts are available in various cross-sections, including 3V, 5V, and 8V, along with Super HC PowerBand joined V-belts, ensuring you can find the perfect fit for your specific application.

Choose the Gates Super HC 5V1900 V-Belt for a reliable and efficient solution that meets the demands of modern drive systems. With its advanced features and robust construction, this belt is designed to last, providing you with peace of mind and exceptional performance.
