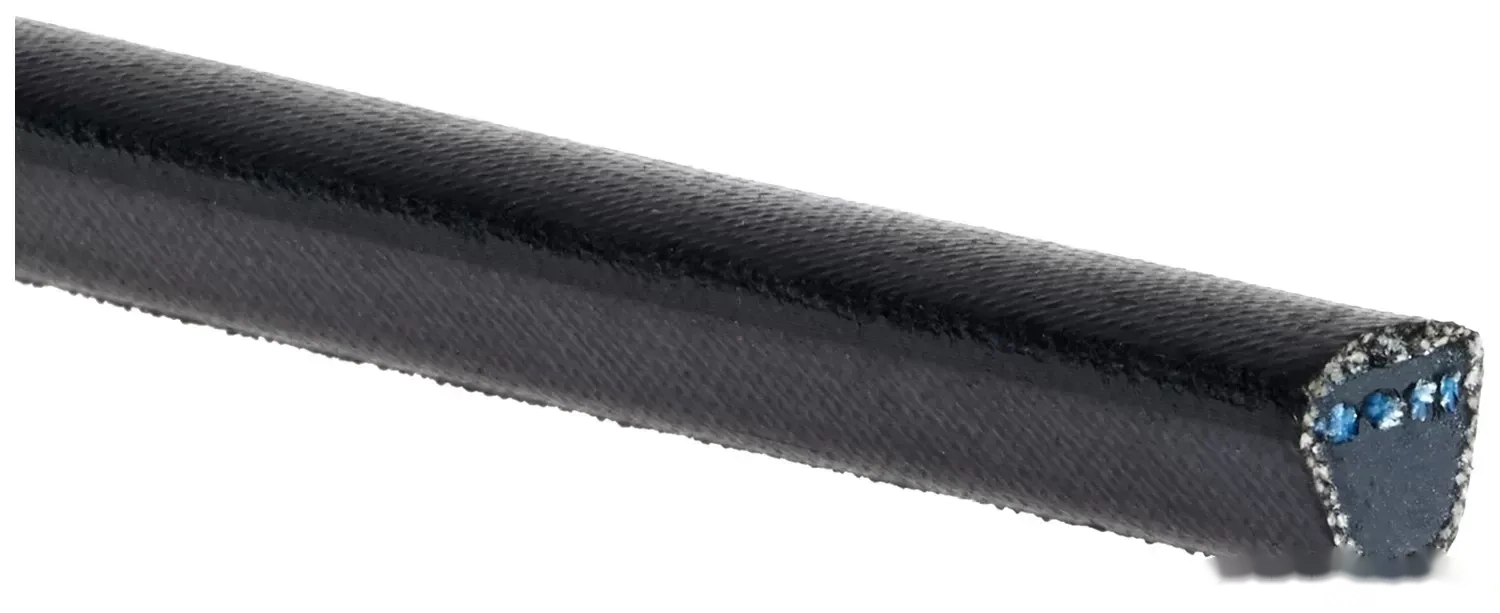

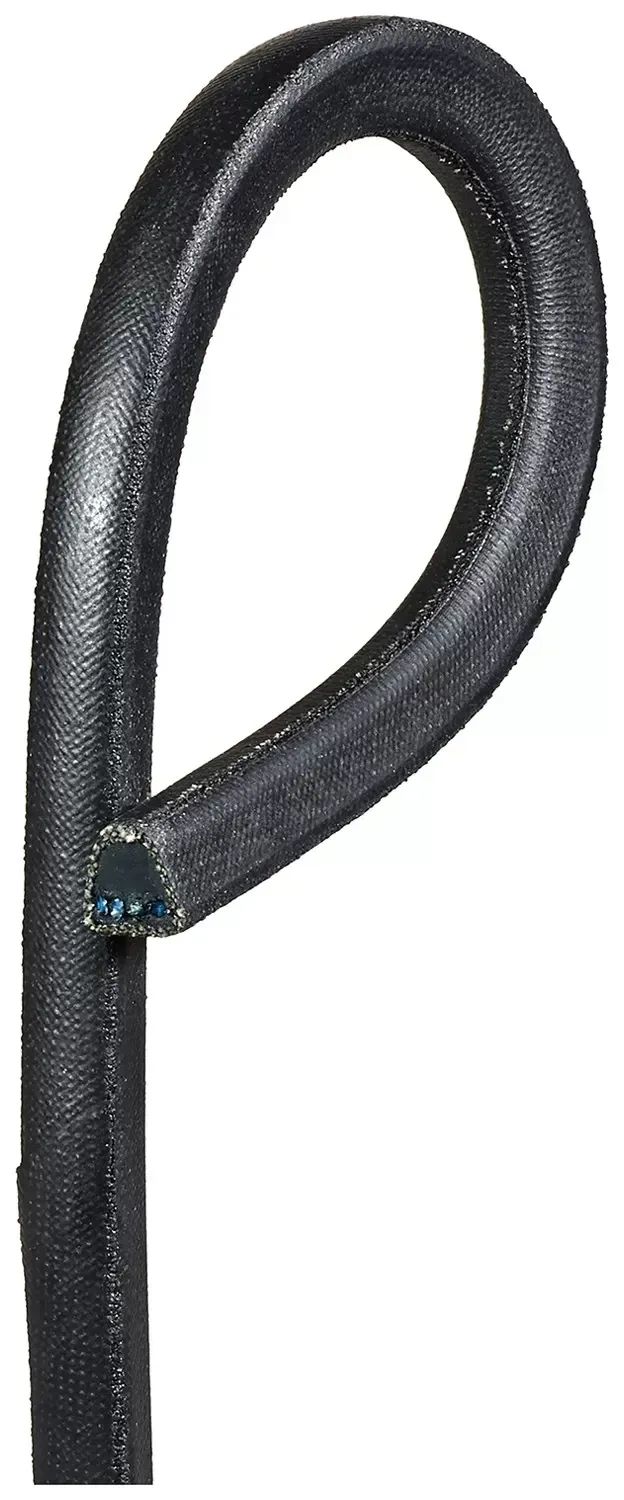

Gates Super HC V-Belt 5V2000

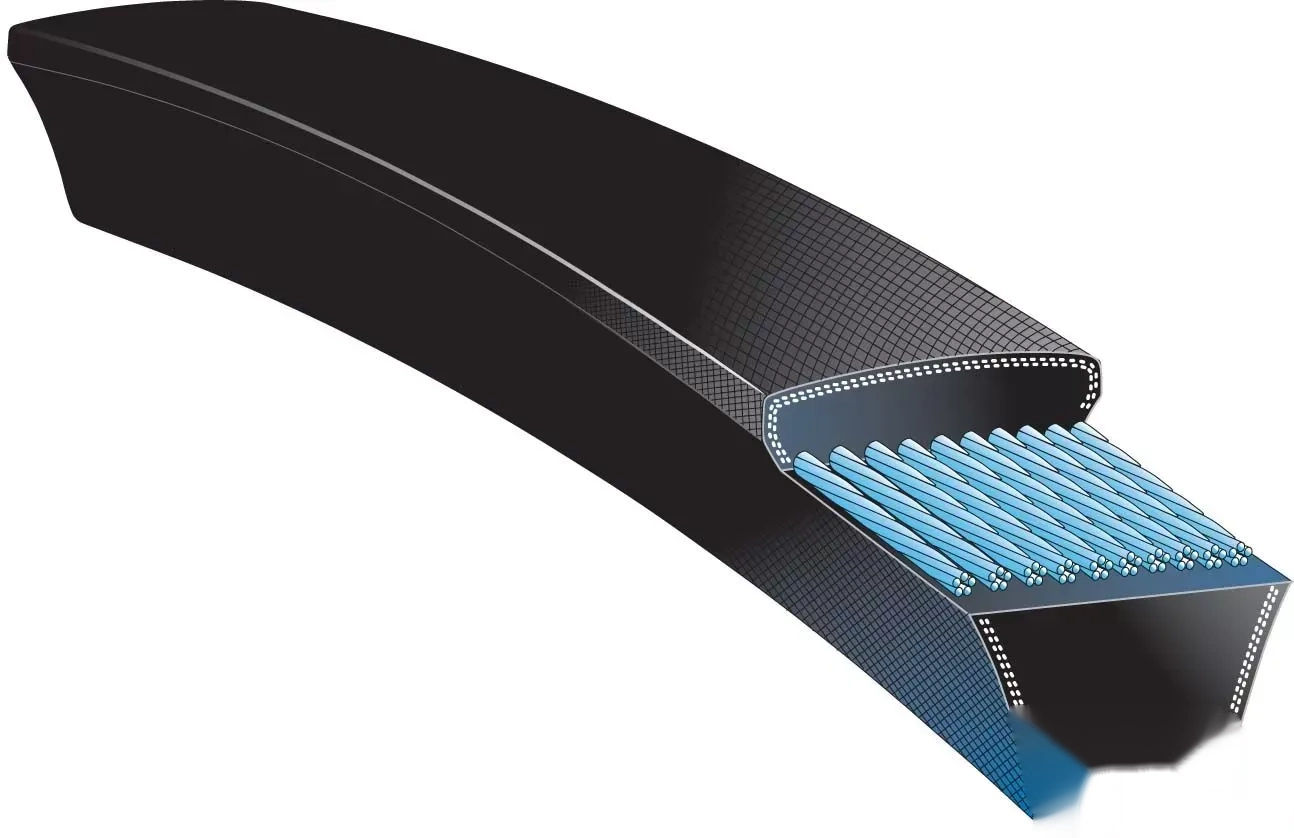

Looking for a V-belt that combines strength with efficiency? The Gates Super HC V-Belt 5V2000 is your answer! This belt features a unique wrapped construction that delivers exceptional power transmission while saving space, making it ideal for compact drive designs.

Key Features

• Increased Capacity: Enjoy up to a 300% capacity increase compared to traditional belts, allowing for more power in a smaller footprint.
• Patented Flex-Weave Cover: This exclusive fabric construction protects the belt core from oil, contaminants, and heat, contributing to a longer lifespan.
• Flex-Bonded Cords: These cords are securely integrated into the belt body, ensuring equal load distribution and resistance to fatigue, shock loads, and bending stress.
• Precision-Machined Edges: The belt edge is expertly machined for optimal pulley groove contact, resulting in smoother operation with minimal slip and wear.
• Meets Industry Standards: This belt complies with RMA oil and heat resistance standards, as well as static conductivity requirements.
• Temperature Range: Operates efficiently in temperatures ranging from -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 5V
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 5080 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment

The Gates Super HC V-Belt 5V2000 is available in various cross-sections, including 3V, 5V, and 8V, along with Super HC PowerBand joined V-belts, ensuring compatibility with a wide range of applications.

Why Choose Gates Super HC V-Belts?

Choosing the Gates Super HC V-Belt means investing in durability and performance. With its innovative design and superior materials, this belt not only meets but exceeds expectations, making it a smart choice for anyone looking to optimize their drive systems.
