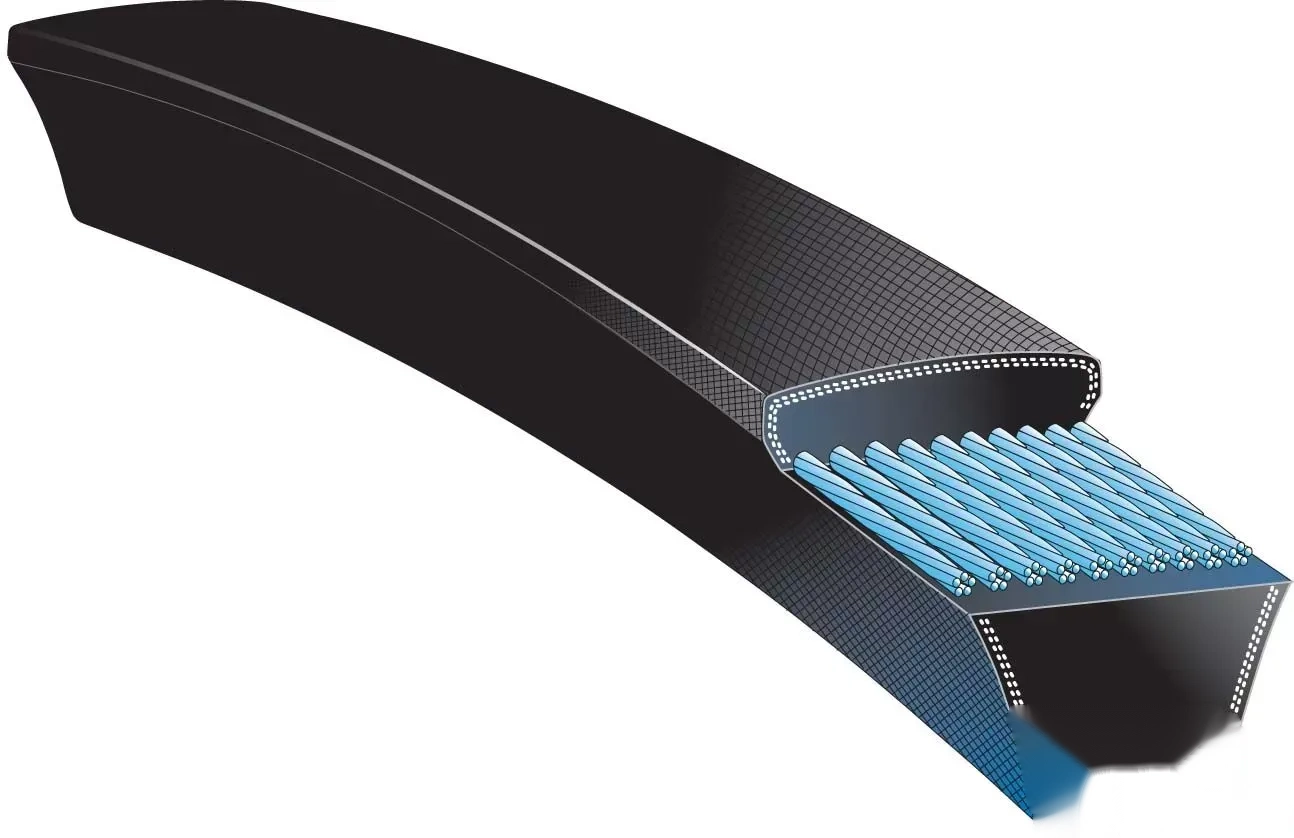

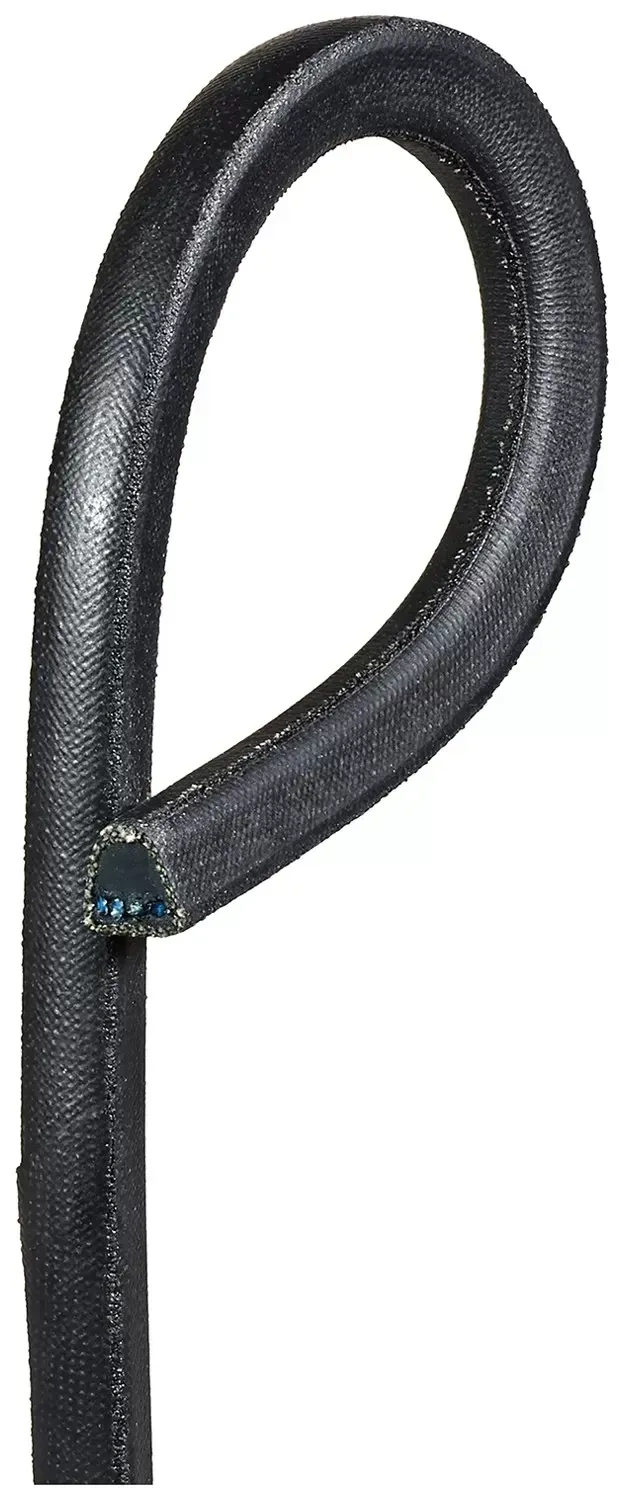

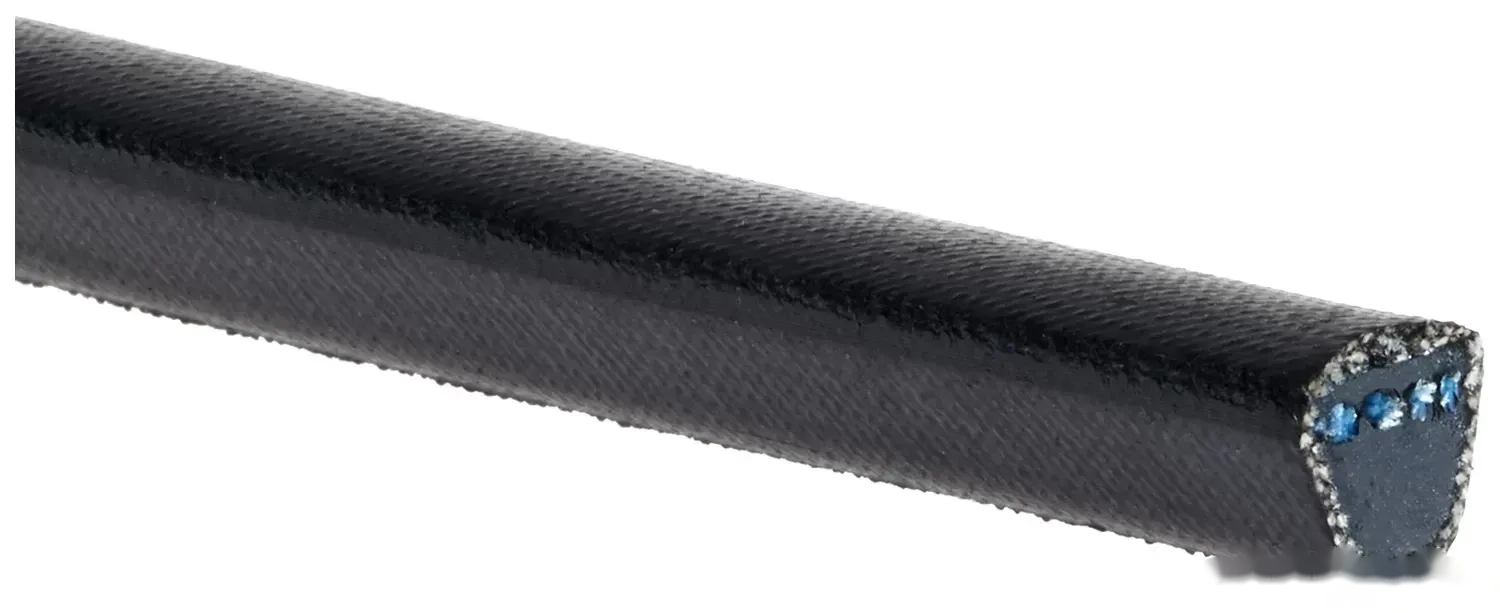

Gates Super HC V-Belt 5V3000

Looking for a reliable and powerful V-belt that maximizes performance while minimizing space? The Gates Super HC V-belt is your solution! This innovative belt combines the robust construction of a wrapped design with the efficiency of a narrow section, delivering impressive power transmission in a compact format.

Key Benefits

• Increases capacity by up to 300% compared to traditional belts, allowing for a more efficient drive system.
• Exclusive Flex-Weave cover protects the core from oil, contaminants, and heat, significantly extending the belt's lifespan.
• Flex-bonded cords enhance durability by ensuring equal load distribution, resisting fatigue and shock loads, and absorbing bending stress without deterioration.
• Precision-machined belt edges ensure optimal contact with pulley grooves for smoother operation, reduced slippage, and minimized wear.
• Complies with RMA oil and heat resistant standards and meets static conductivity requirements.
• Temperature range: -22°F to +140°F (-30°C to +60°C), making it suitable for various environments.

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 5V
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 7620 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment

The Gates Super HC V-belt is available in various cross-sections, including 3V, 5V, and 8V, as well as PowerBand joined V-belts, ensuring compatibility with a wide range of applications.

Why Choose Gates?

With Gates' exclusive construction features and commitment to quality, you can trust that the Super HC V-belt will deliver exceptional performance and longevity, making it a smart investment for your drive system.
