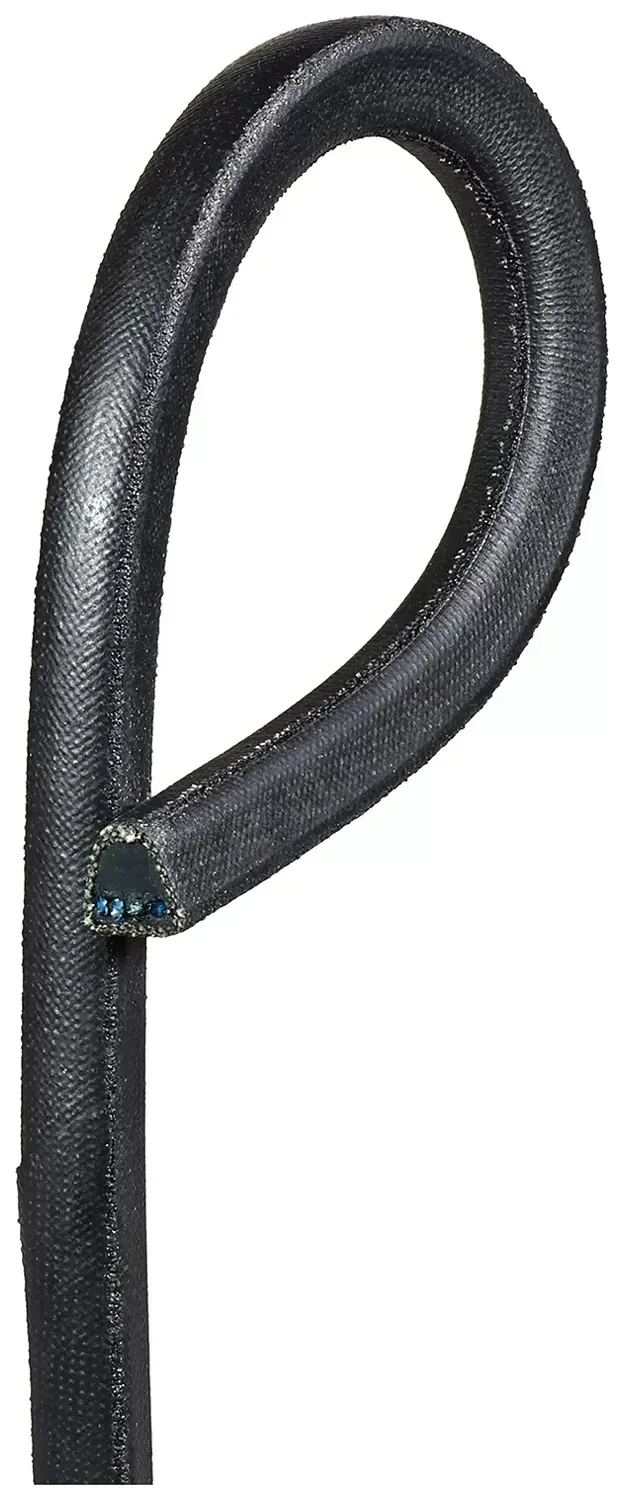

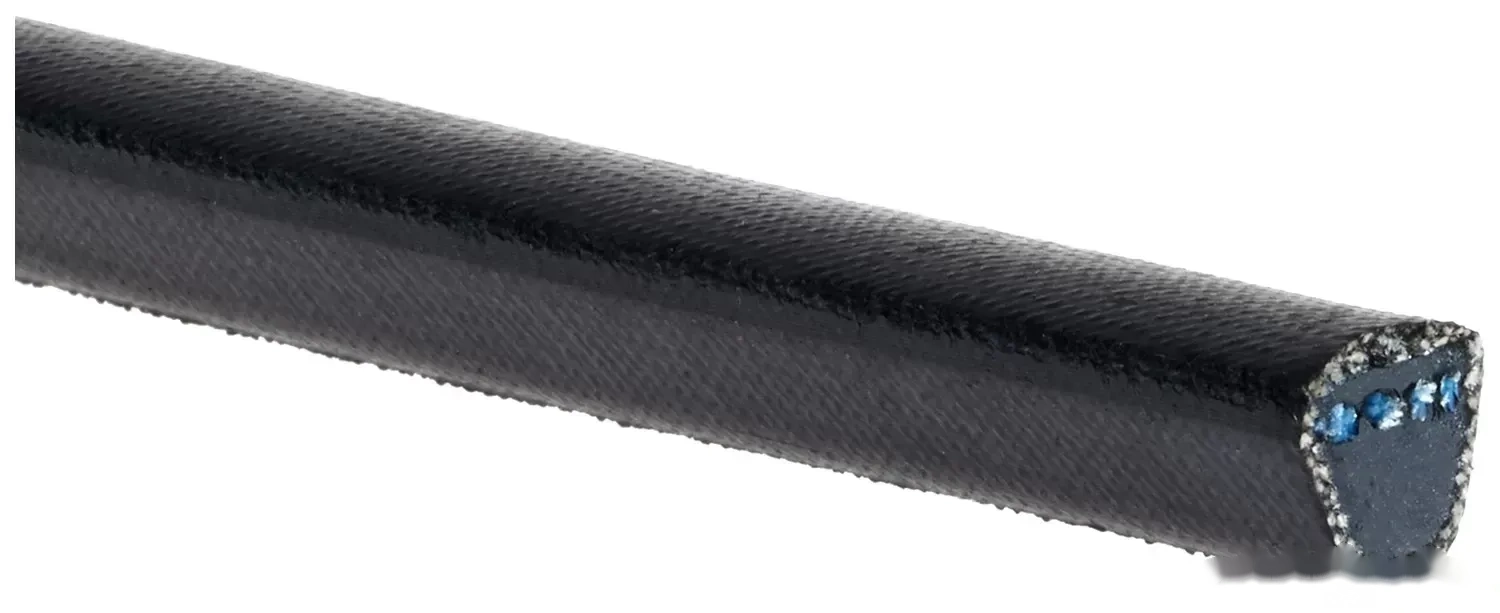

Gates Super HC V-Belt 5V3350

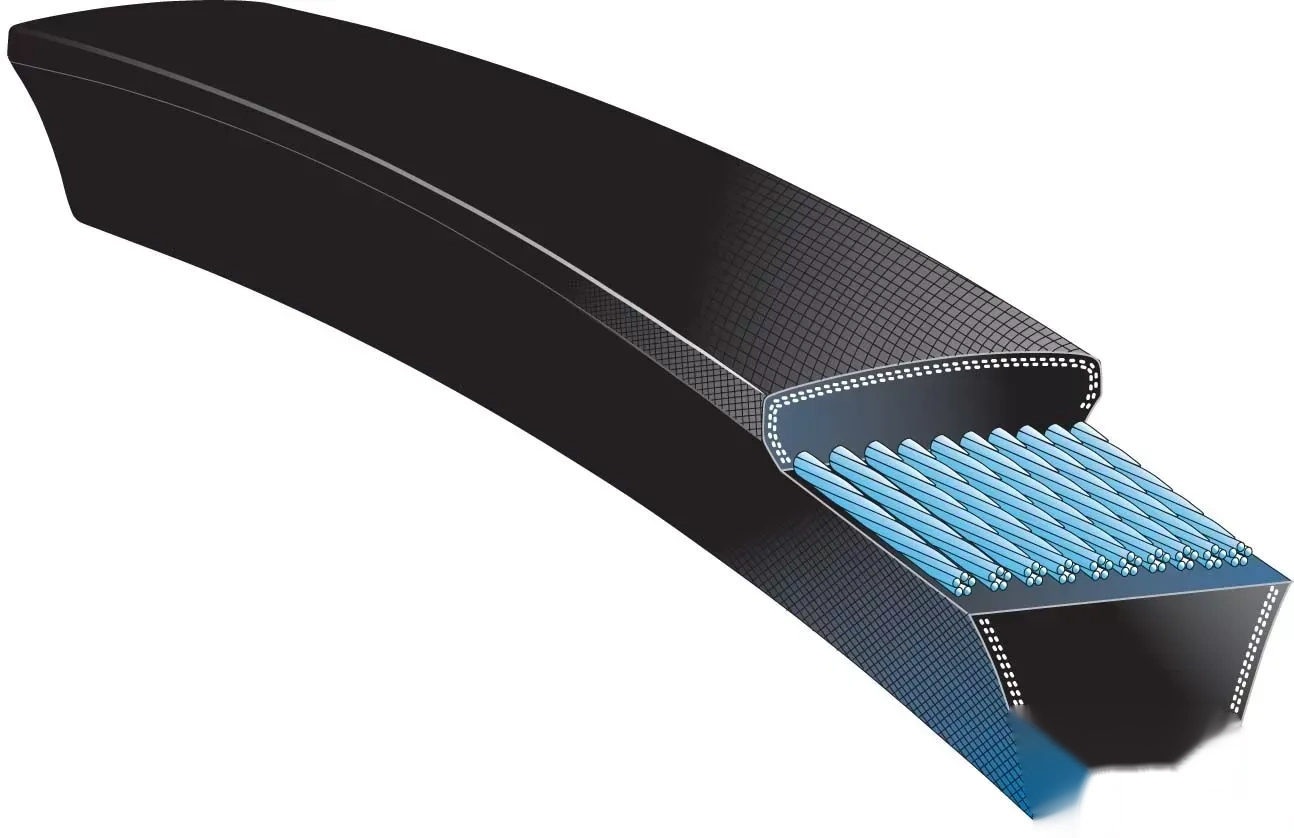

The Gates Super HC V-Belt 5V3350 is designed to deliver exceptional power transmission while optimizing space in your drive system. With its innovative wrapped belt construction, this narrow section V-belt provides a significant boost in performance compared to traditional belts.

Key Benefits

• Up to 300% capacity increase over classical belts, allowing for a more compact drive design.
• Exclusive Flex-Weave cover protects the belt core from oil, contaminants, and heat, extending the lifespan of the belt.
• Flex-bonded cords ensure strong integration with the belt body, promoting equal load distribution and enhanced resistance to fatigue and shock loads.
• Precision-machined belt edges provide even pulley groove contact, resulting in smoother operation with reduced slip and wear.
• Complies with RMA oil and heat resistant standards and meets static conductivity requirements.
• Operates effectively within a temperature range of -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 5V
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 8509 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment

The Gates Super HC V-Belt 5V3350 is available in various cross-sections, including 3V, 5V, and 8V, as well as joined Super HC PowerBand V-belts, making it a versatile choice for a range of applications.

Why Choose Gates?

With a legacy of reliability and innovation, Gates products are trusted by professionals and enthusiasts alike. The Super HC V-Belt not only meets but exceeds performance expectations, ensuring that your equipment runs smoothly and efficiently.
