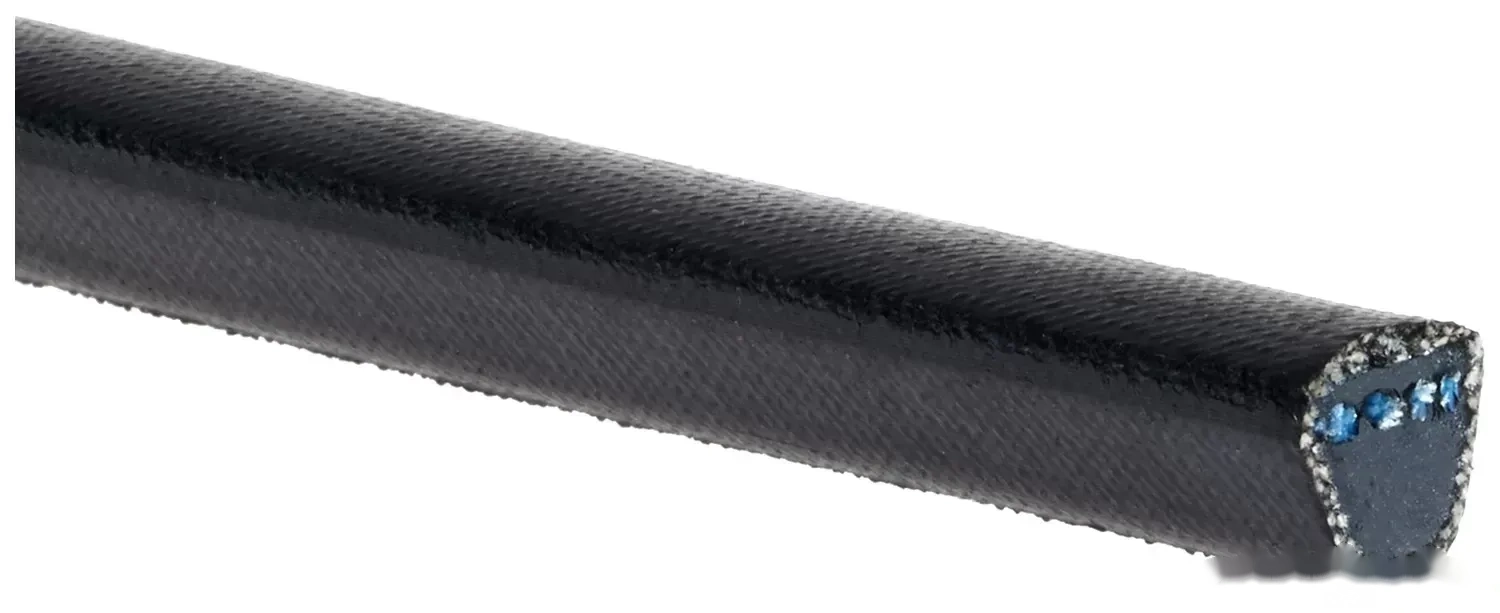

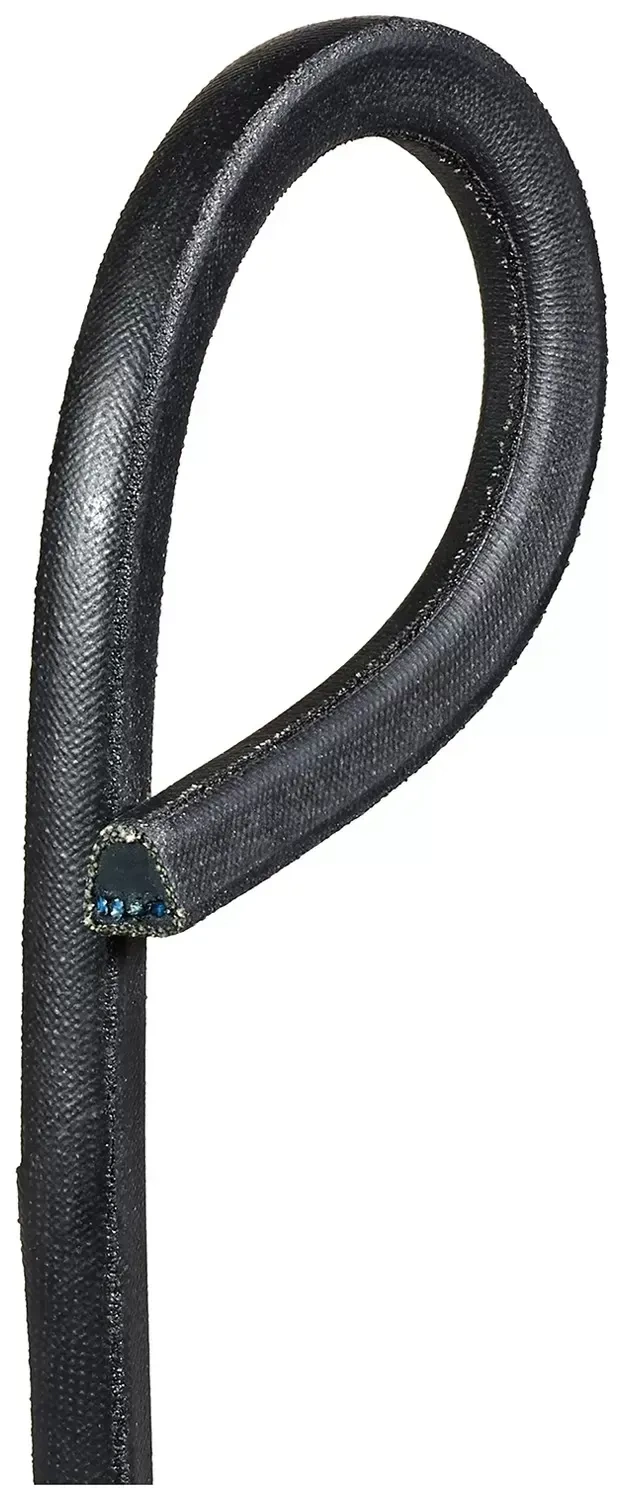

Gates Super HC V-Belt 5V3550

The Gates Super HC V-Belt 5V3550 is designed to deliver exceptional performance while maximizing efficiency in a compact design. With its innovative wrapped construction, this narrow section V-belt transmits more power within a smaller space compared to traditional V-belts. This means you can achieve higher performance without the bulk, significantly reducing overall drive costs.

Key Features

• Increased Capacity: Enjoy up to a 300% capacity increase over classical belts, making it a powerhouse for your applications.
• Durable Construction: The proprietary Flex-Weave cover is engineered to provide extended protection against oil, contaminants, and heat, ensuring a longer belt life.

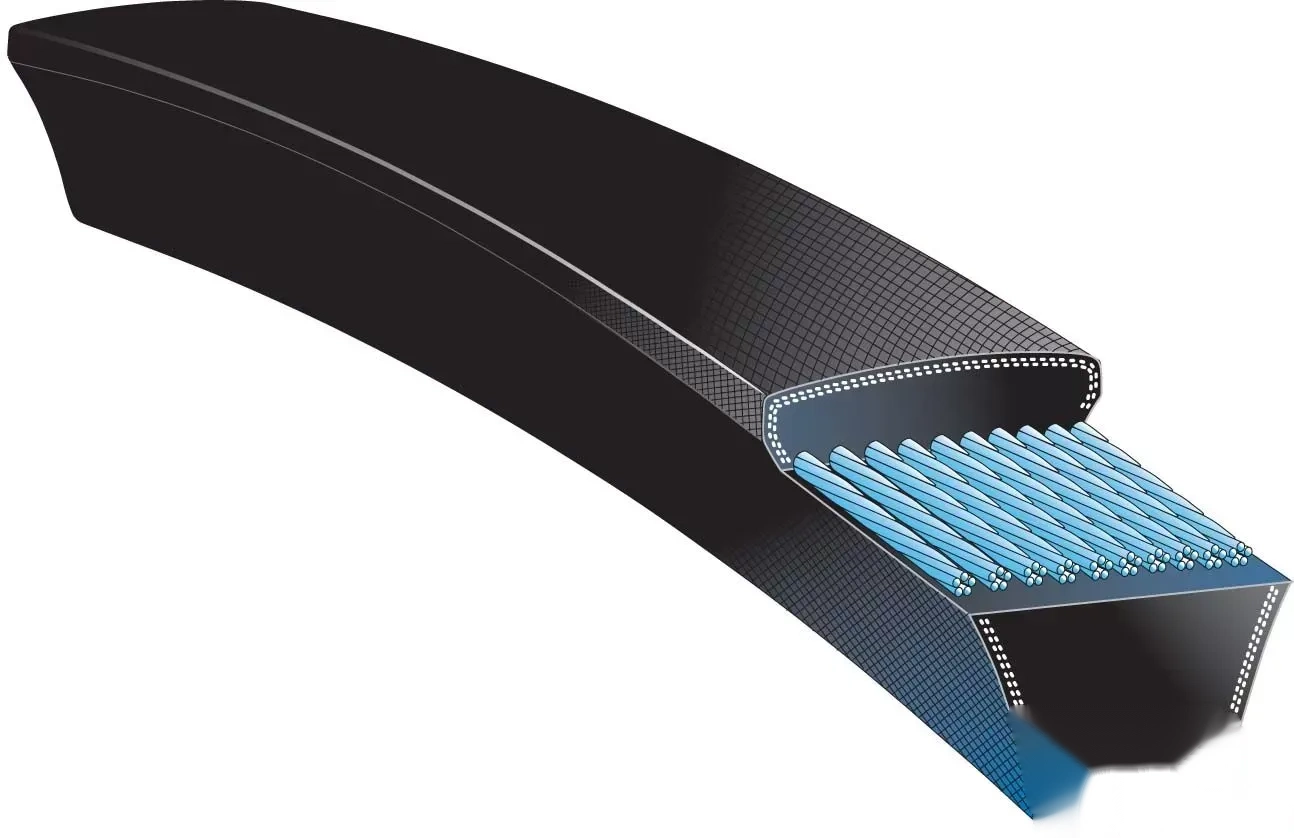

• Strong Cord Design: Flex-bonded cords are firmly integrated into the belt body, promoting equal load distribution and resistance to fatigue and shock loads.
• Precision Machined Edges: The belt edge is precisely machined for optimal pulley groove contact, resulting in smoother operation with reduced slip and wear.
• Resistant to Harsh Conditions: Complies with RMA oil and heat resistant standards and meets static conductivity requirements.
• Temperature Range: Operates effectively in a wide temperature range from -22°F to +140°F (-30°C to +60°C).

Specifications

• Type: Narrow Section Wrapped V-Belt
• Section: 5V
• Number of Strands: 1
• Top Width: 16 mm
• Outside Circumference: 9017 mm
• Construction: Wrapped
• Notched: No
• Belt Material: Neoprene
• Cord Material: Polyester

Fitment Information

The Gates Super HC V-Belt is available in 3V, 5V, and 8V cross-sections, along with Super HC PowerBand joined V-belts, making it versatile for various applications. Whether you’re upgrading your machinery or maintaining your equipment, this belt is engineered to meet your needs.

Choose the Gates Super HC V-Belt 5V3550 for a reliable, high-performance solution that stands the test of time.
