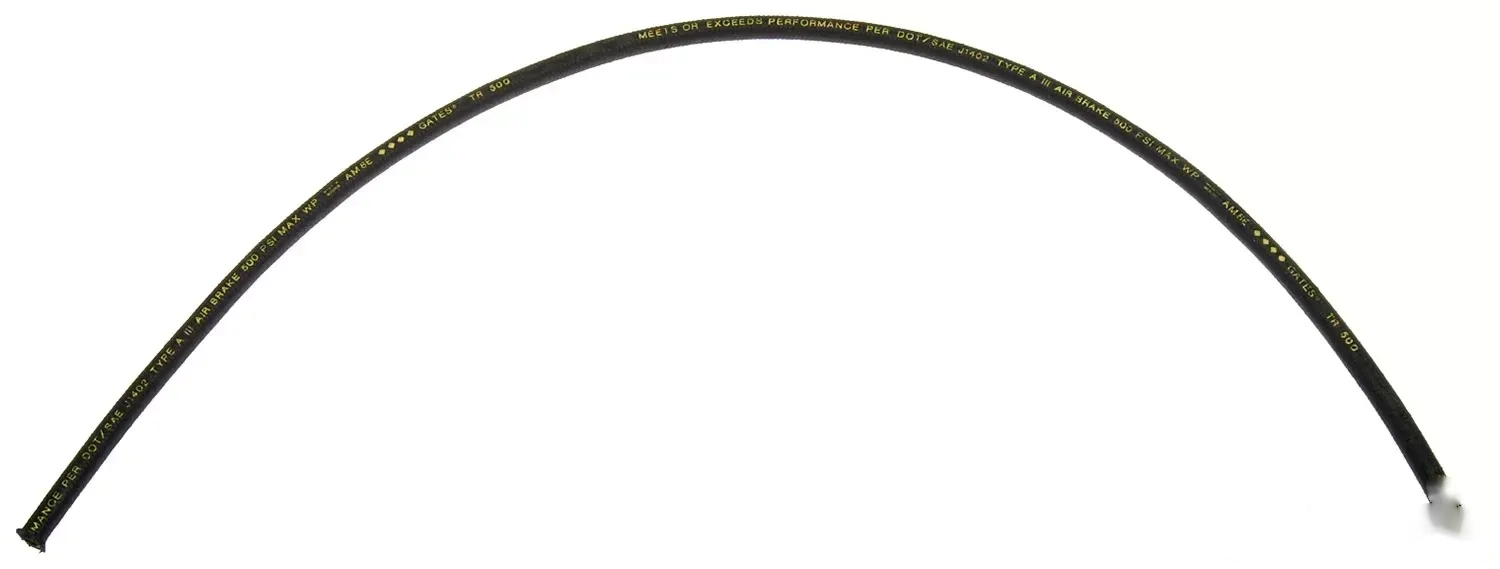

Gates TR500 High-Temp Air Brake Hose

The Gates TR500 High-Temp Air Brake Hose is designed for a variety of demanding applications, making it a reliable choice for professionals in the automotive and industrial sectors. This hose is ideal for air brake systems, high-temperature pressurized oil return lines, rotary oil/air compressor lines, and engine and transmission coolant lines. However, it’s important to note that this hose is not suitable for gasoline or diesel fuel applications.

Key Features

• Product Type: TR500 High-Temp - Air Brake - Engine Hose
• Industrial Description: 4TR500X50FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Medium Pressure
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Length: 50 ft
• Dash Size: 4
• Hose Inside Diameter: 0.25 in
• Hose Outside Diameter: 0.51 in
• Minimum Bend Radius: 1 in
• Vacuum: 30 inHg
• Tube Description: Black
• Tube Material: Nitrile - Type C

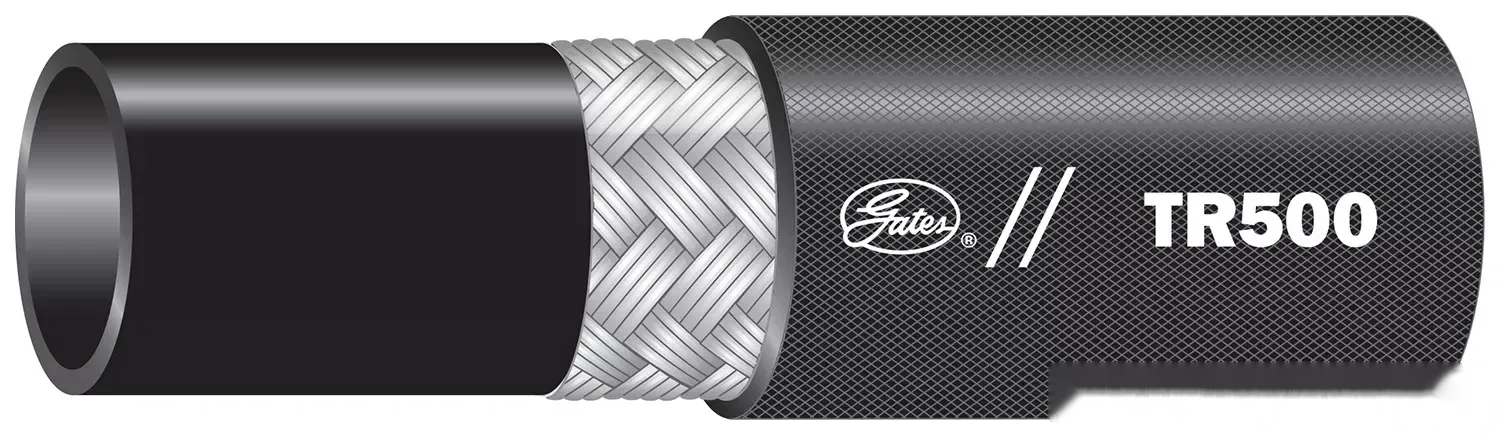

• Reinforcement: One Braid of High-Tensile Steel Wire
• Cover Material: Textile Braid Impregnated with Synthetic Rubber
• Cover Type: Oil & Mildew Resistant
• Cover Color: Black
• Coupling Recommendation: GLP, MegaCrimp
• SAE Specification: J1402

Compliance and Safety

This hose meets or exceeds DOT FMVSS 106-74 and SAE J1402 standards for air brake hoses in sizes -4, -6, -8, and -10. Federal law mandates that any manufacturer producing air brake hose assemblies with swaged or crimped fittings must register with the Department of Transportation. For detailed compliance information, please refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.

Why Choose Gates TR500?

With its robust construction and high-temperature resistance, the Gates TR500 High-Temp Air Brake Hose is built to withstand the rigors of demanding applications. Its durable materials and design ensure long-lasting performance, making it a smart investment for your vehicle or machinery.
