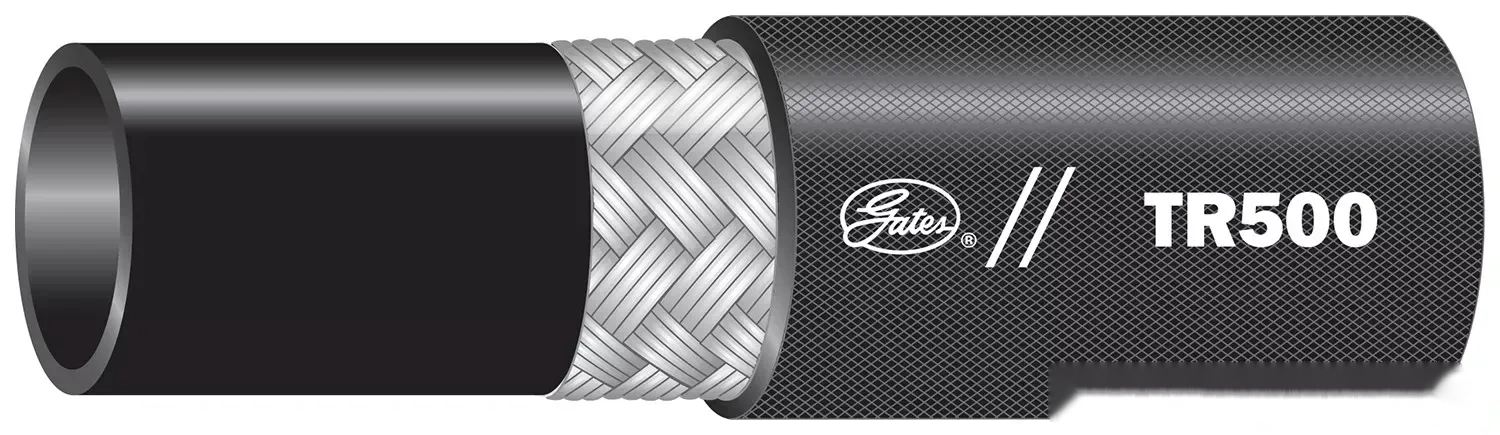

Gates 85747 TR500 High-Temp Air Brake & Engine Hose

The Gates 85747 TR500 High-Temp Hose is designed for a variety of demanding applications, including air brake hoses, high-temperature pressurized oil return lines, rotary oil/air compressor lines, engine and transmission coolant lines, as well as lube oil lines. Please note, this hose is not suitable for gasoline or diesel fuel applications.

Key Features

• Product Type: TR500 High-Temp - Air Brake - Engine Hose
• Industrial Description: 6TR500X50FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Medium Pressure
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Length: 50 ft
• Dash Size: 6
• Hose Inside Diameter: 0.375 in
• Hose Outside Diameter: 0.66 in
• Minimum Bend Radius: 1.8 in
• Vacuum: 30 inHg
• Tube Description: Black Nitrile - Type C
• Reinforcement: One braid of high-tensile steel wire
• Cover Material: Textile braid impregnated with synthetic rubber
• Cover Type: Oil & mildew resistant
• Cover Color: Black
• Coupling Recommendation: GLP, MegaCrimp
• SAE Specification: J1402

Specifications

This hose meets or exceeds the following standards:

• DOT FMVSS 106-74
• SAE J1402 for air brake hose sizes -4, -6, -8, -10

For anyone producing air brake hose assemblies with swaged or crimped fittings, federal law mandates registration with the Department of Transportation. For more details, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.

Fitment

The Gates 85747 is perfect for a variety of fleet applications, ensuring reliable performance in high-temperature and high-pressure environments. Whether you're working on air brake systems or coolant lines, this hose is engineered to meet your needs.
