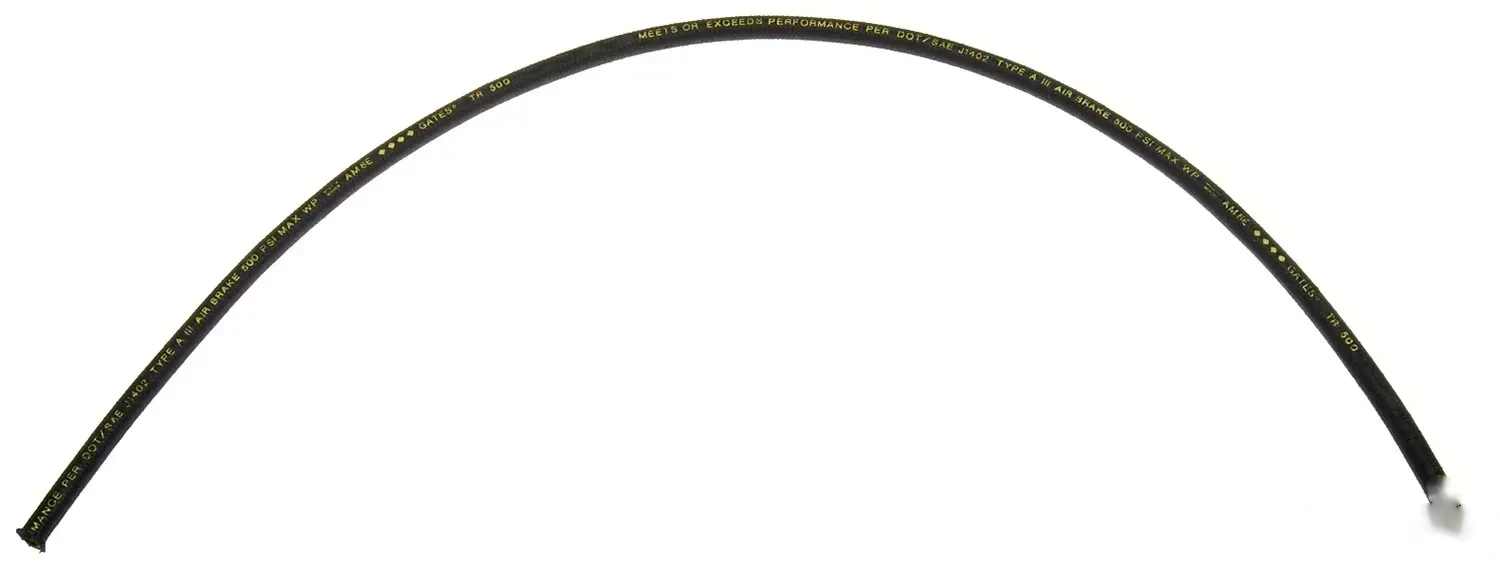

Gates TR500 High-Temp Air Brake Hose

The Gates TR500 High-Temp Air Brake Hose is designed to meet the demanding needs of various applications, including air brake systems, high-temperature pressurized oil return lines, rotary oil/air compressor lines, engine and transmission coolant lines, and lube oil lines. Please note, this hose is not suitable for gasoline or diesel fuel applications.

Key Features

• Product Type: TR500 High-Temp - Air Brake - Engine Hose
• Industrial Description: 8TR500X50FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Medium Pressure
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Length: 50 ft
• Dash Size: 8
• Hose Inside Diameter: 0.5 in
• Hose Outside Diameter: 0.80 in
• Minimum Bend Radius: 2.3 in
• Vacuum Rating: 30 inHg

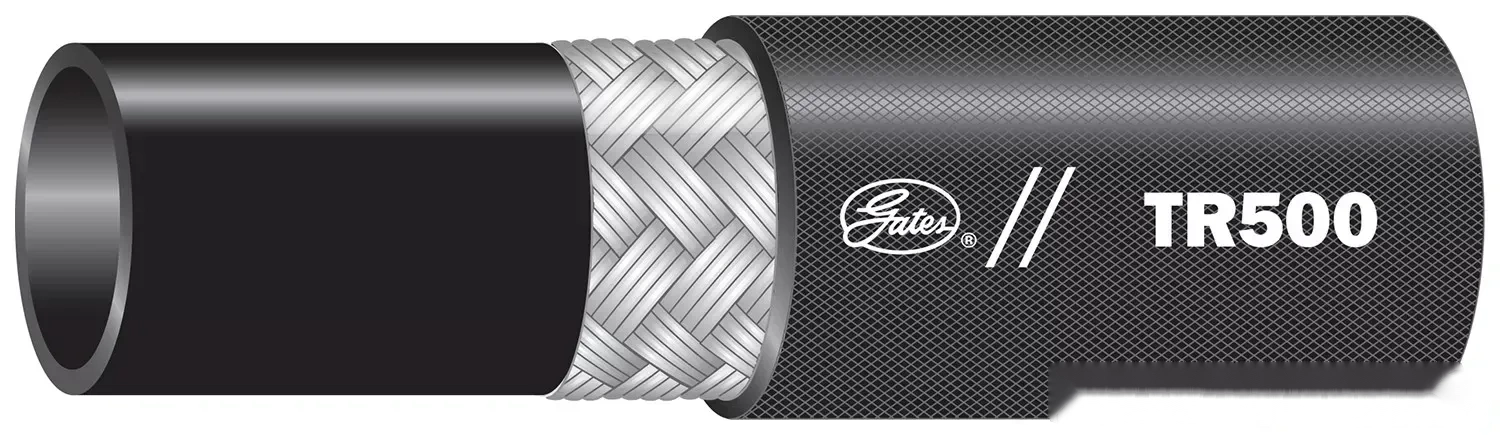

• Tube Description: Black Nitrile - Type C
• Reinforcement: One Braid of High-Tensile Steel Wire
• Cover Material: Textile Braid Impregnated with Synthetic Rubber
• Cover Type: Oil & Mildew Resistant
• Cover Color: Black
• Coupling Recommendation: GLP, MegaCrimp
• SAE Specification: J1402

Compliance and Registration

For those producing air brake hose assemblies with swaged or crimped fittings, federal law mandates registration with the Department of Transportation. You can find detailed compliance information in the Engineering and Technical Data Section of the Gates Hydraulic Catalog.

Why Choose Gates TR500?

The Gates TR500 High-Temp Air Brake Hose is built to last, with robust construction that ensures high performance under tough conditions. Its compatibility with MegaCrimp Couplings provides a reliable connection, making it an ideal choice for fleet maintenance and industrial applications.
