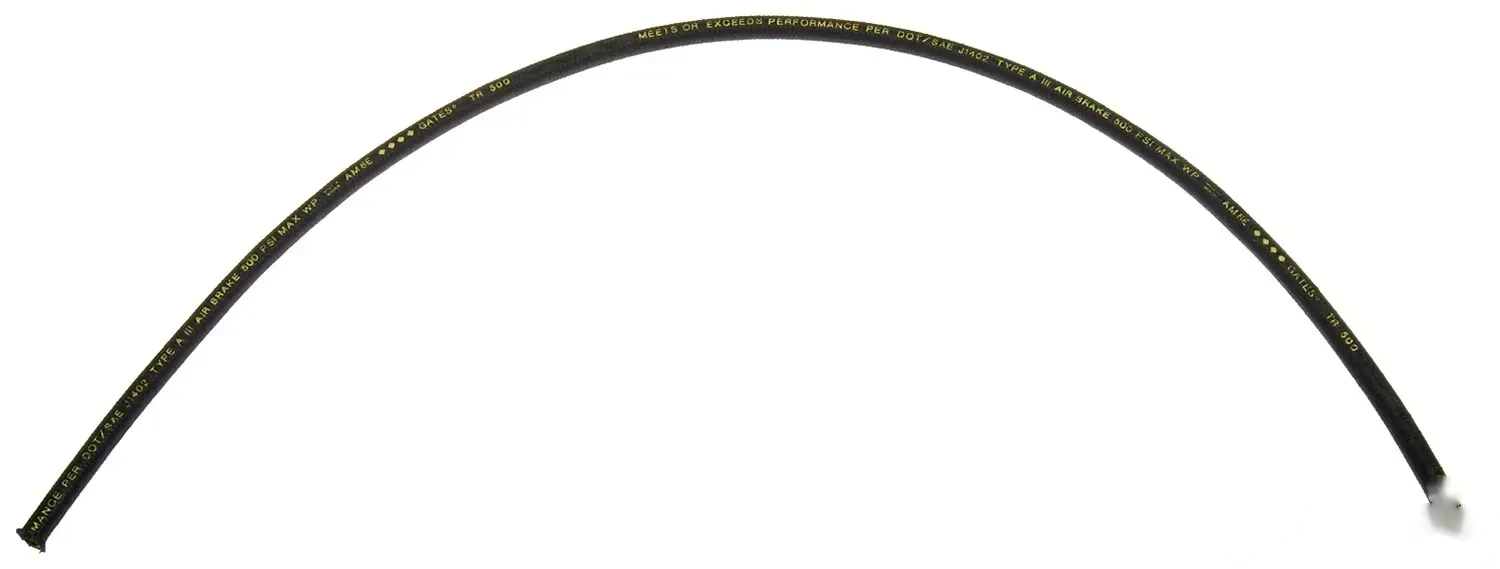

Gates TR500 High-Temp Air Brake Hose

The Gates TR500 High-Temp Air Brake Hose is engineered for a variety of demanding applications, including air brake systems, high-temperature pressurized oil return lines, and rotary oil/air compressor lines. This versatile hose is also suitable for engine and transmission coolant lines, as well as lube oil lines. Please note that it is not recommended for gasoline or diesel fuel applications.

Key Features

• Product Type: TR500 High-Temp - Air Brake - Engine Hose
• Industrial Description: 10TR500X50FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Medium Pressure
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Length: 50 ft
• Dash Size: 10
• Hose Inside Diameter: 0.625 in
• Hose Outside Diameter: 0.93 in
• Minimum Bend Radius: 2.8 in
• Vacuum Rating: 30 inHg

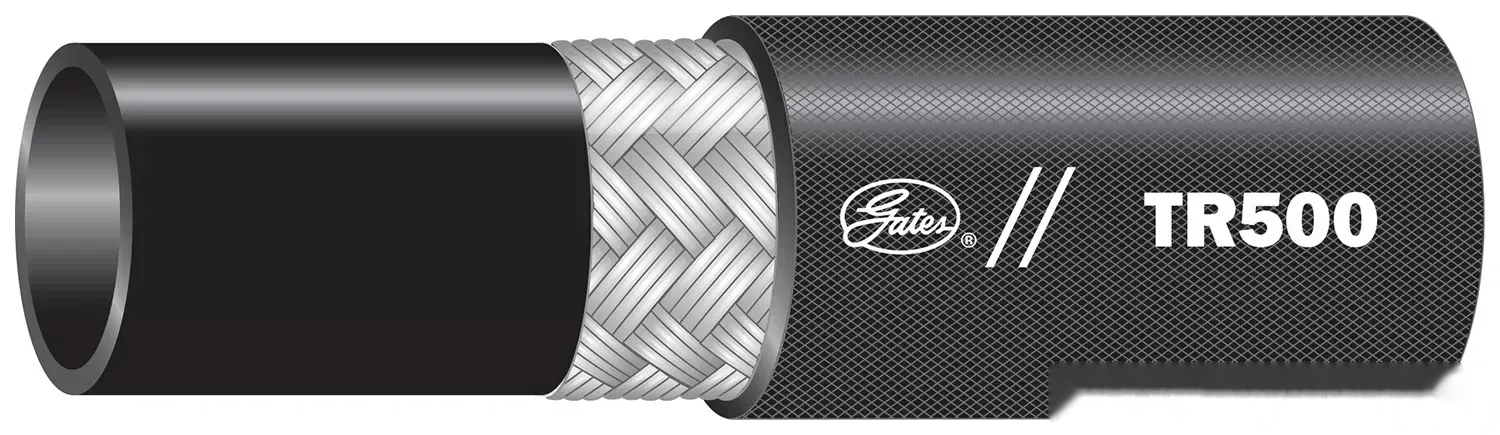

• Tube Material: Nitrile - Type C
• Reinforcement: One Braid of High-Tensile Steel Wire
• Cover Material: Textile Braid Impregnated with Synthetic Rubber
• Cover Type: Oil & Mildew Resistant
• Cover Color: Black
• Coupling Recommendation: GLP, MegaCrimp
• SAE Specification: J1402

Specifications

This hose meets or exceeds the stringent requirements of DOT FMVSS 106-74 and SAE J1402 for air brake hoses in sizes -4, -6, -8, and -10. It is crucial for any manufacturer producing air brake hose assemblies with swaged or crimped fittings to register with the Department of Transportation. For compliance details, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.

Applications

The TR500 hose is perfect for a range of applications, including:

• Air brake systems
• High-temperature oil return lines
• Rotary oil/air compressors
• Engine and transmission coolant lines
• Lube oil lines

Why Choose Gates?

With a reputation for high-quality products, Gates delivers reliable performance and durability. The TR500 High-Temp Air Brake Hose is designed to withstand extreme conditions while ensuring safety and efficiency in your operations.
