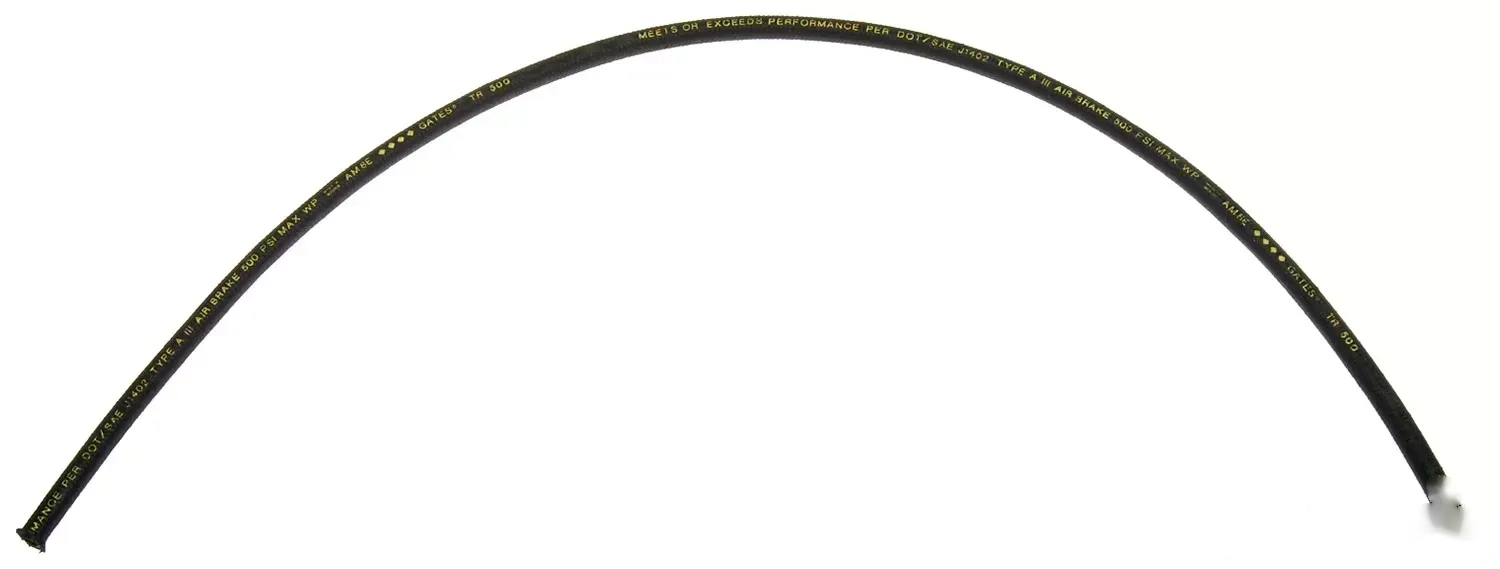

Gates 85750 TR500 High-Temp Air Brake Engine Hose

If you're looking for a reliable hose for air brake systems, high-temperature pressurized oil return lines, rotary oil/air compressor lines, engine and transmission coolant lines, or lube oil lines, the Gates 85750 TR500 High-Temp Hose is an excellent choice. However, please note that this hose is not suitable for gasoline or diesel fuel applications.

Key Features

• Compatible with MegaCrimp Couplings [G25 Series]
• Meets or exceeds DOT FMVSS 106-74 and SAE J1402 standards for air brake hoses (-4, -6, -8, -10)
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Medium pressure rating

Specifications

• Product Type: TR500 High-Temp - Air Brake - Engine Hose
• Industrial Description: 12TR500X50FT
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Length: 50 ft
• Dash Size: 12
• Hose Inside Diameter: 0.75 in
• Hose Outside Diameter: 1.04 in
• Minimum Bend Radius: 3.5 in
• Vacuum Rating: 30 inHg

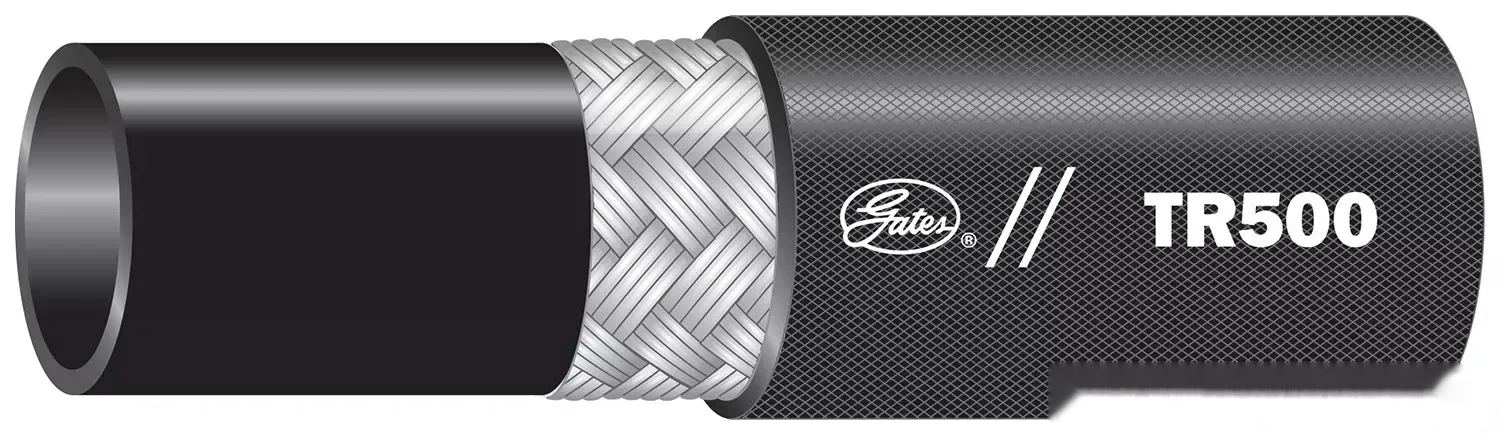

• Tube Description: Black Nitrile - Type C
• Reinforcement: One braid of high-tensile steel wire
• Cover Material: Textile braid impregnated with synthetic rubber
• Cover Type: Oil & mildew resistant
• Cover Color: Black
• Coupling Recommendation: GLP, MegaCrimp

Compliance Information

Federal law mandates that anyone producing air brake hose assemblies with swaged or crimped fittings must register with the Department of Transportation. For detailed compliance guidelines, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.
