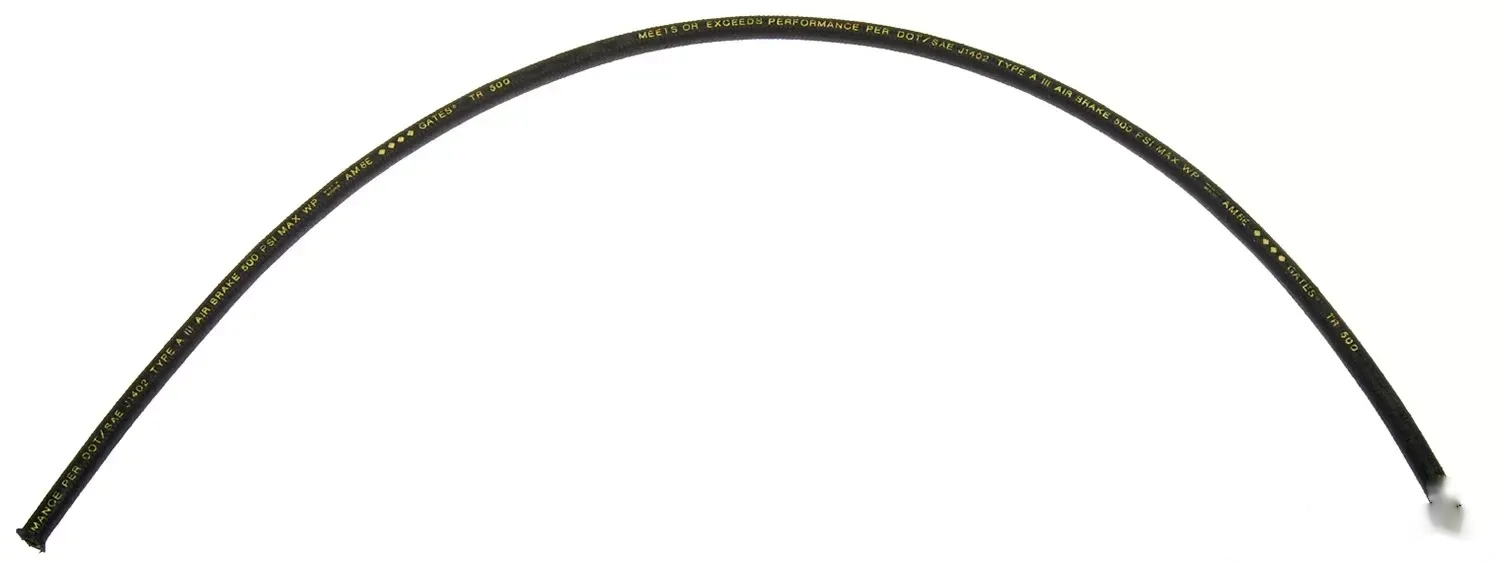

Gates 85751 TR500 High-Temp Air Brake Hose

Designed specifically for air brake systems, the Gates 85751 TR500 High-Temp Hose is your go-to solution for various demanding applications. Whether you're dealing with high-temperature pressurized oil return lines, rotary oil/air compressor lines, or engine and transmission coolant lines, this hose has got you covered. Just keep in mind, it's not suitable for gasoline or diesel fuel applications.

Key Features

• Product Type: TR500 High-Temp - Air Brake - Engine Hose
• Industrial Description: 16TR500X50FT
• Type: Fleet Application & Maintenance Hose
• Hose Pressure Description: Medium Pressure
• Maximum Working Pressure: 500 psi
• Minimum Burst Pressure: 2000 psi
• Temperature Range: -40°F to +250°F (-40°C to +121°C)
• Length: 50 ft
• Dash Size: 16
• Hose Inside Diameter: 1 in
• Hose Outside Diameter: 1.3 in
• Minimum Bend Radius: 4.5 in
• Vacuum: 30 inHg
• Tube Description: Black
• Tube Material: Nitrile - Type C

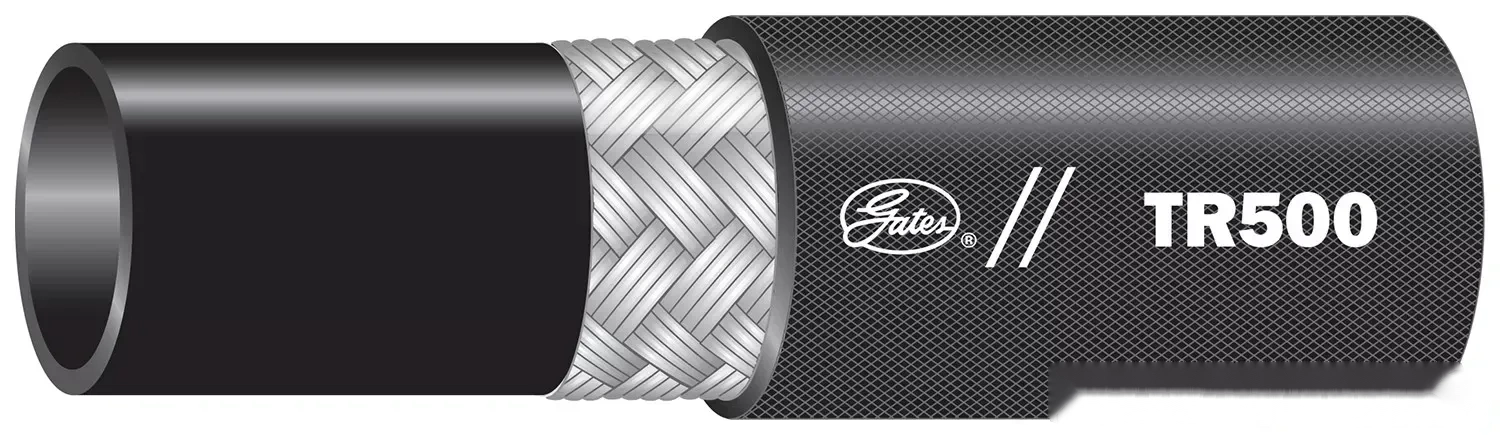

• Reinforcement: One Braid of High-Tensile Steel Wire
• Cover Material: Textile Braid Impregnated with Synthetic Rubber
• Cover Type: Oil & Mildew Resistant
• Cover Color: Black
• Coupling Recommendation: MegaCrimp

Specifications

This hose meets or exceeds DOT FMVSS 106-74 and SAE J1402 standards, ensuring reliability and safety in air brake applications (-4, -6, -8, -10 sizes). The robust construction guarantees durability, with a temperature range that accommodates extreme conditions.

Fitment and Compliance

Federal law mandates registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings. For compliance details, refer to the Engineering and Technical Data Section of the Gates Hydraulic Catalog.

Why Choose Gates 85751?

The Gates 85751 TR500 hose is engineered for performance and longevity. Its high-tensile steel wire reinforcement and oil-resistant cover make it a reliable choice for both industrial and fleet applications. Trust in Gates for quality that stands the test of time.
