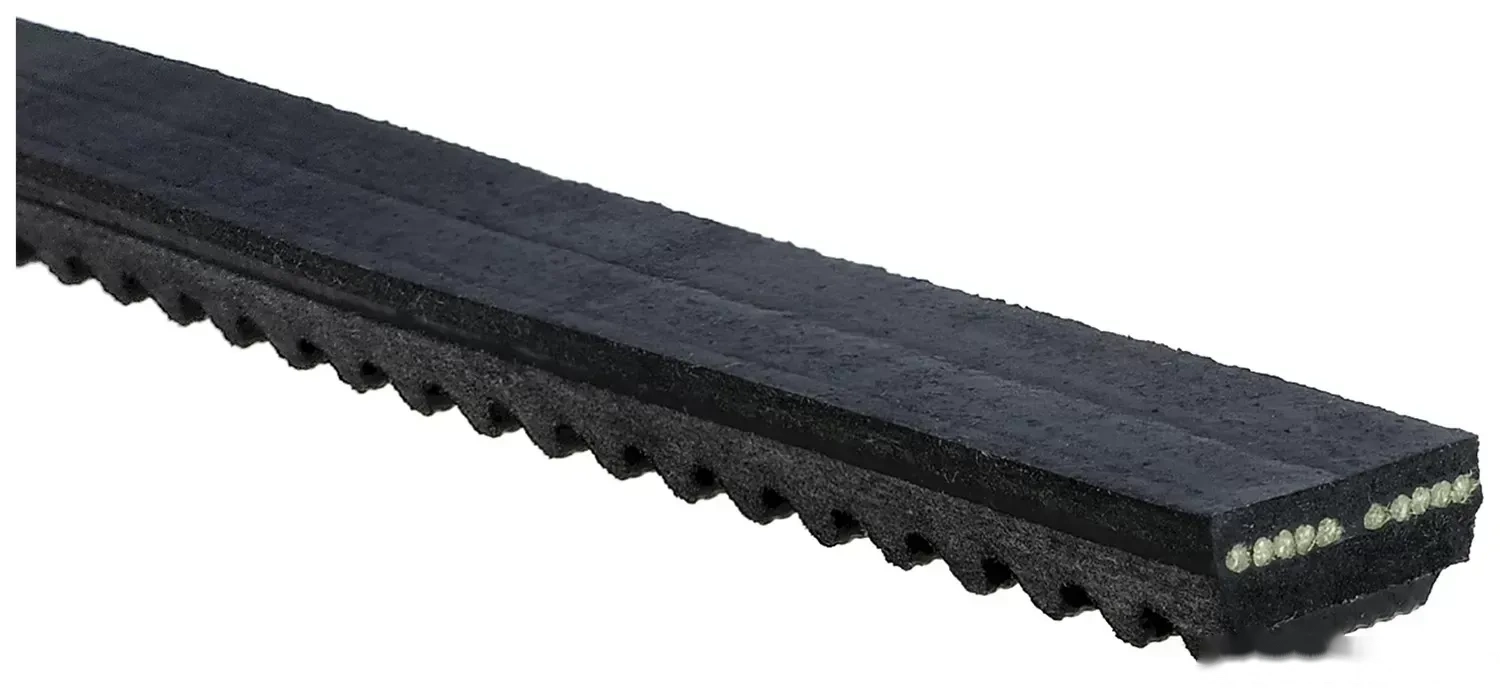

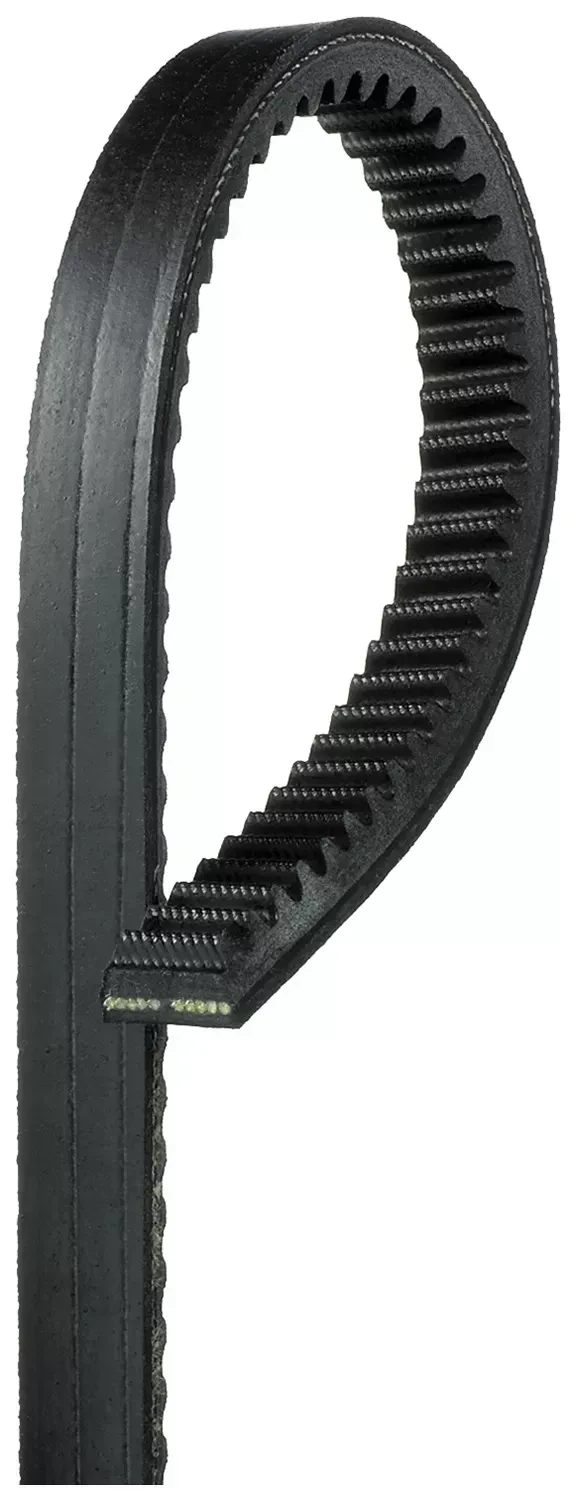

Gates Tri-Power BX300 V-Belt

The Gates Tri-Power BX300 V-Belt is your go-to solution for heavy-duty drive applications. Designed with a classical cross-section, this belt ensures superior performance even in demanding conditions. Its raw edge construction and unique notch design make it particularly effective for systems that use small diameter pulleys and back idlers.

Key Features

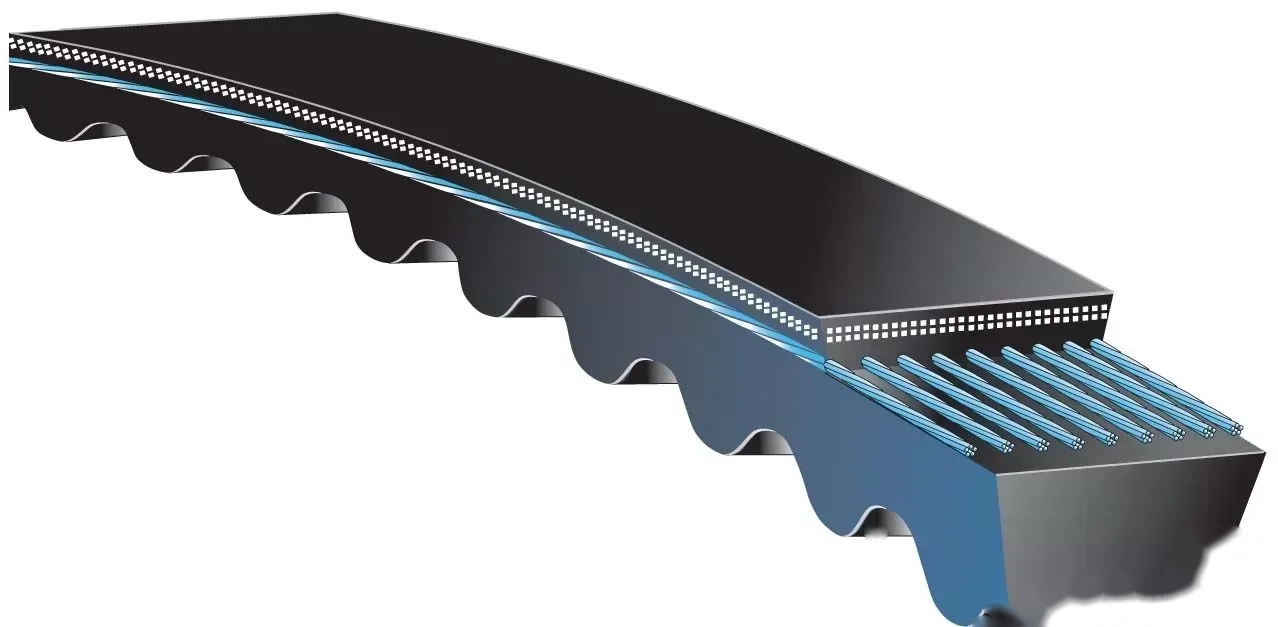

• Precision Machined Edges: The belt edge is expertly machined to ensure even contact with pulley grooves, which minimizes slippage and wear for a smoother operation.
• Flex-Bonded Cords: The cords are flex-bonded to the belt body, promoting equal load distribution and effectively absorbing bending stress, fatigue, and shock loads without compromising cord integrity.
• Cross-Oriented Rubber Compound: This belt features a fiber-loaded rubber compound that enhances both flexibility and stability.
• Molded Notches: The notches are molded during manufacturing, making the BX300 ideal for drives with smaller diameter pulleys.
• Heat and Oil Resistance: This belt meets RMA oil and heat resistant standards, along with static conductivity requirements.
• Temperature Tolerance: Operates efficiently in a wide temperature range from -58°F to +248°F (-50°C to +120°C).
• Versatile Fit: Available in AX, BX, and CX cross-sections, including Tri-Power PowerBand joined V-belts.

Specifications

• Type: Classical Section Molded Notch V-Belt
• Section: BX
• Number of Strands: 1
• Top Width: 17 mm
• Outside Circumference: 7671 mm
• Construction: Notched
• Belt Material: EPDM
• Cord Material: Polyester

Why Choose the Gates Tri-Power BX300 V-Belt?

When it comes to reliability and performance in heavy-duty applications, the Gates Tri-Power BX300 V-Belt stands out. Its innovative design, combined with high-quality materials, ensures that it can handle the toughest conditions while maintaining optimal efficiency. Whether you're upgrading your current system or replacing a worn-out belt, the BX300 is engineered to meet your needs.
