GrimmSpeed 2008-2014 STI Front Mount Intercooler Kit

The GrimmSpeed 2008-2014 STI Front Mount Intercooler Kit is engineered to elevate the performance of your turbocharged Subaru engine through superior cooling efficiency. With a focus on optimizing both pressure drop and heat rejection, this intercooler kit represents the pinnacle of intercooler design.

Core Design

At the heart of the GrimmSpeed intercooler is a 27"x11"x4" cross-flow core, constructed from durable bar and plate materials. This design strikes an ideal balance between minimizing pressure drop and maximizing heat rejection, ensuring your engine stays cool even under demanding conditions. The custom core design leverages over a decade of experience in intercooler production, resulting in a product that is both efficient and reliable.

End Tanks and Mounting

The cast aluminum end tanks are meticulously designed for equal flow distribution and minimal pressure drop, enhancing overall performance. The robust steel mounting brackets provide a secure fit, preventing movement during aggressive driving. Notably, this kit does not require permanent chassis modifications, although light bumper cutting is necessary to accommodate the larger core. A fog light delete is required for 2008-2010 style bumpers.

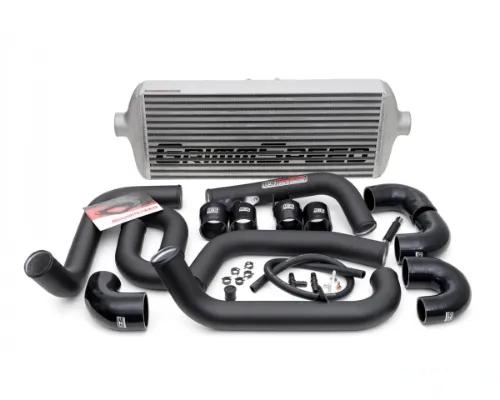

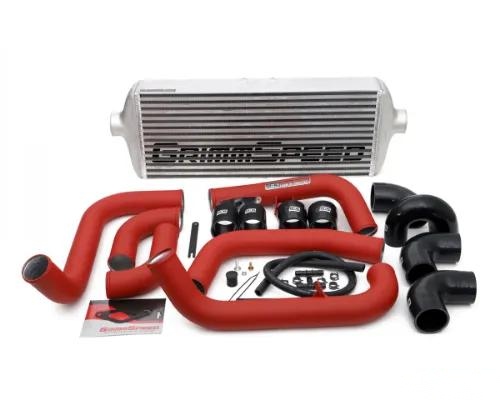

Piping and Couplers

The accompanying piping kit is made from thick .090" wall, 2.5" diameter 6061 aluminum, featuring CNC mandrel bends for optimal flow. Each pipe is bead rolled at the ends to ensure a tight fit with the included 5-ply silicone couplers, effectively preventing blow-offs under high boost conditions. The piping is finished in a durable red or black wrinkle powder coat, providing both protection against corrosion and a visually appealing match to other GrimmSpeed components.

Key Features

• 27"x11"x4" Cross Flow Core - Bar and plate construction designed for optimal performance.
• Cast Aluminum End Tanks - Engineered for equal flow distribution.
• Steel Bolt-on Mounting Brackets - Ensures stability and adjustability.
• No Permanent Chassis Modification - Requires only light bumper cutting; fog light delete for 08-10 bumpers.
• Pressure Tested - Each unit is cleaned and sealed to ensure functionality.
• Available in Raw Aluminum or Satin Black Powder Coat - Choose based on aesthetic preference and durability.
• No Tune Required - Safe installation with no change in maximum boost or spool time.
• Hand Welded and Inspected in the USA - Ensuring top-tier quality control.

Fitment

• Subaru STI 2008-2014

This intercooler kit is designed specifically for the Subaru STI models from 2008 to 2014, ensuring a precise fit and optimal performance. For best results, pairing with a GrimmSpeed intake is recommended, as the snorkel will need to be removed. Upgrade your intercooler setup with the GrimmSpeed 2008-2014 STI Front Mount Intercooler Kit and experience the difference in performance and reliability.
