GSC P-D 272/272 Billet S2 Camshaft 2.0L Subaru WRX 2002-2005

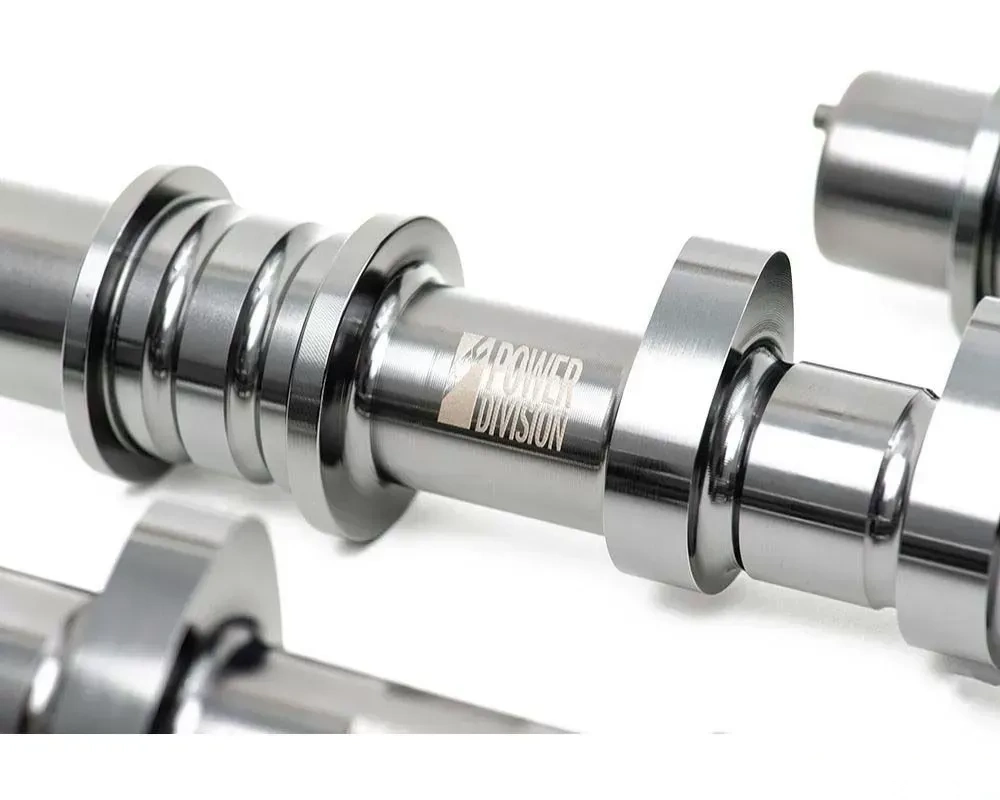

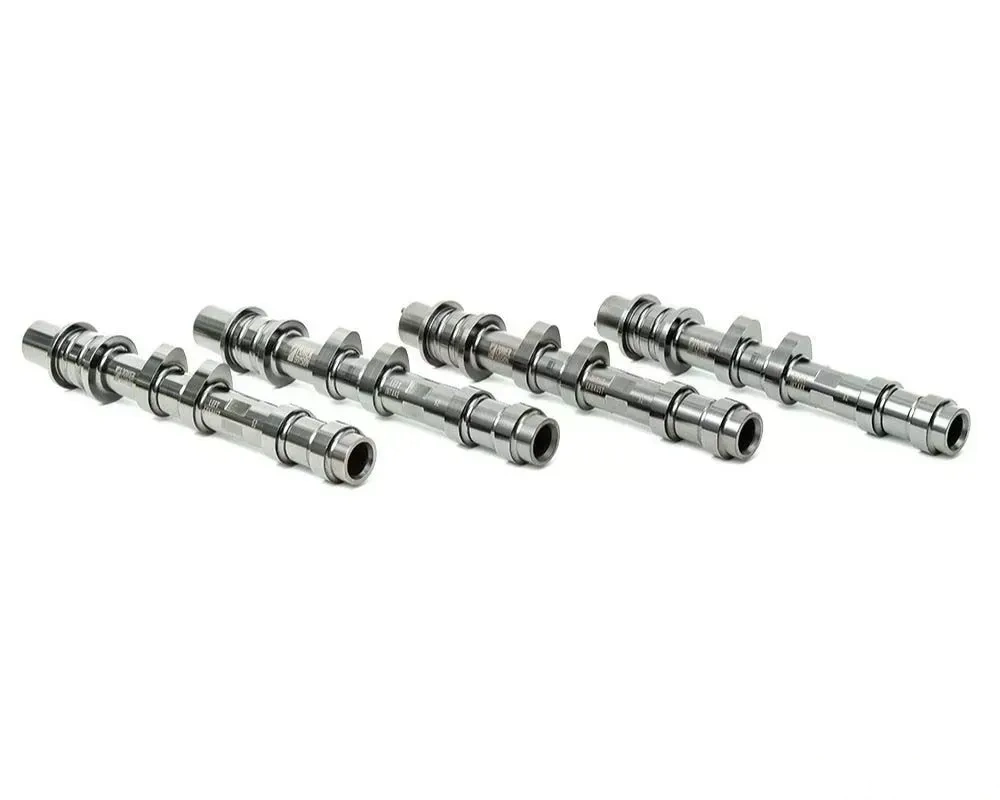

GSC Power-Division billet S2 camshafts for the EJ205 WRX Version 5 and 6. These cams are built to suite the high horsepower Subis. With a power range of 500 WHP and up, you need some certain mods to utilize the true potential of the S2s: built motor, with a built/ported head, and a good engine management system. Upgraded valve springs are required; beehive valve springs are recommended, but not required. An upgraded single spring kit will do the job under 8000 RPM.

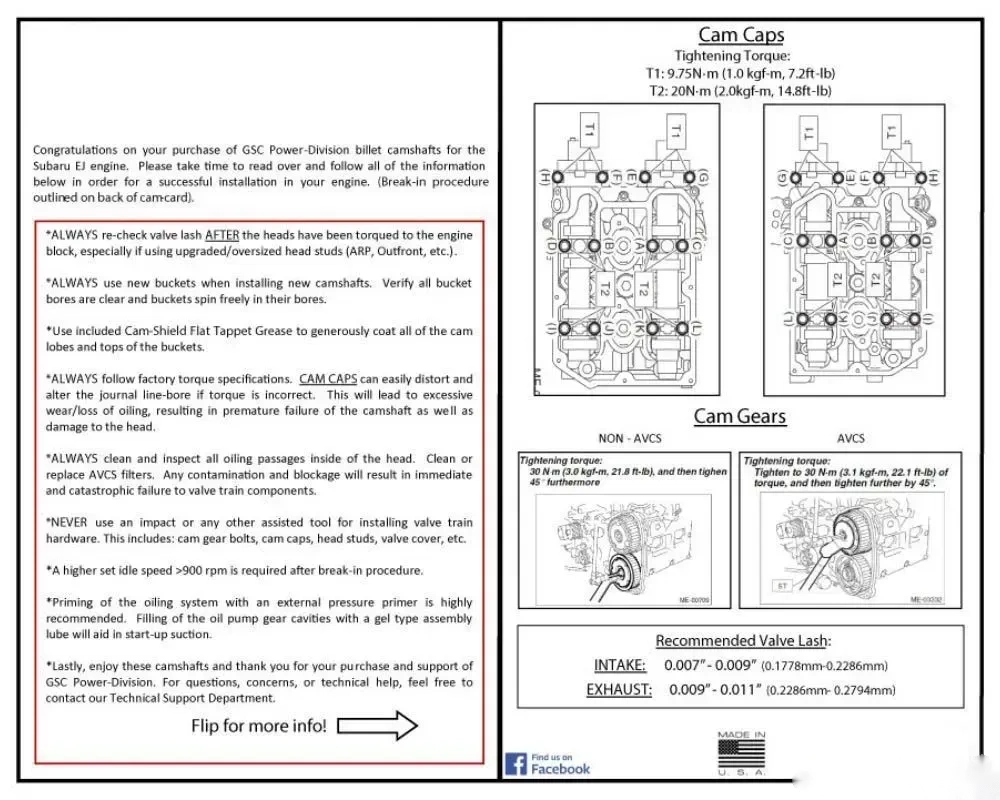

*Check Pictures for cam placement. Long nose = Left Side, short nose = Right Side*

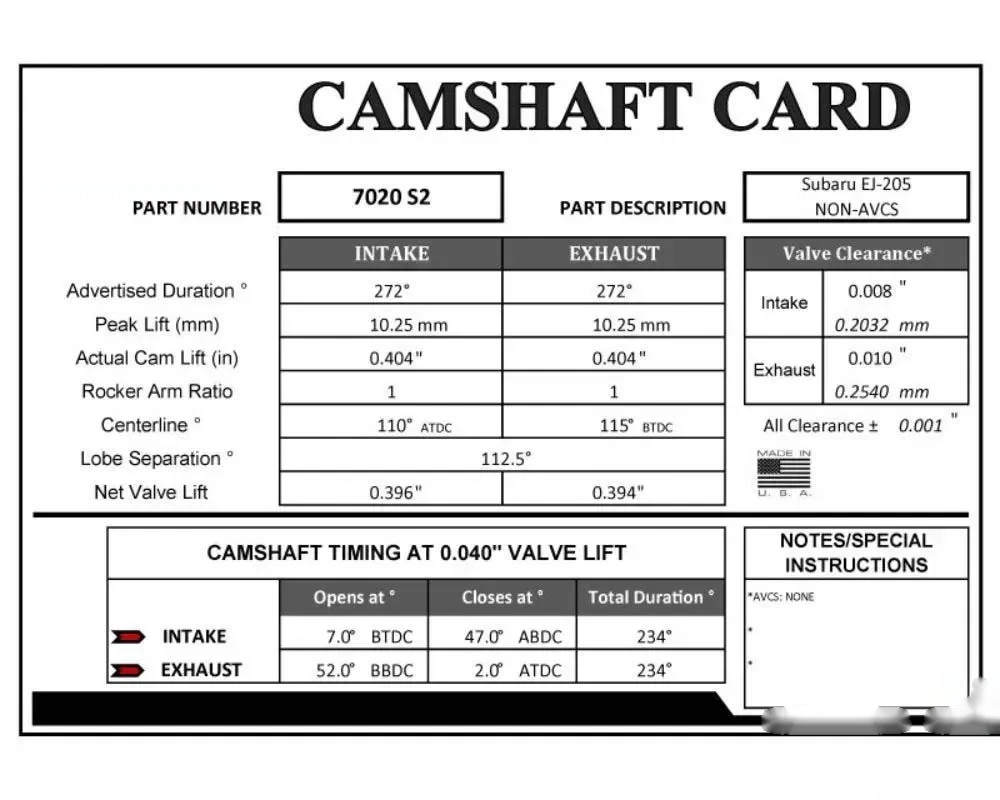

Specifications:

Intake:

• ADV Duration: 272°
• Duration @ 0.040": 234°
• Peak Lift: 10.25mm
• Center Line: 110°

Exhaust:

• ADV Duration: 272°
• Duration @ 0.040": 234°
• Peak Lift: 10.25mm
• Center Line: 115°

Fitment:

• Subaru WRX 2002-2005
