GSC P-D 282/282 Billet S3 Camshaft Subaru STI 2008+

GSC Power-Division billet S3 camshafts for the 08+ Subaru STi EJ257 with Dual AVCS. These camshafts are built to suit high horsepower cars with a power range of 750-1000 WHP and a rev range of 4500-9500 RPMs.  Specific engine modifications are required to utilize the true potential of these camshafts including a built bottom-end (sleeved or closed deck reccomended), built/ported heads (casting must be clearanced for higher lift), and upgraded valve springs.  A standalone ECU or tune with speed density is highly reccomended in order for proper idle characteristics.

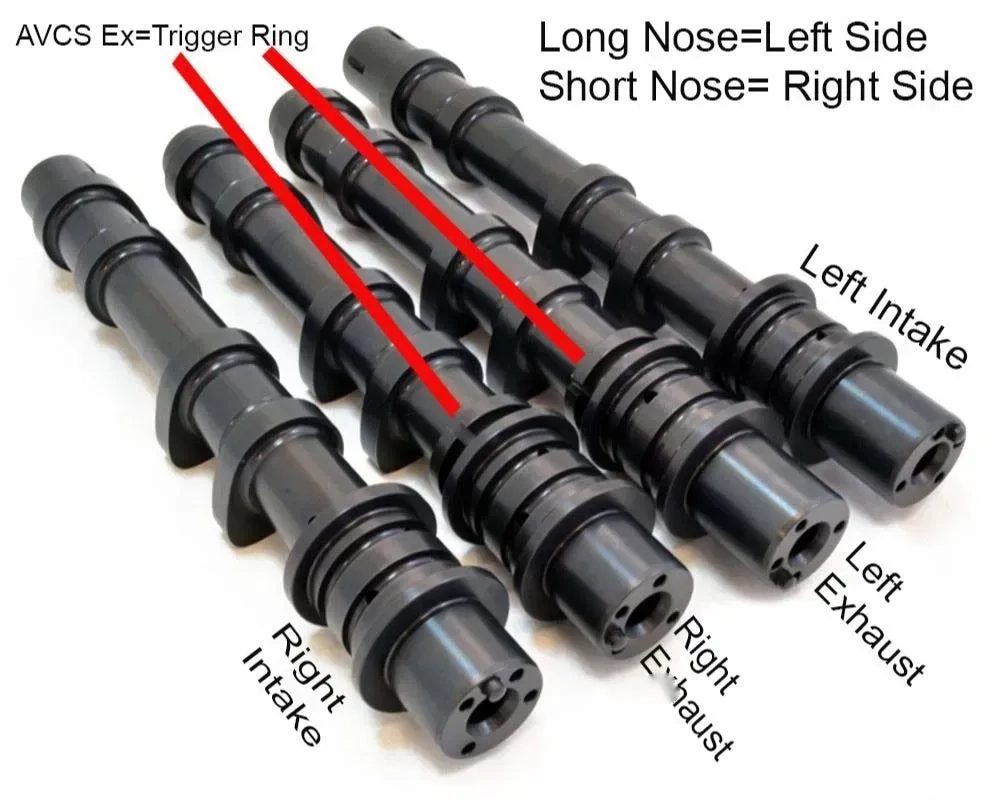

• Check Pictures for cam placement. Long nose = Left Side, short nose = Right Side
• Due to the lobe size head castings will need to be machined down for clearance - Please check during install
• Proper break in and running high zinc oil is a must on flat tappet engines
• Must be installed by an experienced technician
• Check AVCS advance during install - must be done by experienced engine builder

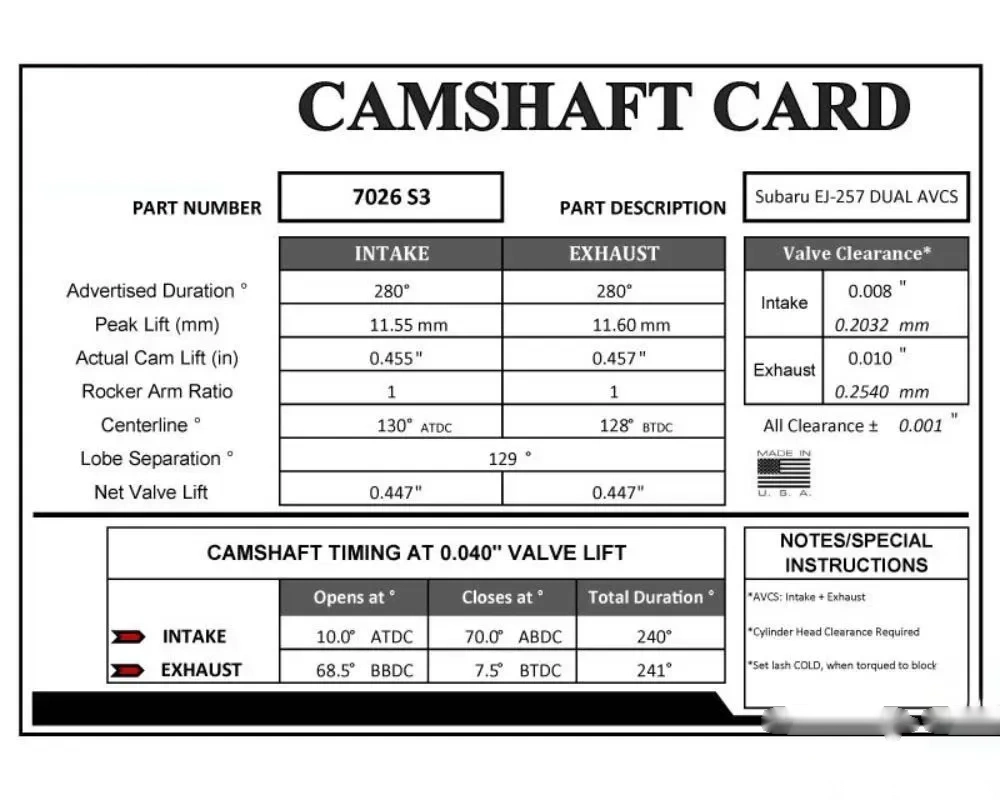

Specifications:

Intake:

• ADV Duration: 280°
• Duration @ 0.040": 240°
• Peak Lift: 11.55mm
• Center Line: 130°

Exhaust:

• ADV Duration: 280°
• Duration @ 0.040": 241°
• Peak Lift: 11.60mm
• Center Line: 128°

Fitment:

• Subaru STI 2008-2022
