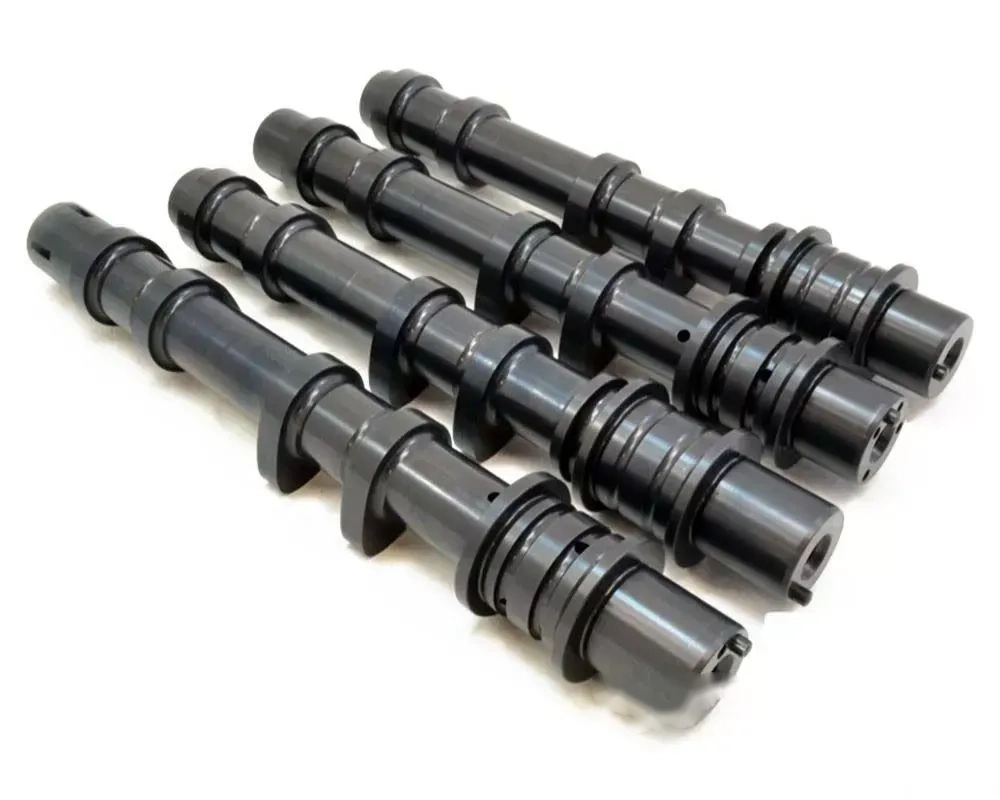

GSC P-D 282/282 Billet S3 Camshaft Subaru WRX 2.5L | STI 2004-2007

GSC Power-Division billet S3 camshafts for the USDM STi and WRX with Intake only AVCS. These camshafts are built to suit high horsepower cars with a power range of 750-1000 WHP and a rev range of 4500-9500 RPMs.  Specific engine modifications are required to utilize the true potential of these camshafts including a built bottom-end (sleeved or closed deck reccomended), built/ported heads (casting must be clearanced for higher lift), and upgraded valve springs.  A standalone ECU or tune with speed density is highly reccomended in order for proper idle characteristics.

Features:

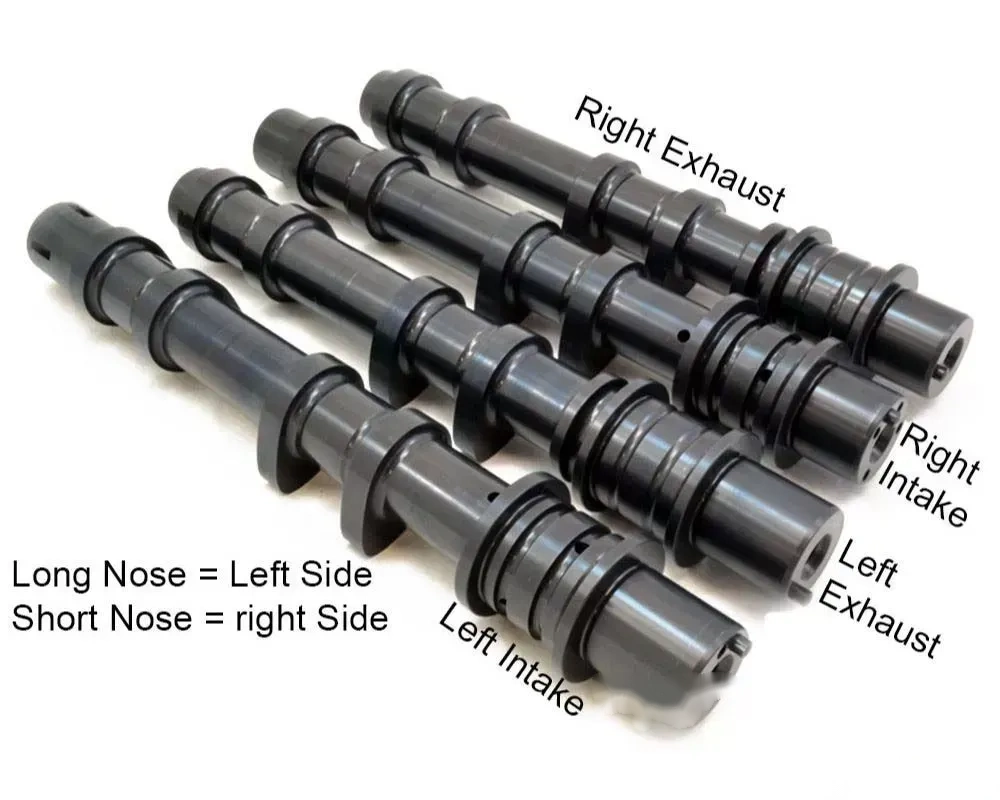

• Check Pictures for cam placement. Long nose = Left Side, short nose = Right Side
• Due to the lobe size, head castings will need to be filled down slightly for clearance - Please check during install
• Proper break in and running high zinc oil is a must on flat tappet engines.
• Must be installed by an experienced technician

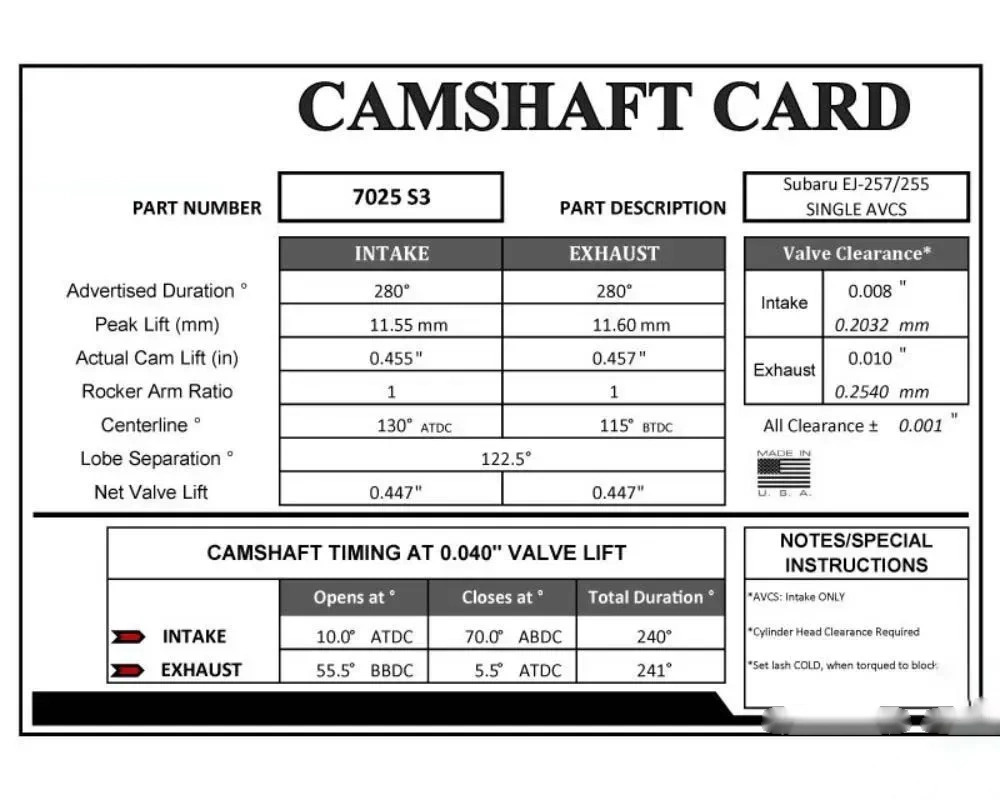

Specifications:

Intake:

• ADV Duration: 280°
• Duration @ 0.040": 240°
• Peak Lift: 11.55mm
• Center Line: 130°

Exhaust:

• ADV Duration: 280°
• Duration @ 0.040": 241°
• Peak Lift: 130
• Center Line: 115°

Fitment:

• Subaru WRX 2004-2007
• Subaru STI 2004-2007
