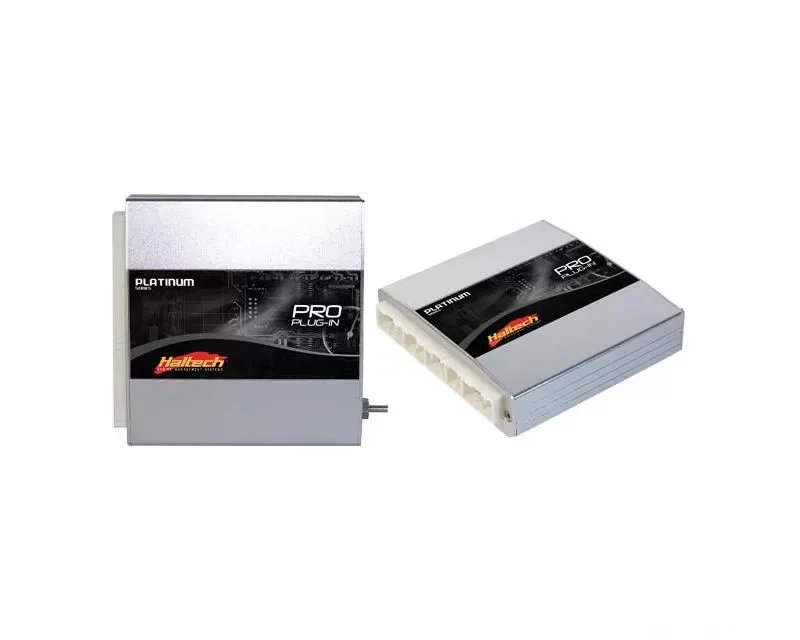

This fully programmable Plug and Play product opens the door to virtually limitless performance modification and tuning of your vehicle. Programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.

Features:

• Direct plug and play replacement of the OEM ECU, no re-wiring necessary
• Uses the cars factory sensors
• Supports Sequential Injection (peak and hold) and Direct fire ignition
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping
• Tuning via Volumetric Efficiency (VE), Injection time or Lambda Correction (MAF)
• Diagnostic trouble code storing and Check engine light control (Access through laptop only )
• Wideband "auto tuning" using user definable target AFR table
• USB and CAN Communication Port
• 4 x Fuel Injector outputs
• 2 x Ignition outputs
• Tacho, Boost Control, AC Clutch Relay, Idle Control
• Thermo Fan, Check Engine Light, Fuel Pump (Variable Speed)
• 4 x Fuel Injector outputs (Peak & Hold)
• 4 x Ignition outputs (15A Internal)
• Electronic Throttle Control (DBW)
• AC Clutch Relay, Check Engine Light, Fuel Pump, Thermo Fan Outputs Cruise Control
• Factory Inputs: MAP sensors Throttle Position Sensor Knock Detection Sensor
• Narrow Band Oxygen sensor, Coolant Temperature sensor, Vehicle Speed Sensor
• Air Temperature Sensor, Power Steering Switch, Oil Temperature Sensor, and Brake Switch Clutch Switch
• Expansion I/O: 4 x Analogue Voltage Inputs, 1 x Digital Input, 4 x Digital Outputs
• Configurable for: Aux Rev Limiter Exhaust Gas Temperature Sensors Air Temperature Switch
• Flat Shift Fuel Temperature Sensors
• Aux Fuel Pump, NOS Enable Oil Temperature Sensors, Boost Control
• Fuel Pressure Sensor, Diff Temperature Sensor, Battery Light, External Map Sensor (Up to 5 Bar)
• Gearbox Temperature Sensor, Generic Duty Output, Oil Pressure Sensor, Generic Temperature Sensors, Nitrous Activation Switch
• Wideband O2 Sensors, Discrete ON/OFF Switches, Flex Fuel Sensor
• Up to 36 more I/O channels are available using the optional Haltech I/O 12 and TCA 2/4 CAN
• Data Logging: 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing
• Power Requirements: 8.6 to 16.5 Volts DC
• Consumption: 530mA @ 12Volts DC
• ECU Dimensions Length: 179mm Width: 158mm Height: 42mm Weight: 730g (1.6 lb)
• Operating Temperature Range: -40Deg C to 85 Deg C ( -40 Deg F to 185 Deg F)

Fitment:

• Hyundai Genesis 2.0 Turbo Manual Transmission 2009-2015

Installation Instructions:

• CLICK HERE

Note:

• For Racing Use Only
• Does Not Support Immobilizer Traction Control
• Pictures used for marketing purposes only, actual product may vary.
