Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning; optimized street calibrations; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy start ups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store.

The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.

Important Downloads:

• Instructions for Part# 0-80670
• Avenger Limited Lifetime Warranty
• Carburetor Numerical Listing for Part #0-80670

Features:

• Vibratory polished for good looks
• Optimized street calibration that works-out-of-the-box
• Factory preset electric choke for easy startups
• Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included)
• Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.

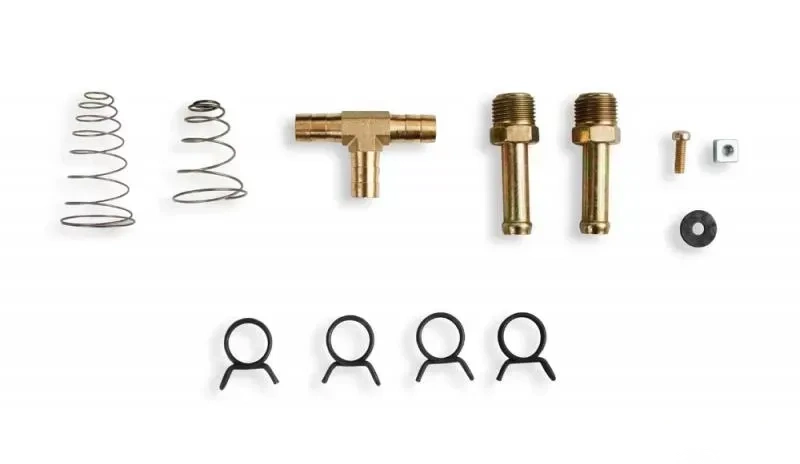

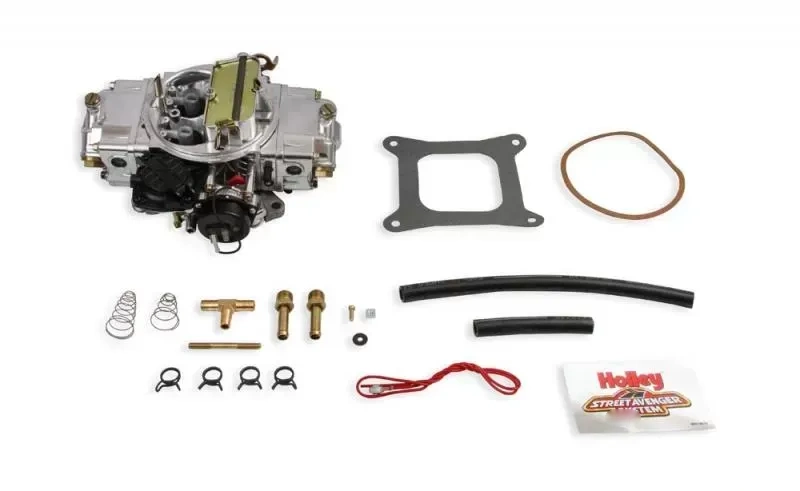

• Fuel line kit included so there are no unnecessary trips back to the parts store
• Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Specifications:

• Barrels: 4
• Booster: Straight
• CFM: 670
• Choke: Electric
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Dual
• Material: Aluminum
• Model: 4150
• Primary Main Jet: 65
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Product Type: 4150 Model Carburetor
• Secondaries: Vacuum
• Secondary Main Jet: 72
• Supercharged Application: No
• Throttle Bore: 1.563 inch
• Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
• Warranty: Limited Lifetime Warranty

Notes:

• This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
