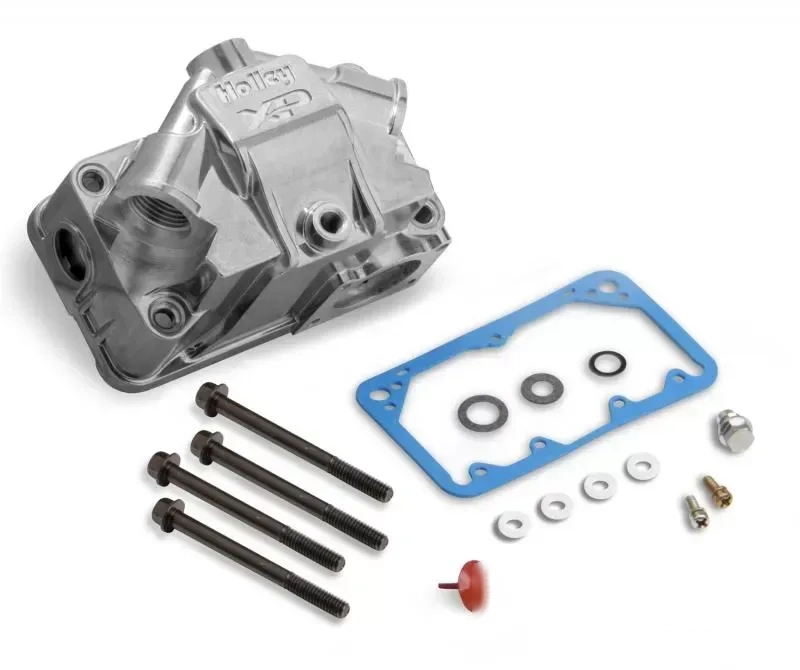

Introducing the Ultra xP Aluminum Fuel Bowl Kit, designed to fit models 4150, 4160, and 4500. Just a heads up, you'll need a .250" longer fuel line for this kit. With its stunning tumble polished finish, it’s not just about looks—it’s about performance too!

Features:

• Utilizes o-ring fittings for a secure connection.
• Compatible with standard floats, float hangers, screws, and accelerator diaphragms.
• Equipped with "Clear Pyrex" sight windows on both sides for easy fuel level monitoring.
• Innovative fuel "trough" design in the bowl’s floor directs fuel straight to the jets, keeping them well-covered.
• Internal baffling is cast into the bowl to minimize turbulence.
• Offers 20% more fuel capacity compared to traditional V-Bowls, preventing fuel starvation and ensuring consistent air/fuel ratios.
• A dedicated fuel shelf significantly reduces aeration, leading to more reliable metering.
• Includes a convenient threaded drain plug for easy maintenance.
• Features contoured fuel entry for smooth flow to the needle and seat assembly.
• Can be plumbed from either side to suit your setup.
• Reinforced material in critical areas (needle & seat, fuel inlets, sight window) ensures durability in high-performance racing situations.
• Drain plug included.
• Dual sight windows for optimal visibility.
• Designed with baffling to enhance stability.
• Increased capacity for those demanding drives.
• Fuel bowl has 3/4 -16 fuel inlet threads and uses -8 Viton O-ring type fittings (note: standard steel fittings won’t fit).

Specifications:

• Emission Code: 5
• Finish: Shiny
• Fuel Bowl Style: Center Hung
• Material: Aluminum
• Model: 4150/4500
• Product Type: Replacement Fuel Bowl Kit
• Warranty: Limited 90 Day

Notes:

• Remember to re-use your existing hardware during installation.
