If your HEMI swap project is using a Chrysler 46RE Transmission, commonly found in 1996-2003 Dodge Ram - Dakota, or Durango V8 trucks, you can finally control your transmission through the Terminator X MAX ECU. Keep in mind, the 46RE has a mechanically controlled 1-2 and 2-3 shift, meaning you must run a TV cable to ensure no damage is done to the transmission. The Terminator X will allow you to control your 3-4 shift, Lockup Torque Converter, and the electronically controlled governor pressure circuit, within the transmission.

(For 1996-2003 Transmissions) - for use with Terminator X MAX systems only.

Features:

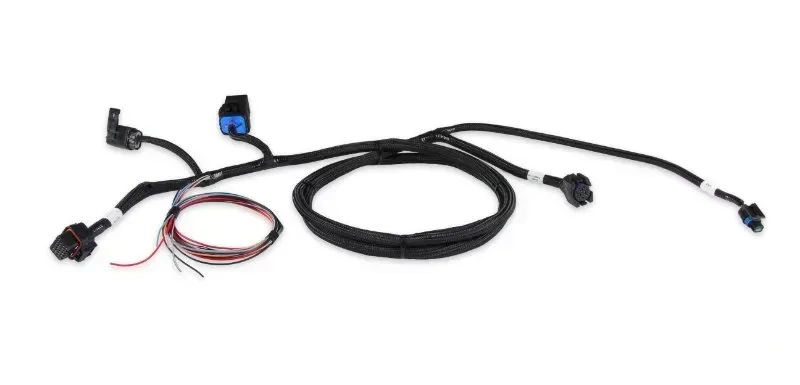

• Plug and play with factory connectors found on the Chrysler 46RE Transmission

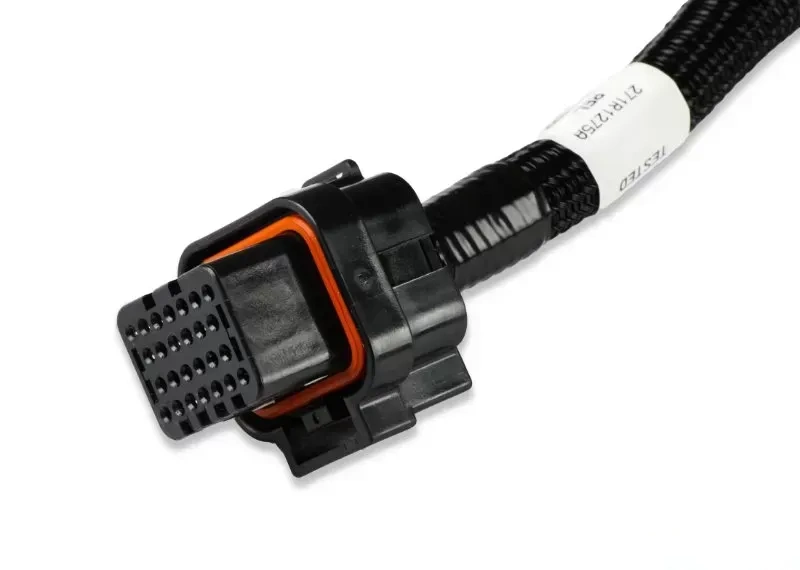

• Pre-Terminated J4 Connector, to be used with Terminator X MAX ECU's only
• Provides control of the 3-4 Shift, Torque Convertor Lockup and governor pressure circuit
• Works with all 1996-2003 46RE Transmissions

Fitment:

• Holley Terminator X MAX

Notes:

• Red 18G - Fused 12V+ To Battery
• Black 20g - Chassis Ground
• L Blue 20g - OD Status LED (Neg- side of light)
• Brwn/Wht 20g - Brake Switch (12v+ When brakes applied)
• Tan 20g - O/D Cancel (momentary switch ground signal)
• Requires Terminator X Firmware and Software V2 Build 50 (Terminator X V2.0.50 Software)
