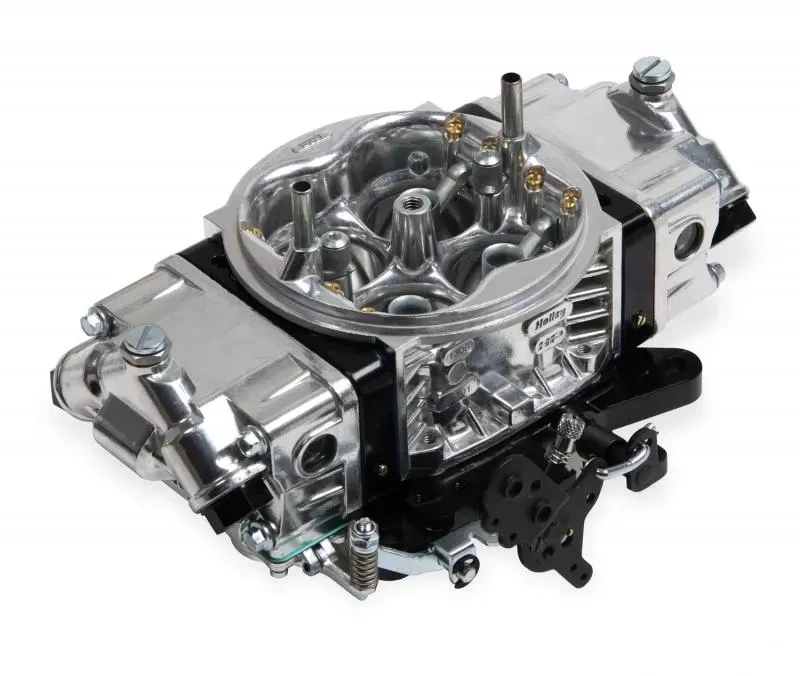

Introducing the Holley Track Warrior 650 CFM Black Carburetor

Get ready to take your performance to new heights with the Holley Track Warrior carburetor! This innovative aluminum carburetor brings together the best features from Holley's renowned Race Bred Classic 4150 HP™ series. We've added some fantastic upgrades, including durable billet metering blocks, a sturdy billet base plate, and handy knurled curb idle screws that you can easily adjust by hand. The Track Warrior boasts a sleek aluminum contoured main body design and comes equipped with screw-in air bleeds, giving you precision tuning capabilities right at your fingertips. Plus, this lightweight beauty weighs up to 40% less than its predecessors, allowing you to feel the extra horsepower and torque on the track!

• Instructions for Part# 0-67199BK

• Constructed from lightweight aluminum for durability and a stunning finish available in purple or black.
• Race-optimized calibrations ensure exceptional throttle response.

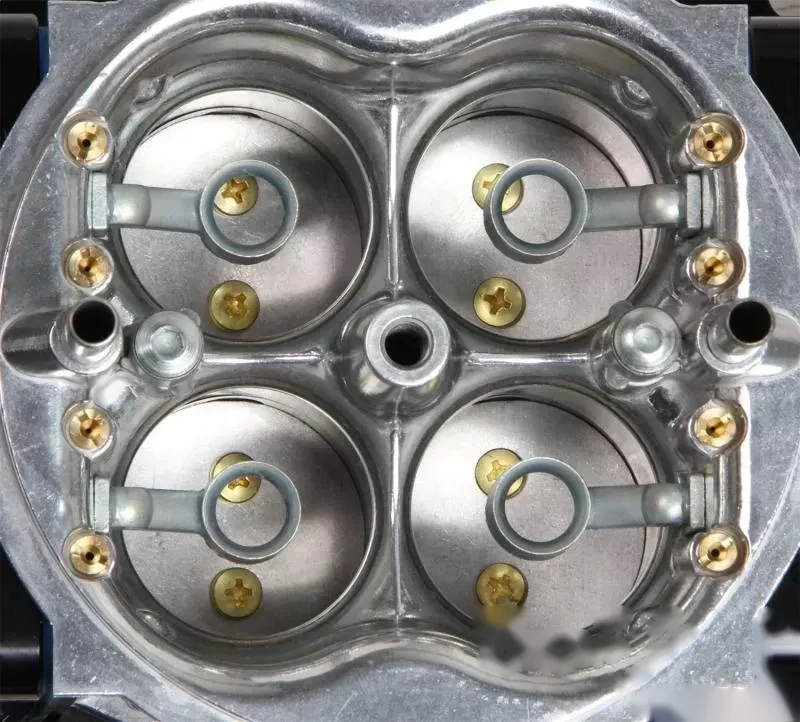

• Contoured venturi inlet promotes balanced airflow, leading to increased horsepower.
• Screw-in air bleeds allow for precise tuning adjustments.
• Four corner idle system for accurate idle control.
• Mechanical secondaries deliver impressive tire-turning performance.
• Billet metering blocks offer enhanced durability compared to cast blocks, ensuring true gasket sealing and full adjustability (including emulsion bleeds, power valve channel restrictors, and idle feed restrictors).
• Available in 650, 750, and 850 CFM options.
• Designed for lightweight vehicles with manual transmissions or automatics featuring high stall and low gearing.
• 100% wet-flow tested by Holley technicians, guaranteeing it arrives ready to hit the road!

• Barrels: 4
• Billet Color: Black
• Booster: Down Leg
• CFM: 650
• Choke: None
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Dual
• Material: Aluminum
• Model: 4150
• Primary Main Jet: 73
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Product Type: 4150 Model Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 80
• Secondary Pump Nozzle Size: 31
• Supercharged Application: No
• Throttle Bore: 1.688 inch
• Venturi Size: 1.250 inch
• Warranty: Limited 90 Day

• This carburetor features a square bore flange bolt pattern and can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with a 5 3/16" x 5 5/8" bolt pattern. If you're working with a spreadbore style intake manifold, you'll need an adapter to install this carburetor, similar to the Mr. Gasket #1932.
