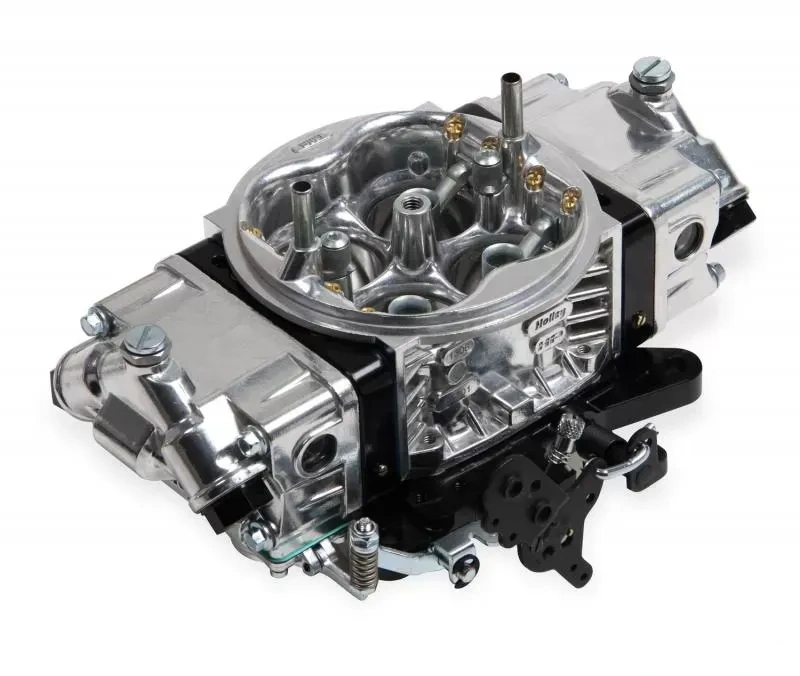

Introducing the Holley Track Warrior 750 CFM Black Carburetor

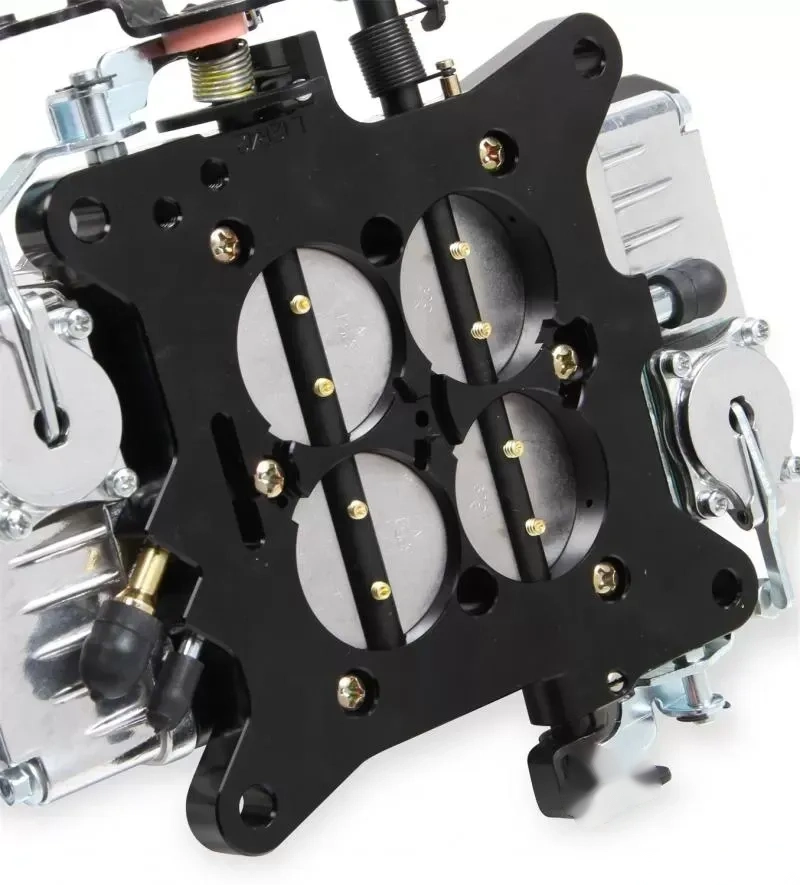

Holley is excited to present the latest in carburetor technology with the all-new aluminum Track Warrior series. These carburetors take the best elements from Holley's renowned Race Bred Classic 4150 HP™ models and enhance them with features like billet metering blocks, a sturdy billet base plate, and knurled curb idle screws that you can adjust by hand. The Track Warrior showcases an aluminum contoured main body design, complete with screw-in air bleeds for those who love precision tuning. Plus, this innovative design is up to 40% lighter, giving your ride an impressive boost in horsepower and torque for outstanding track performance!

Important Downloads:

• Instructions for Part# 0-67200BK

Features:

• Lightweight aluminum construction that looks great in either purple or black.
• Race-optimized calibrations for exceptional throttle response.

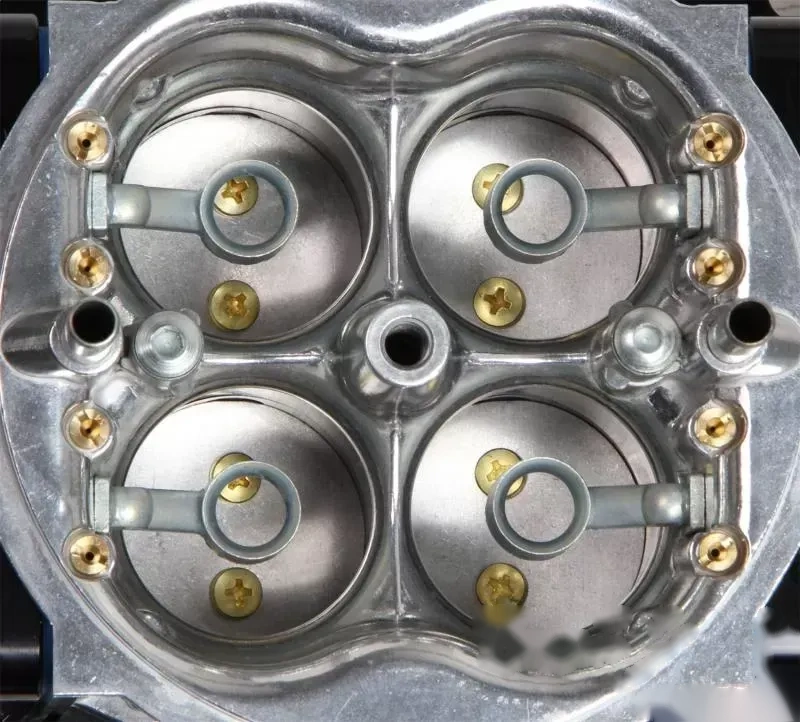

• Contoured venturi inlet for balanced airflow, resulting in increased horsepower.
• Screw-in air bleeds for precise tuning adjustments.
• Four corner idle for accurate idle control.
• Mechanical secondaries that deliver impressive tire-spinning performance.
• Durable billet metering blocks with true gasket sealing and fully adjustable components (emulsion bleeds, power valve channel restrictors, & idle feed restrictors).
• Available in 650, 750, and 850 CFM models to suit your needs.
• Designed for lightweight vehicles with manual transmissions or automatics featuring high stall and low gearing.
• Each unit is 100% wet-flow tested by Holley technicians to ensure it’s ready to hit the road!

Specifications:

• Barrels: 4
• Billet Color: Black
• Booster: Down Leg
• Brand Family: Track Warrior
• CFM: 750
• Choke: None
• Emission Code: 3
• Finish: Shiny
• Fuel: Gasoline
• Fuel Inlet: Dual
• Fuel Type: Gasoline
• Material: Aluminum
• Model: 4150
• Primary Main Jet: 80
• Primary Power Valve: 6.5
• Primary Pump Nozzle Size: 31
• Product Type: 4150 Model Carburetor
• Secondaries: Mechanical
• Secondary Main Jet: 90
• Secondary Pump Nozzle Size: 31
• Supercharged Application: No
• Throttle Bore: 1.688 inch
• Venturi Size: 1.375 inch
• Warranty: Limited 90 Day

Notes:

• This carburetor features a square bore flange bolt pattern, making it a great replacement for Holley, Edelbrock, Carter AFB, and Autolite style carburetors with a 5 3/16" x 5 5/8" bolt pattern. If you're working with a spreadbore style intake manifold, an adapter will be necessary for installation, similar to the Mr. Gasket #1932.
