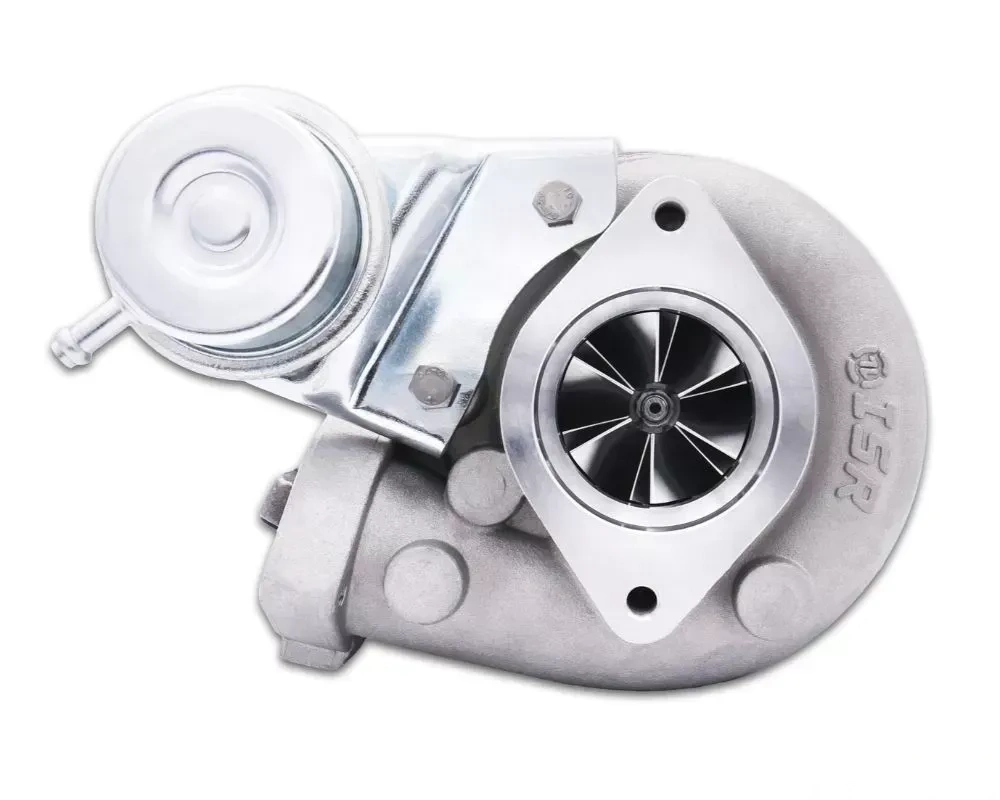

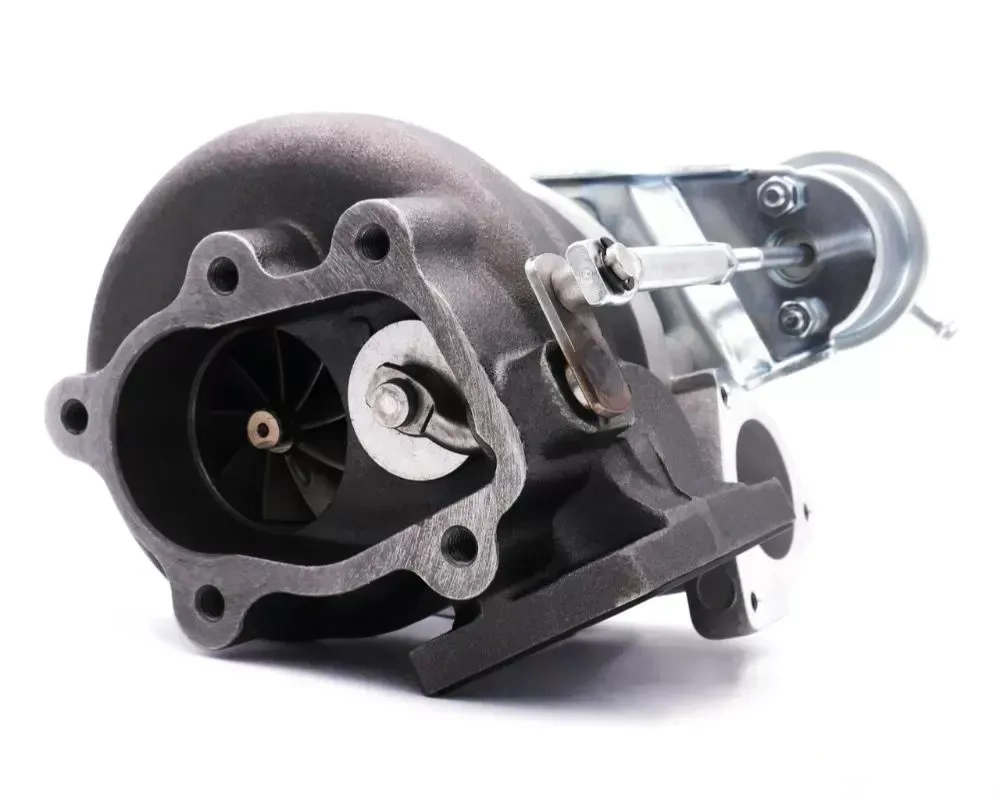

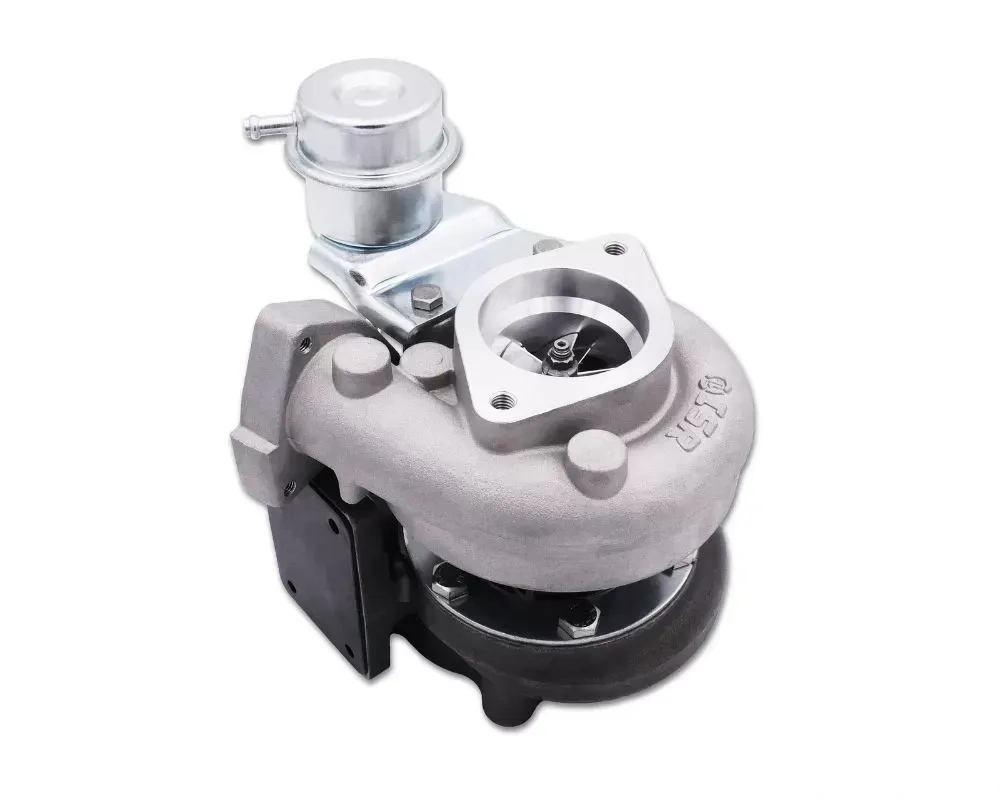

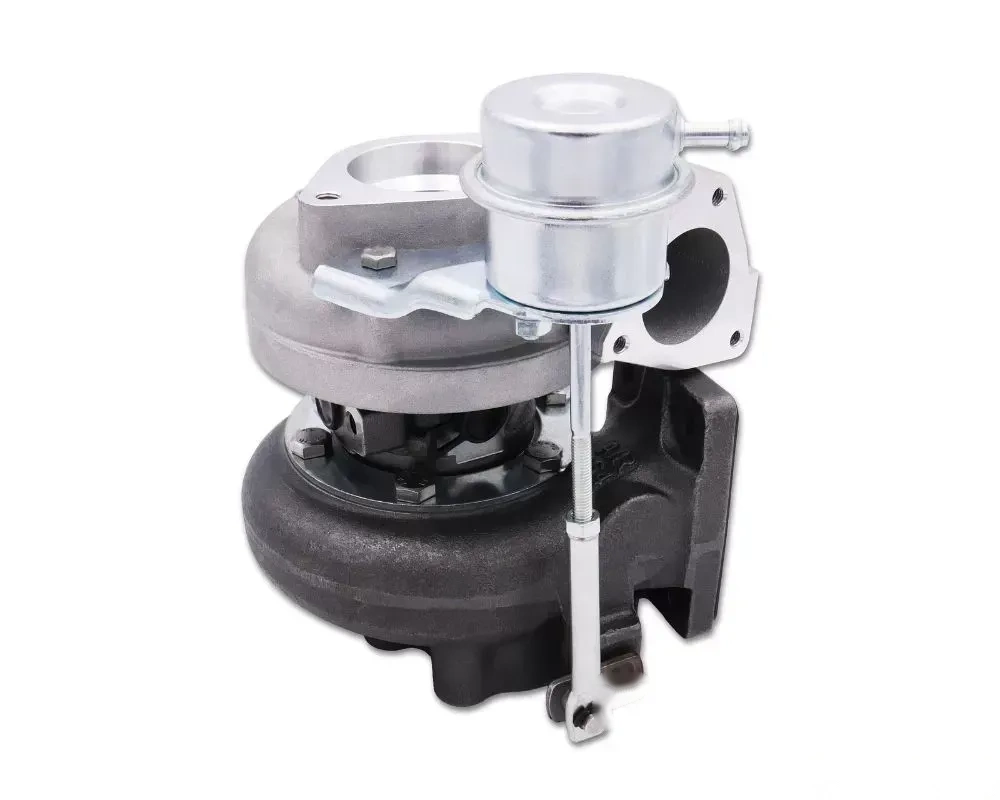

ISR RSX2860R Dual Ball Bearing Turbo - T2 - .64ar - Bolt on Cover

ISR has released their new small frame ball bearing turbo upgrade options for those looking for bottom mounted turbos on their SR/KA replacing the factory t25 or t28 turbo

The RSX2860 turbo feature dual ball bearing, billet compressor wheel and bolt on style compressor housing. All ISR turbos feature dual step gap rings and are balanced to within OEM specifications. Get big power and reliability and a fraction of the cost.

Turbo Specifications:

• Dual Ball Bearing
• Rated HP 250-300

Requires Oil Restrictor .036"-.040"

• Oil Feed Thread: 7/16-24
• Oil Drain Size: GT style (part # IS-GTDRN)

Wheel Specs:

• Comp: IND 44mm, EXD 60mm
• Turbine: IND 53mm, EXD 46mm

Compressor Housing: .42AR

• Inlet: 2 Bolt
• Outlet: 3 Bolt

• Turbine housing: T2 .64ar
• Turbine Discharge Flange: GT 5 Bolt

Note:

• Legal only for use in competition vehicles which may never be registered, licensed, and/or used on public streets or highways; and also for use in other exempted vehicles.
