ISR Performance RS TD05HR 20G Turbocharger For Genesis 2.0T Upgrade
Brand: IS-RSTD05HRExpert Support: ISR Performance
(0 reviews)
$797.5
In Stock
View Details:
High-performance Auto Parts & Accessories with enhanced damping system
German engineering ensuring superior handling
2-year manufacturer warranty
Compatible with most popular vehicle models
1
Worldwide shipping (2-7 business days)
Secure payment options
Product Description

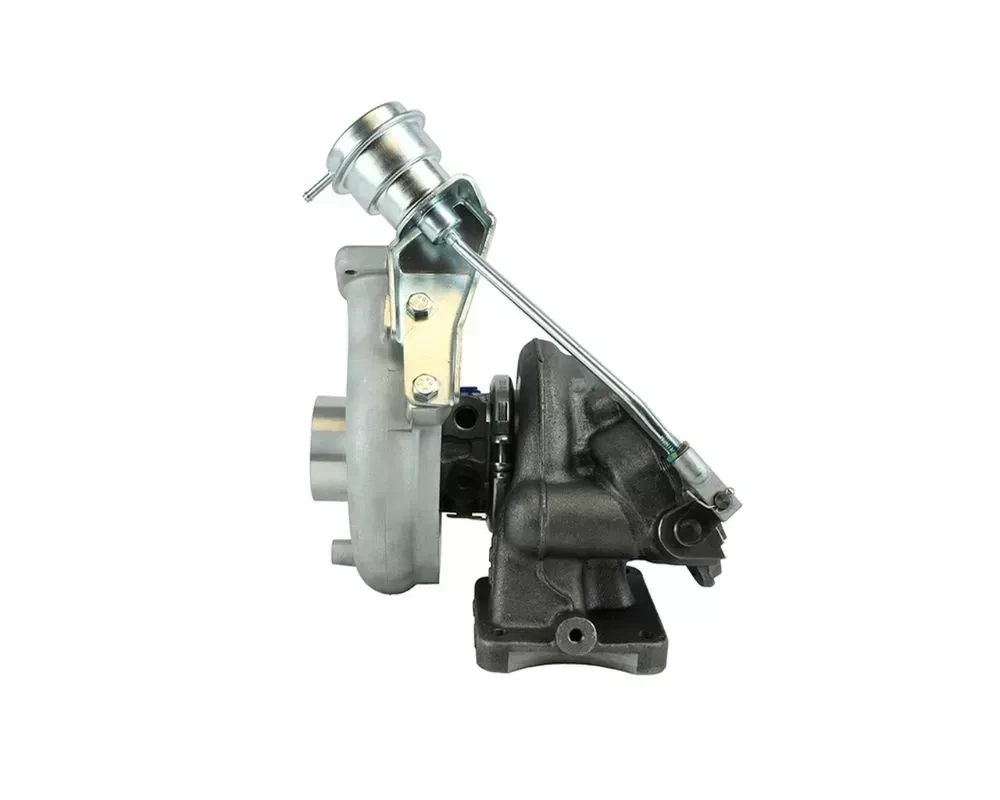

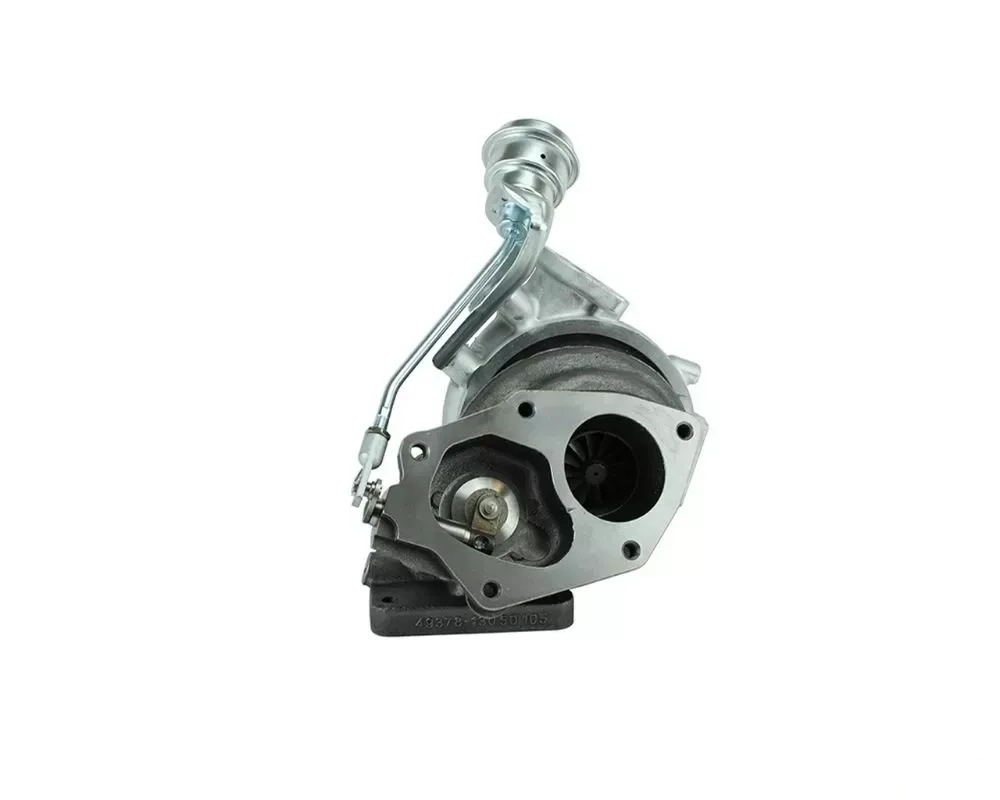

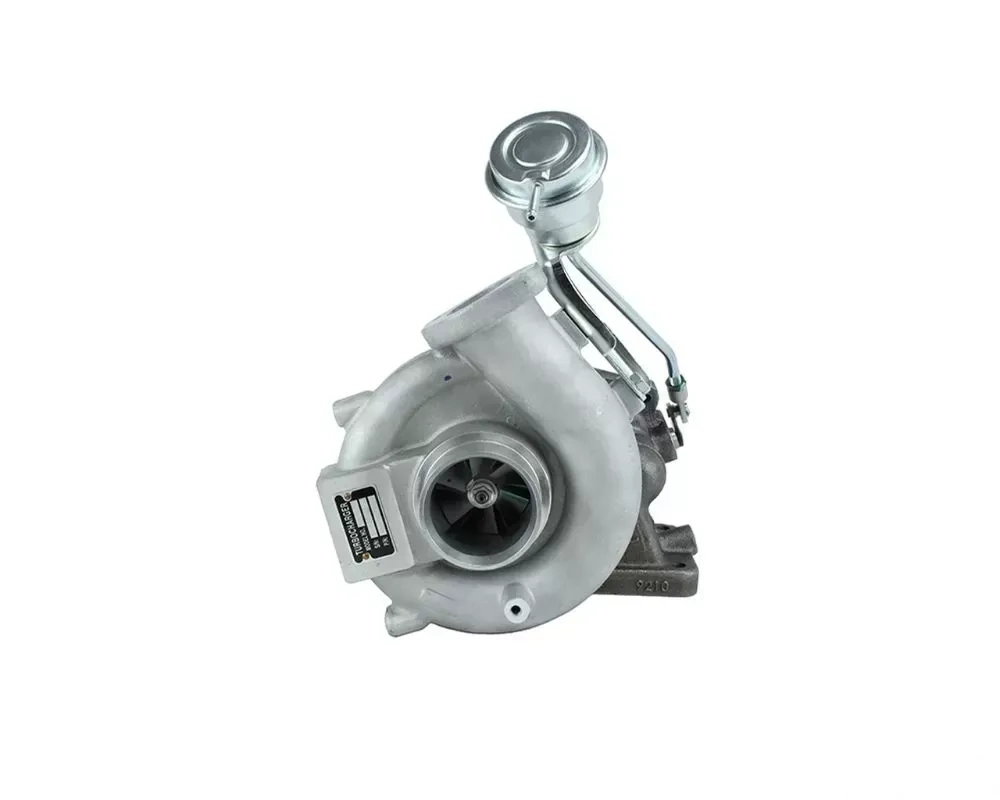

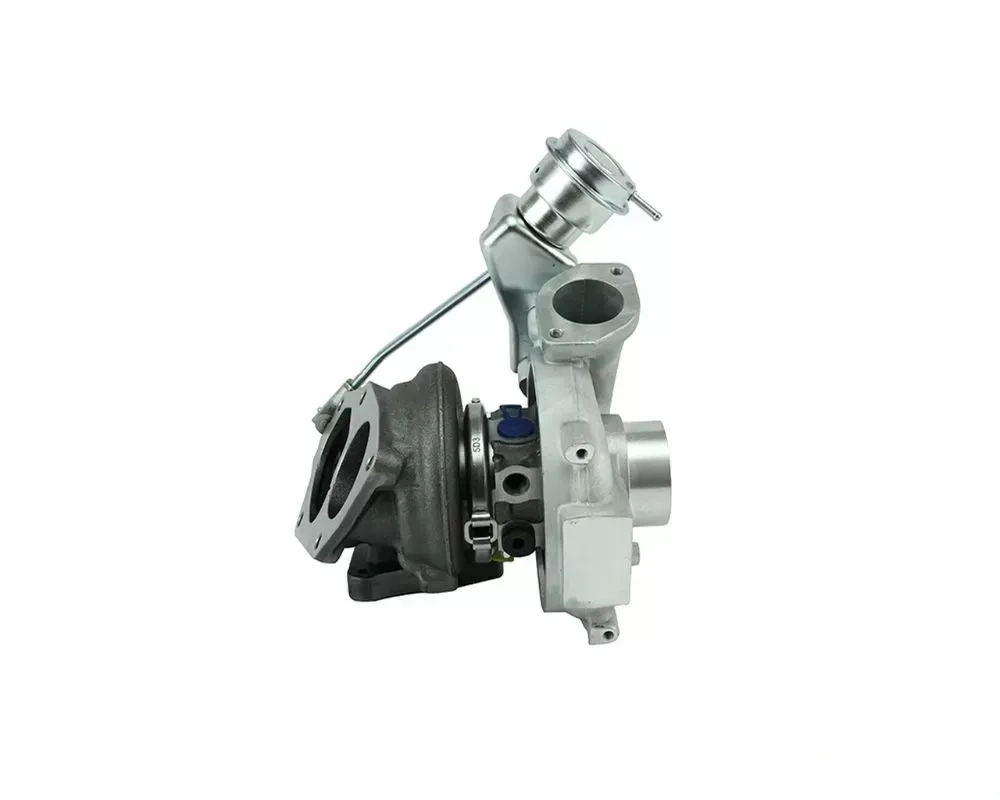

Introducing the ISR RSTD05HR 20G turbo. Using an upgraded 20G compressor wheel and factory style turbine wheel the ISR TD05HR delivers a greatly increased power range while maintaining quick spool, all in the compact bolt on style Evo 9 compressor and turbine housings.
This is a great inexpensive upgraded turbo for your Genesis 2.0t when using the ISR EVO 8/9 Bolt-on Turbo Upgrade. No more using used stock Evo 9 16G turbos.
Using high quality component including step gap rings & performance thrust bearings, all ISR turbos are fully balanced and assembled in the USA.
Turbo Specifications:
Compressor wheel: 52.5 mm / 68 mm
Turbine Wheel: 56 mm / 49.2 mm
Turbine Housing 10.5cm A/R
Journal Bearing
Water cooled and Oil cooled
Actuator pressure 1.2 Bar / 18 psi
Note:
Requires the use of the ISR Performance EVO 8/9 Bolt-on Turbo Upgrade for the Genesis Coupe 2.0T THIS WILL NOT BOLT ON TO THE FACTORY Genesis 2.0t TURBO MANIFOLD
Legal only for use in competition vehicles which may never be registered, licensed, and/or used on public streets or highways; and also for use in other exempted vehicles.
