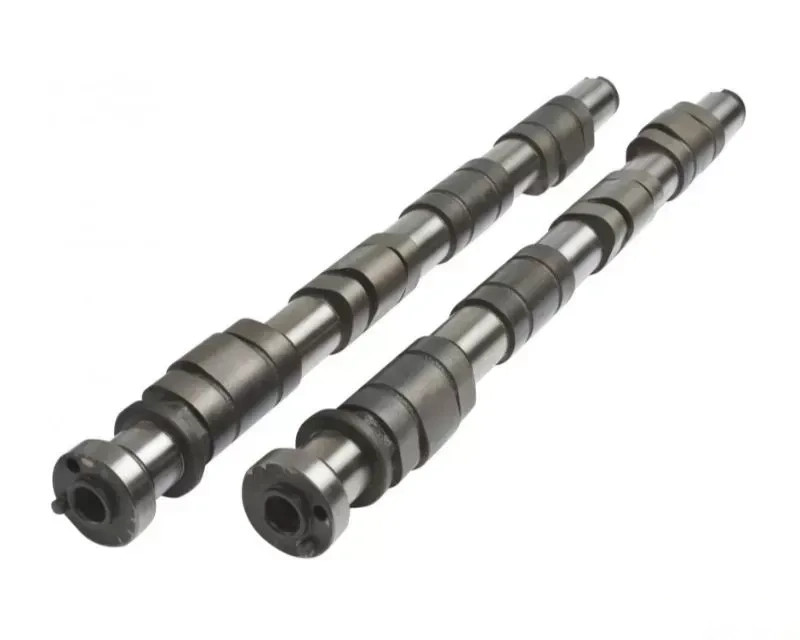

Kelford 184-C4 Camshaft Specifications

The Kelford 184-C4 camshaft is engineered specifically for Nissan SR20VE engines, making it an excellent choice for track and drag racing applications. This camshaft features a thoughtfully designed profile that enhances midrange power transition onto the high lobes, delivering improved performance where it counts.

Technical Details

• Primary Lobe Specification: 260/252 Degrees advertised duration
• Lift: 10.20mm for both low lobes
• High Lobe Duration: 314/312 Degrees advertised duration
• Lift: 12.50mm (high lobe) / 11.80mm (low lobe)

Fitment

The Kelford 184-C4 is compatible with the following Nissan models:

• Nissan Pulsar VZ-R (1989-2002)
• Nissan Lucino VZ-R (1989-2002)
• Nissan Sunny VZ-R (1989-2002)
• Nissan Primera (1997-2003)
• Nissan Bluebird (1997-2000)
• Nissan Wingroad (1997-2000)

Installation Notes

When installing the Kelford 184-C4 camshaft, ensure that your engine is properly prepared for the increased lift and duration. It is recommended to use upgraded valve springs to handle the enhanced performance characteristics and prevent valve float at higher RPMs.
