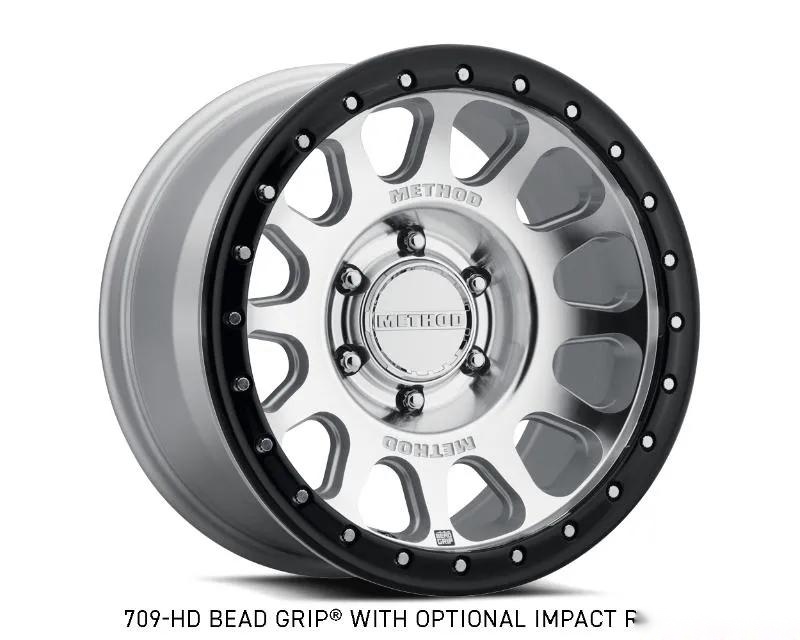

Introducing the 709 HD Bead Grip® from Method.
Designed to deliver on both strength and style, this wheel features our patented Bead Grip® technology to keep tires secure under extreme aired-down conditions. With ultra heavy-duty load ratings across all applications, the 709 HD is built to handle whatever you throw at it, on or off the road.

For added lip protection and a customized look, the optional Forged Impact Ring (sold separately) bolts on with included 12-point hardware. Performance meets personality, backed by Method's signature design and industry best warranty.

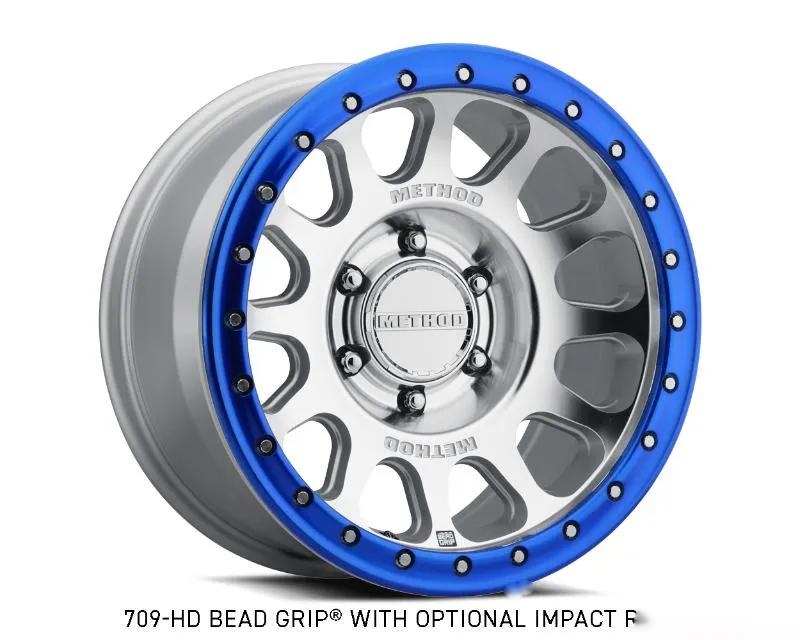

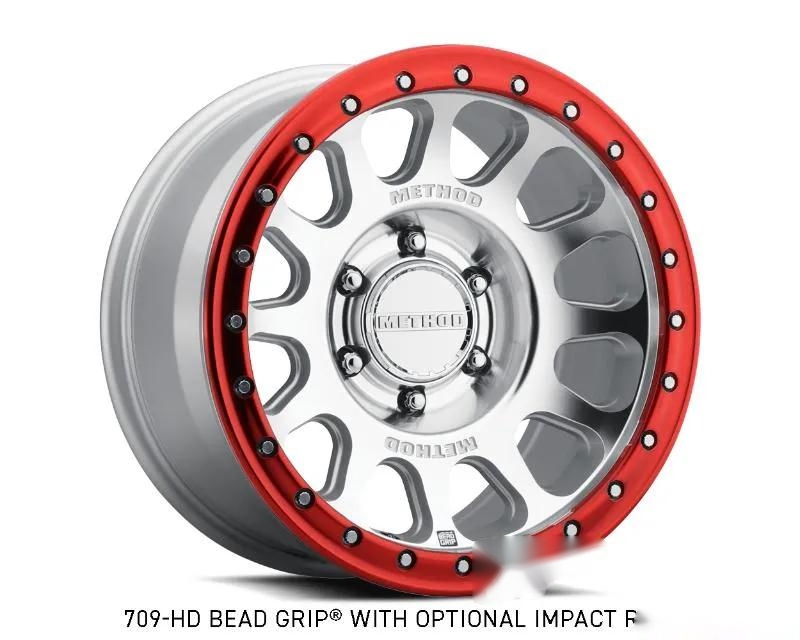

Add Rugged Protection and Custom Style to Your 709-HD Bead Grip® Wheels
Designed to seamlessly integrate with the 709-HD Bead Grip® wheel, Forged Impact Rings protect the lip of your wheel while adding options for personalization. Available in 3 color finishes or a raw machined ready for custom paint. Use existing 12pt lip bolts that come installed on the 709 wheel for easy installation.


Features:

• 709 HD Bead Grip Feature:
  • Patented Bead Grip® technology engages tire bead for increased grip at low tire pressures
  • Solid A356 aluminum with T6 heat treatment construction
  • Iconic 12 window design with debossed Method logos
  • Replaceable 12-point lip bolts with optional colors available
  • Optional Forged Impact Rings available in raw and additional colors
  • Aggressive safety hump on bead seats further prevents debeading
  • Reinforced inner lip taken from MRW race wheel increases strength
  • New Black or Chrome Snap-in center cap with embossed Method logo ? including 8 lug
  • Hub centric fitments for common applications
  • Industry?s best lifetime structural warranty
  • Heavy Duty (HD) 3310 lbs. and 4500 lbs. load ratings for maximum payload
• 709 Forged Impact Ring Feature:
  • Sold as single unit
  • Forged 6061-T6 aluminum construction
  • Use existing 12pt lip bolts on 709 wheel ? no additional hardware needed
  • This is Not a true beadlock ring
  • Impact rings and 12pt lip bolts are not cross-compatible with other beadlocks or hardware kits

Specifications:

• Wheel Diameter - (In):18
• Wheel Width (In):9
• Bolt Pattern: 8x170
• Bolt Hole:8
• Bolt Diameter 170
• Offset (mm):12
• Backside Spacing (In):5
• ATV Offset B+F:N/A
• Hub Bore (mm):125
• Wheel Weight (Lbs):38.1399713579838
• Max Load (Lbs):4500
• Color/Finish:Machined Clear Coat
• Application:18x9, 8x170, 12 OS, 4500 lbs
• Cap Part:CP-MRWBG133H50-C
• Cap Type:Snap In
• Hub Centric Yes/No:N/A
• Hub Centric Ring P/N:N/A
• Hub Ring Bore (mm):N/A
• Lug Hole Diameter (mm):16.2
• Lug Taper Angle:60
• Mount Pad Diameter (mm)200
• Spoke Depth At 90mm:0
• Spoke Depth At 100mm:0
• Spoke Depth At 120mm:30.2
• Spoke Depth At 160mm:48.7
• Inner Wheel Radius At 50mm:216.9
• Inner Wheel Radius:220.8
• Cap Bore (mm):125
• Cap Clearance Height (mm) (First Obstruction):102
• Cap Clearance Height (mm) (End Of Cap):102
• Lip Size (mm):22
• Lip Size (In):0.87
• CBM:0.0873758070000002
• Pallet Quantity:36
• County Of Origin:China
