Reduce the restriction and add more volume to the flow of charged air in your 2016-2018 Ford Focus RS with the Mishimoto Performance Intercooler Piping kit. We have combined the power of our hot side and cold-side kits to give you the best airways to and from the intercooler in your Focus RS. Our cold-side pipe is a single section of durable 5-ply silicone, eliminating the need for additional couplers. The improved design is flexible enough to make installation a breeze, and is reinforced with steel wire to stand up to the same abuse as Its aluminum counterpart. We have also increased the inner diameter of the cold-side pipe, equating to a 31 percent increase in internal volume and a 46 percent increase in flow over the stock piping. Our cold-side piping is available in black and its full potential is unlocked when combined with our hot side kit. Since the hot side has more distance to travel, we incorporated a specially designed aluminum mid-section and united it with a pair of dependable silicone couplers, all to make sure your Mk.III RS keeps every precious PSI of boost contained in the system. On top of increasing the diameter to 2.5 inches, our hot side piping is designed specifically to direct airflow to the front PTU cooler that would be blocked by a traditional piping design. Our air diverting hot side pipe includes wire-reinforced, 5-ply silicone couplers to ensure a secure connection to the turbo and intercooler The Mishimoto Performance Intercooler Piping Kit is available in black and includes all the hardware needed for a fortified and direct fitment to your 2016-2018 Ford Focus RS. As with all our products, this kit also includes the Mishimoto Lifetime Warranty.

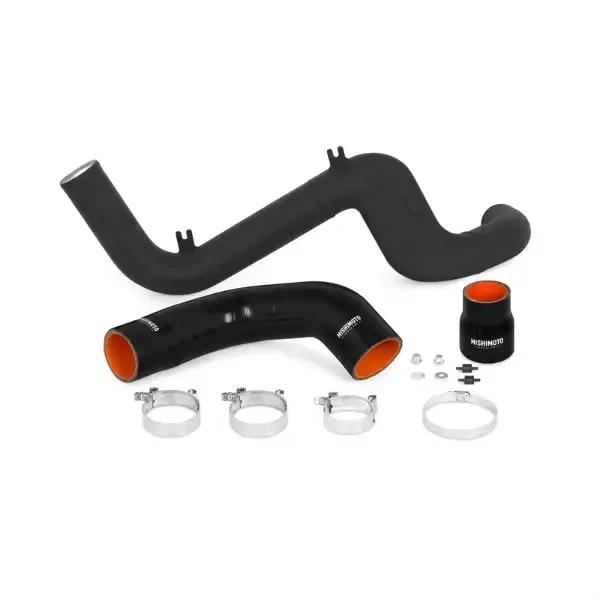

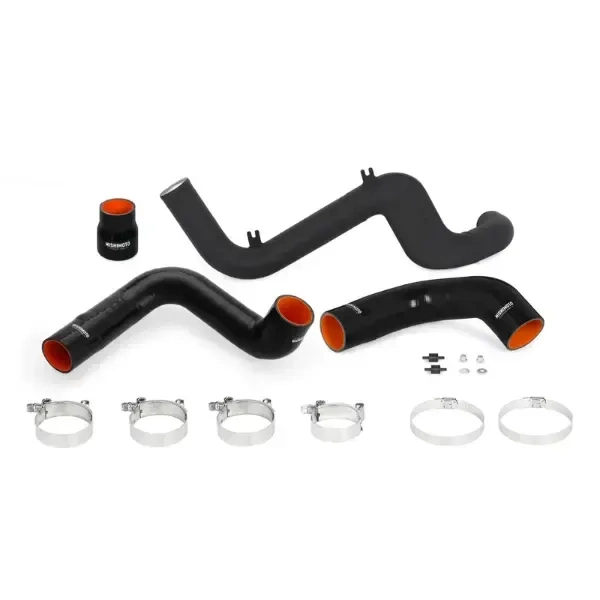

Purchase Includes:

• (1) Hot-side Intercooler Pipe
• (2) Silicone Couplers

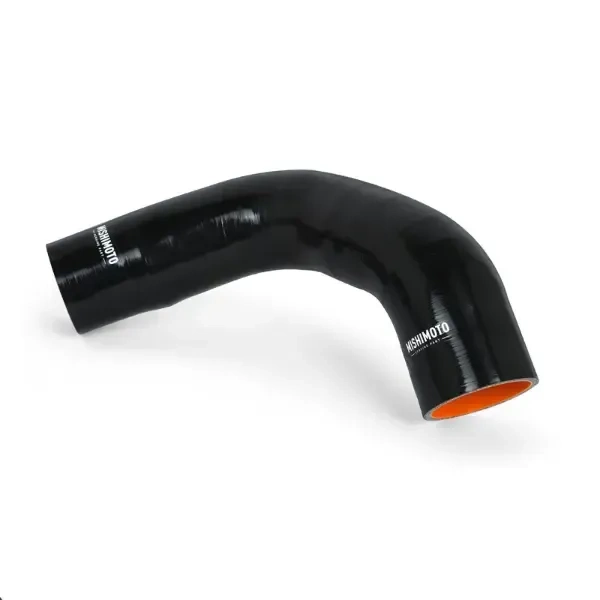

• (1) Wire-reinforced Silicone Hose
• (4) T-bolt clamps
• (2) High-Torque Worm Gear Clamps
• Mishimoto Lifetime Warranty

Features:

• 31 percent and 40 percent increase in internal volume compared to stock cold-side and hot-side pipe, respectively
• 46 percent and 45 percent less pressure drop than stock cold-side and hot-side pipe, respectively
• Direct fit for the 2016-2018 Ford Focus RS
• Fits both stock and Mishimoto Focus RS intercooler
• Mishimoto Lifetime Warranty

Specifications:

• Vehicle Specifications:
  • Chassis Codes: C346
  • Engine Codes: 2.3L EcoBoost GTDi I4

Fitment:

• Ford Focus RS 2016-2018

Note:

• 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
