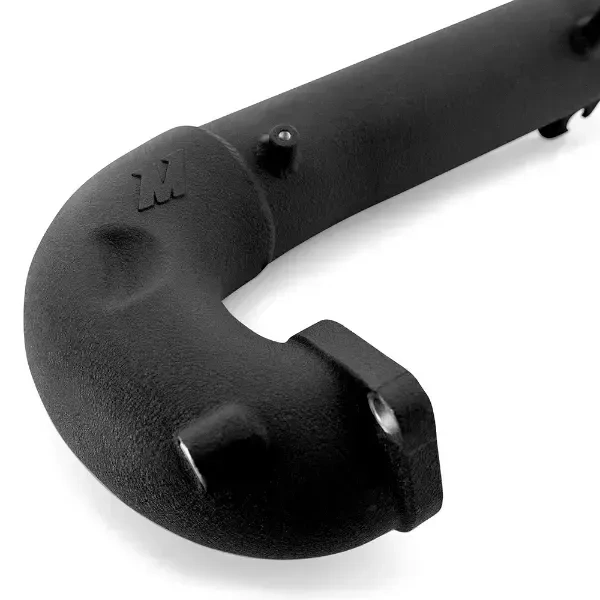

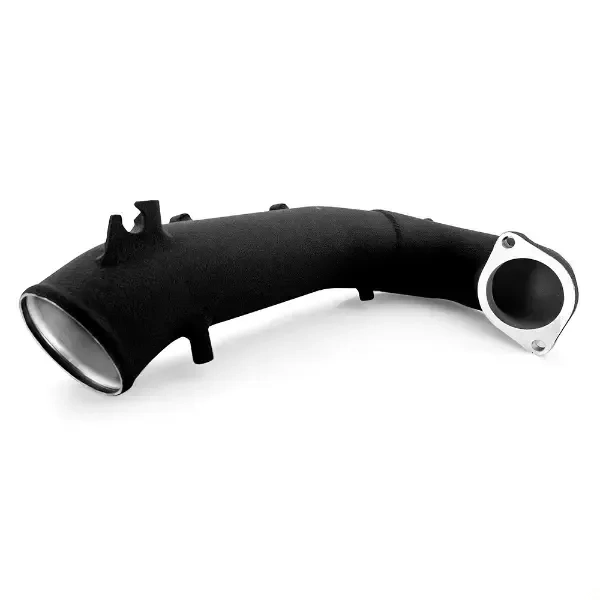

Helping your engine breathe better is a great way to extract maximum performance for a small investment. In addition, intake/exhaust modifications are fantastic steppingstones that provide even greater benefits as you begin to upgrade other systems of your vehicle. Following the release of our Performance Intake for the 2017-2021 Civic Type R, our engineering team found another aspect of the induction system that could benefit from innovation. The stock turbo inlet pipe is a very sturdy cast-aluminum component That'supplies ample airflow for stock and lightly modified vehicles. Despite this the internal pathway leaves room for improvement for those seeking maximum airflow. Using the latest in 3D printing, CAD modeling, and flow bench technology, we created an optimal pathway for airflow from the air intake box to the turbocharger. These enhancements result in an inlet pipe that is 16.7 percent less restrictive than the stock unit. Our 2017-2021 Civic Type R turbo inlet tube is constructed with a robust CNC-machined cast-aluminum turbo compressor inlet connection flange. This mating surface is designed to OEM specifications, providing a perfecT-bolt-on fit. The upper portion of the tube is fabricated from mandrel-bent aluminum piping, which is professionally TIG Welded to the cast lower. This kit includes a 4-ply silicone coupler to mate the Mishimoto Performance Intake MAF housing with our new inlet tube, as well as high-quality stainless steel worm-gear clamps and an EVAP hose adapter flange to make installation a breeze. We offer the option of either red or black powder-coated finish, providing an excellent aesthetic upgrade for your engine bay. As with all our products, this Inlet Pipe Upgrade Kit includes our signature Mishimoto Lifetime Warranty.

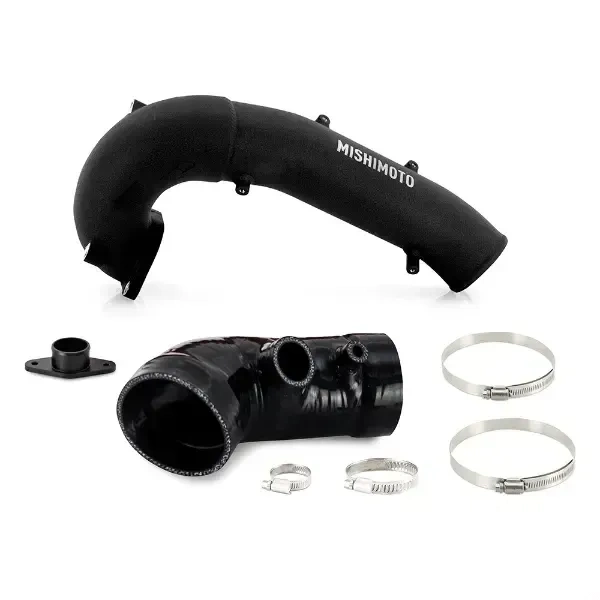

Purchase Includes:

• (1) Rotational-Molded Airbox
• (1) Intake Tube Grommet
• (1) Intake MAF Housing
• (1) Inlet Pipe Silicone Coupler
• (1) Aluminum Turbocharger Inlet Pipe
• (1) High-Flow Oiled Air Filter
• (3) Worm-Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• 16.7% less restrictive than the stock inlet pipe
• Bead-rolled pipe ensures a leak-free seal
• CNC-machined EVAP hose flange
• Durable micro-wrinkle powder-coated finis available in black or red
• Fits 2017-2021 Honda Civic Type R with Mishimoto Performance Intake
• Includes stainless-steel worm gear clamps for installation
• Larger diameter inlet pipe reduces pre-turbo air restriction to improve spool
• Mishimoto Lifetime Warranty
• Precision CNC-machined cast-aluminum turbo inlet connection

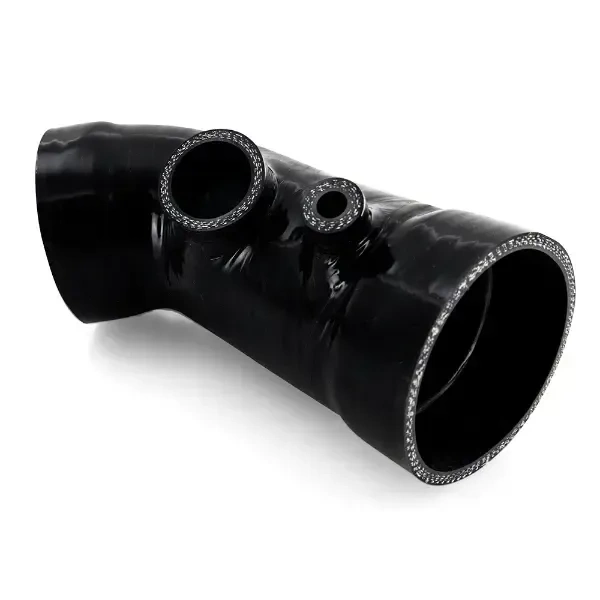

• Robust 4-ply silicone inlet coupler adapts MAF housing to the larger diameter inlet pipe

Specifications:

• Color: Black
• Label: Black
• Air Filter Part Number: MMAF-37562S
• Vehicle Specifications:
  • Chassis Codes: FK8
  • Engine Codes: K20C1

Fitment:

• Honda Civic Type R I4 (2.0L) 2017-2021
• Honda Civic Type R Limited Edition I4 (2.0L) 2021

Note:

• Due to the substantial increase in airflow and larger diameter MAF housing, ECU tuning is required for the installation of this product. Horsepower and torque gains are dependent on other modifications, fuel type, and the ECU tune.
