Designed for applications that demand the greatest airflow and cooling capabilities, this Mishimoto WRX Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. This intercooler features a large 28in core that provides maximum cooling without excessive pressure drop that will wear out any turbocharger over time. The Mishimoto WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter mile. The Mishimoto Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot side pipes are 2.25inin in diameter to keep airflow velocities high, giving your car an instant responseithout excessive throttle lag that plagues many front-mount intercooler designs. The hot side pipe also features a CNC-machined flange for a leak free connection to the turbo. The cold side of the system features 2.5" to 2.75" mandrel-bent aluminum tubing for maximum airflow, and to match the diameter of your throttle body. This 2015 WRX front-mount intercooler kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler The kit includes all necessary mounting brackets and couplers, including a new bracket for the air intake. Like all Mishimoto products, this WRX front-mount intercooler is backed by our Mishimoto Lifetime Warranty.

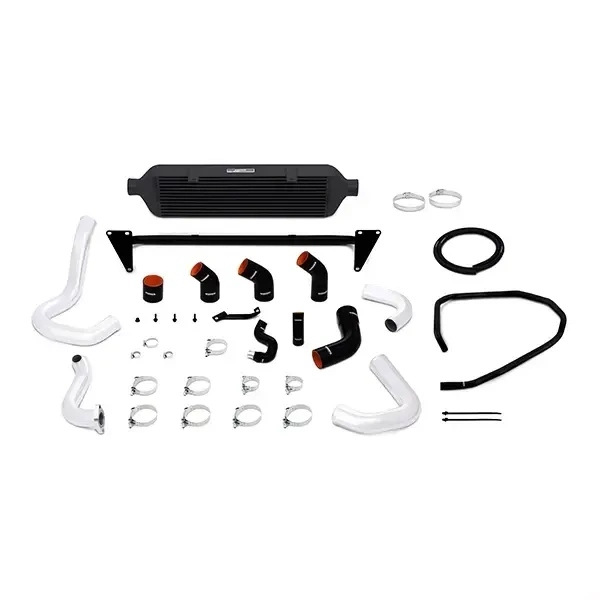

Purchase Includes:

• (1) Bar-and-Plate Intercooler
• (1) Steel Crash Bar w/ Mounting Hardware
• (2) Hot-Side Intercooler Pipes
• (2) Cold-Side Intercooler Pipes
• (1) Air Intake Bracket
• (1) 2.2545-degree Coupler
• (1) 2.25to 2.75"5-degree Transition Coupler
• (1) 2.5 o 2.75"5 -degree Transition Coupler
• (1) 2.5 o 2.75"5 -degree Transition Coupler
• (1) 3.00Straight Coupler
• (1) BPV Recirculation Hose
• (1) BPV Vacuum Hose
• (1) 30-45mm Worm Gear Clamp
• (2) 1.75T-bolt Clamps
• (3) 2.5 -bolt Clamps
• (2) 2.75"-bolt Clamps
• (5) 3T-bolt Clamps
• Mishimoto Lifetime Warranty

Features:

• 3.5" Thick intercooler design optimized for maximum flow
• CARB EO #: D-759
• Designed to work with Mishimoto Performance Air Intake and stock intake
• Direct fit for the 2015-2021 Subaru WRX
• Includes all necessary couplers, brackets, and accessories
• Includes black powder-coated steel, tubular crash bar
• Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
• Mishimoto Lifetime Warranty
• No modification to front bumper and retains stock fog lights
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Smooth cast end tanks allow the best possible airflow in and out of the intercooler

Specifications:

• Label: Black
• Core Height (in): 8.05
• Core Length (in): 28
• Core Thickness (in): 3.5
• Core Type: Bar-and-Plate
• Inlet (in): 2.45
• Maximum Recommended Boost Pressure (PSI): 30
• Maximum Recommended Horsepower: 600
• Outlet (in): 2.75
• Overall Height (in): 8.6
• Overall Length (in): 37.7
• Overall Width (in): 5.4
• Vehicle Specifications:
  • Chassis Codes: VA
  • Engine Codes: FA20DIT

Fitment:

• Subaru WRX Premium 2015-2021
• Subaru WRX Limited 2015-2021
• Subaru WRX STI 2015-2016
• Subaru WRX Base 2015-2021
• Subaru WRX Sport-tech 2017-2021
• Subaru WRX Sport 2017-2021
• Subaru WRX 6 Man 2018-2021
• Subaru WRX CVT 2018-2021
• Subaru WRX Raui Edition 2019
• Subaru WRX Sport-tech RS 2019-2020
• Subaru WRX EyeSight 2021
