For 2022+ WRX owners looking to take the next step in performance, look no further than Mishimoto's Performance Front-Mount Intercooler Kit. Whether you're building your WRX for the track, dragstrip, or the road, upgrading your WRX's intercooler is an absolute must. Designed with a massive core, CFD-optimized cast end tanks, and high-flow pipes, this intercooler offers gains of 12 hp and 11.8 lb-ft torque. The front mounting location of this kit places the intercooler in the lower bumper grille for maximum airflow through the core, making this system ideal for high-performance builds. In dyno testing, our intercooler was able to bring outlet temperatures to within 10-degrees of ambient air temp, ensuring safe power run after run, even on the stock tune. CFD-optimized end tanks, ID-matched pipes, and a high-flow, 4 inch-thick core result in a 1.5 PSI pressure drop, so less of the boost your turbo makes is wasted. Performance is great, but if you have to destroy your car for it, it's useless. Our kit contains everything needed for installation with no cutting of the bumper or body required. Our intercooler kit also retains the factory side impact bars and includes a bumper support bar with factory tow hook mounting for safety on the track and the street. The included washer fill neck relocation kit keeps maintenance easy, while allowing for a clean install. So, If you're ready to ditch your stock, heat-soak-prone intercooler it's time to upgrade to the Mishimoto Performance Front Mount Intercooler Kit. Designed for dependable performance and backed by Mishimoto's Lifetime Warranty, our 2022+ WRX front mount intercooler kit is the perfect choice for bringing your WRX to the next level.

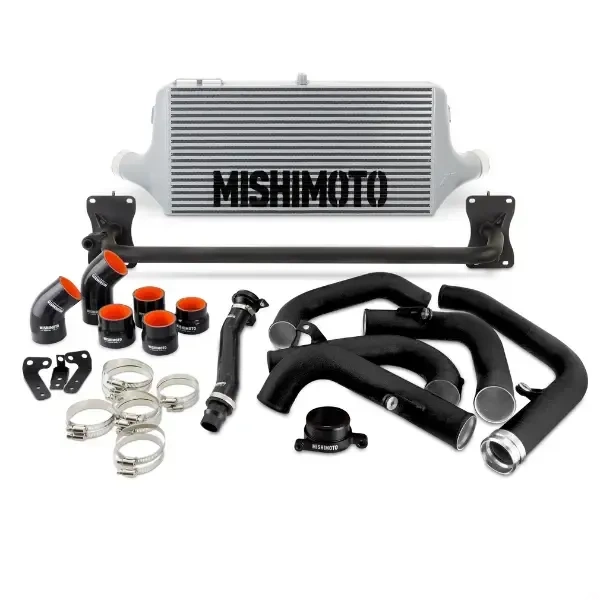

Purchase Includes:

• (1) Front Mount Intercooler
• (1) Pipe and Boot Kit with Adaptors
• (1) Bumper Support Bar
• (1) Washer Fluid Fill Neck Relocation
• Mishimoto Lifetime Warranty

Installation Guide


Specifications:

• Core Height (in): 12.14
• Core Length (in): 26.57
• Core Thickness (in): 3.93
• Core Type: Bar-and-Plate
• Inlet (in): 2.4
• Maximum Recommended Boost Pressure (PSI): 60
• Maximum Recommended Horsepower: 1000
• Outlet (in): 2.4
• Overall Height (in): 12.89 (intercooler)
• Overall Length (in): 40.22 (intercooler)
• Overall Width (in): 6 (intercooler)
• Pipe Diameter: 2.5
• Vehicle Specifications:
  • Chassis Codes: VB
  • Engine Codes: FA24F

Fitment:

• Subaru WRX Sport 2022-2024
• Subaru WRX Base 2022-2024
• Subaru WRX Premium 2022-2024
• Subaru WRX GT 2022-2024
• Subaru WRX Sport-tech 2022-2024
• Subaru WRX Limited 2022-2024
