Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this Fiesta ST intercooler weighing the benefIts and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51 percent larger than stock, and also provides a 25 percent increase in internal core volume. During testing, this Fiesta ST intercooler dropped intake temperatures by a huge 26 F! This Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The Mishimoto Fiesta ST cold-side intercooler pipe features a CNC-machined sensor flange for the stock pressure sensor, a port for meth injection or a boost gauge, and a silicone hose and CNC plug to allow deletion of the stock sound symposer system. Mishimotos Fiesta ST intercooler piping features durable silicone couplers and stainless steel T-bolt clamps for reliable holding power when you're hitting full boost on a long straight. The all-aluminum, TIG-Welded construction is of the highest quality, and like all Mishimoto Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!

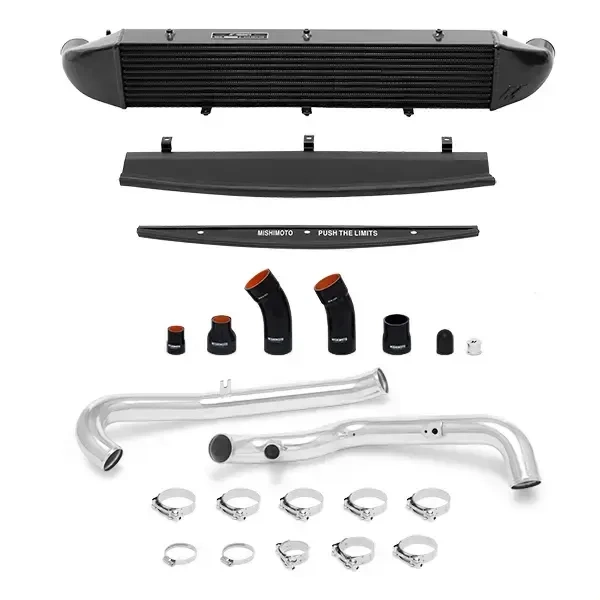

Purchase Includes:

• (1) Mishimoto Intercooler
• (1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal
• (1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal
• (1) Aluminum Pipe w/ CNC Sensor Flange
• (1) Aluminum Pipe
• (1) CNC Sound Symposer Plug
• (4) Silicone Couplers
• (1) Silicone Sound Symposer Hose
• (1) 1.75T-bolt Clamp
• (1) 2.5 -bolt Clamp
• (6) 2.75"-bolt Clamps
• (1) Mounting Hardware
• Mishimoto Lifetime Warranty

Features:

• 26 F (15 C) reduction in AIT
• 51 percent increase in core size and 25 percent increase in internal core volume
• Max Recommended Horsepower: 325 whp
• Mishimoto Lifetime Warranty
• Tube and fin construction for added weight reduction over bar and plate cores

Specifications:

• Label: Black Cooler Silver Pipes
• Core Height (in): 6.36
• Core Length (in): 40.1
• Core Thickness (in): 2.5
• Core Type: Tube-and-Fin
• Inlet (in): 2.5
• Maximum Recommended Boost Pressure (PSI): 40
• Maximum Recommended Horsepower: 325
• Outlet (in): 2.5
• Overall Height (in): 6.36
• Overall Length (in): 40.1
• Overall Width (in): 6.15
• Weight (lbs): 13.4
• Vehicle Specifications:
  • Chassis Codes: B3
  • Engine Codes: 1.6L Ecoboost

Fitment:

• Ford Fiesta ST 2014-2019
